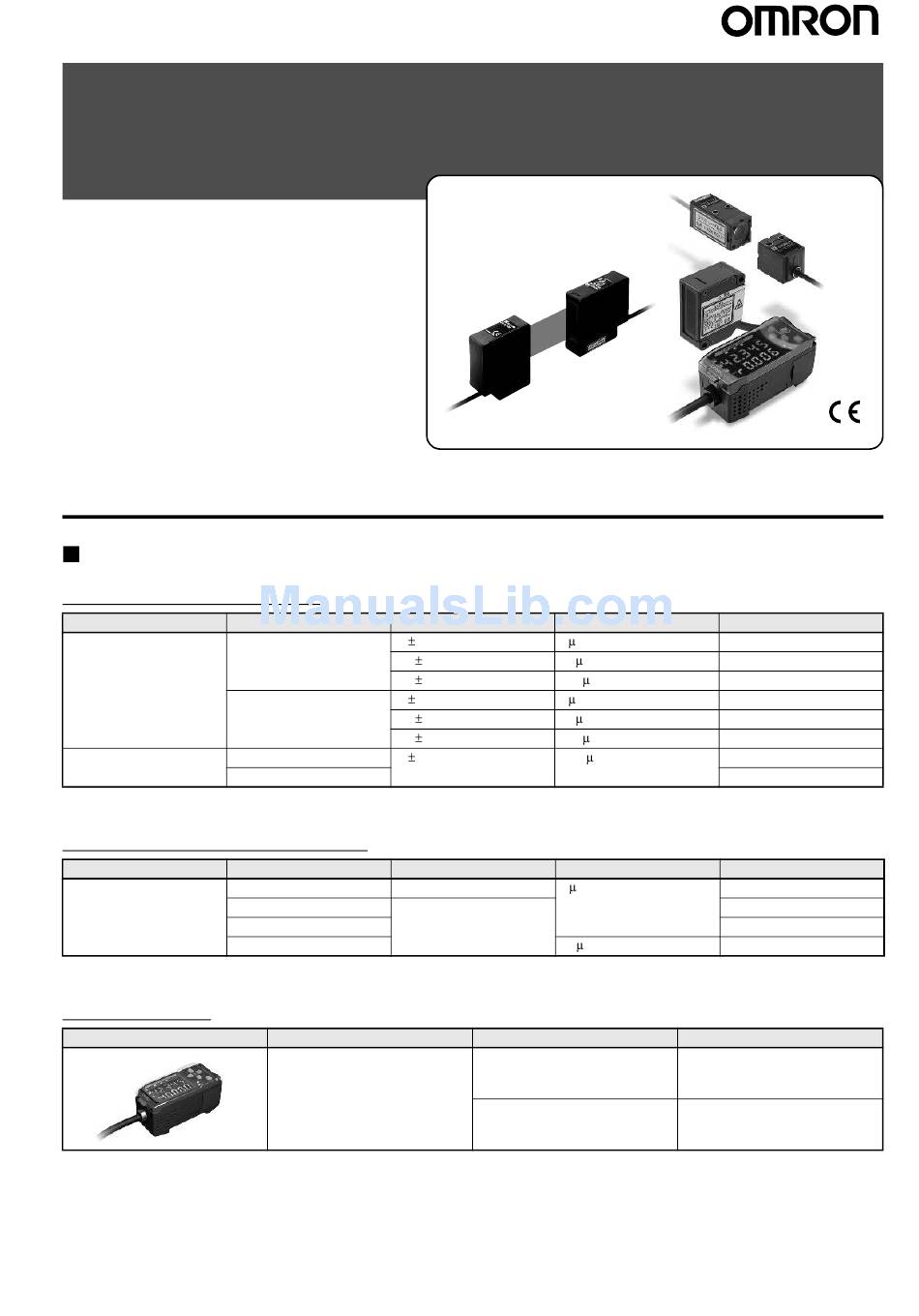

User Manual
Smart Sensors (Laser Type)
ZX Series (ZX-L-N)
Ordering Information
Sensors
Sensor Heads (Reflective)
Optical system
Diffuse reflective
Spot beam
Line beam
Regular reflective
Spot beam
Line beam
*1. For an average count of 4,096.
Sensor Heads (Through-beam)
Optical system
Through-beam
1-mm dia.
5 mm
10 mm
30 mm
*1. For an average count of 64.
Amplifier Units
Appearance
Note: Compatible connection with the Sensor Head.
Beam shape
Sensing distance
40 10 mm
100 40 mm
300 200 mm
40 10 mm
100 40 mm
300 200 mm
30 2 mm
Measuring width
Sensing distance
0 to 2000 mm
0 to 500 mm
Power supply
DC
ZX Series (ZX-L-N)
Resolution*1
2 m
16 m
300 m
2 m
16 m
300 m
0.25 m
Resolution*1
4 m
12 m
Output type
NPN
PNP
Smart Sensors (Laser Type)
Model
ZX-LD40
ZX-LD100
ZX-LD300
ZX-LD40L
ZX-LD100L
ZX-LD300L
ZX-LD30V
ZX-LD30VL
Model
ZX-LT001
ZX-LT005
ZX-LT010
ZX-LT030
Model
ZX-LDA11-N
ZX-LDA41-N
.
1
Advertisement
Table of Contents
Related Manuals for Omron ZX
Summary of Contents for Omron ZX
-
Page 1: Ordering Information
300 m ZX-LD300L Regular reflective Spot beam 30 2 mm 0.25 m ZX-LD30V Line beam ZX-LD30VL *1. For an average count of 4,096. Sensor Heads (Through-beam) Optical system Measuring width Sensing distance Resolution*1 Model Through-beam 1-mm dia. 0 to 2000 mm... - Page 2 ZX-LT010 ZX-XF22 SFW11EV3 or the ZX-SW11EV3 SmartMonitor must be used. Earlier ver- sions cannot be used. *2. The ZX-SFW11EV3 SmartMonitor can be used only to set functions and monitor waveforms. Cables with Connectors on Both Ends (for Extension)*1 Cable length...
-
Page 3: Specifications
*2. Resolution: The resolution is the deviation ( 3 ) in the linear output when connected to the ZX-LDA Amplifier Unit. (The resolution is measured with the standard reference object (white ceramic), at the measurement point with the ZX-LDA set for an average count of 4,096 per period.) - Page 4 *2. For an average count of 64. The value is 5 m for an average count of 32. This is the value that results when a minimum sensing object blocks the light near the center of the 1-mm measurement width.
-
Page 5: Amplifier Units
(average count setting + 1) (with fixed sensitivity). *2. The output can be switched between a current output and voltage output using a switch on the bottom of the Amplifier Unit. *3. Setting is possible via the monitor focus function. -
Page 6: Calculating Unit
Insulation resistance 100 M (at 500 VDC) Vibration resistance (destructive) 10 to 150 Hz, 0.7-mm double amplitude 80 min each in X, Y, and Z directions Shock resistance (destructive) 300 m/s 3 times each in six directions (up/down, left/right, forward/backward) -
Page 7: Engineering Data (Typical)
Engineering Data (Typical) Angle Characteristic (Reflective Sensors) The angle characteristic plots the relation between the inclination of the measurement object and the error in the linear output at the measure- ment point. Note: SUS304 = Stainless steel SUS304 ZX-LD100 ZX-LD300... - Page 8 White ceramic White ceramic SUS304 SUS304 Black paper Black paper + inclination + inclination inclination inclination Angle of inclination ( ) Angle of inclination ( ) Front-to-back Inclination Front-to-back Inclination White ceramic White ceramic SUS304 SUS304 Black paper Black paper...
- Page 9 Linearity Characteristic for Different Materials (Reflective Sensors) ZX-LD40 10 Inclination 10 Inclination Front-to-back 0 Inclination White ceramic White ceramic White ceramic SUS304 SUS304 SUS304 Black paper Black paper Black paper 0 inclination 10 inclination 10 inclination 48 50 48 50...
- Page 10 10 inclination 10 inclination 0 inclination 28.0 28.4 28.8 29.2 29.6 30.0 30.4 30.8 31.2 31.6 32.0 28.0 28.4 28.8 29.2 29.6 30.0 30.4 30.8 31.2 31.6 32.0 28.0 28.4 28.8 29.2 29.6 30.0 30.4 30.8 31.2 31.6 32.0 Distance (mm)
- Page 11 140 mm 2,000 m 2,000 m 2,000 m 410 m 100 m 430 m ZX-LD300L 100 mm 300 mm 500 mm 2,000 m 2,000 m 2,500 m 750 m 300 m 650 m ZX Series (ZX-L-N) Smart Sensors (Laser Type)
- Page 12 Sensing Object Characteristics (Through-beam Sensors) ZX-LT001 ZX-LT001 ZX-LT005 (For 0.02-mm-dia. pin gauge) (For 0.05-mm-dia. pin gauge) (For 0.05-mm-dia. pin gauge) WD=50 mm WD=250 mm WD=450 mm Sensing distance: 500 mm Sensing object: 0.05-mm dia. WD=50 mm WD=200 mm WD=250 mm...
- Page 13 Linear Output vs. Sensing Distance The output can be switched between a current output and a voltage output using a switch on the Amplifier Unit. ZX-LD40/LD40L Voltage Output Current Output Linear output (V) Linear output (mA) Distance (mm) Distance (mm)
-
Page 14: I/O Circuit Diagrams
Unit. (Do not allow wiring, particularly the linear output, to come into contact with other lines.) 3. Use the 0-V line (blue) for the power supply and use the shield wire (linear output ground) together with the linear output (black line) for linear output. -
Page 15: Part Names
Input cable (with connector) Receiver Output cable (Optical filter) Connector (Cover opens and closes.) Output cable (with connector) *The dimensions for these models are slightly different. Refer to page 23 for details. Sensor Heads (Through-beam) Calculating Unit ZX-LT001 ZX-CAL2 ZX-LT005 ZX-LT010... -
Page 16: Design Precautions
Incorrect wiring may result in damage to the Sensor or Unit. • The total length of the Sensor cable or Amplifier cable must be 10 m or less. Use an ZX-XC@A Extension Cable (order separately) if re- quired to extend the cable from the Sensor. -
Page 17: Laser Safety
If a mirror or shiny surface is positioned in the laser beam path, ensure that the reflected beam path is also terminated. If the Unit must be used without terminating the laser beam path, position the laser beam path so that it is not at eye level. - Page 18 2. AEL: Accessible Emission Limit The maximum accessible emission level permitted within a particular class. For your reference, see ANSI Z136.1-1993, Section 2. Symbol and border: black Background: yellow Figure A Warning label - Hazard symbol Legend and border: black...
- Page 19 (see note 2) Safety interlock R (see notes 3, 4) R (see notes 3, 4) R (see notes 3, 4) R (see notes 3, 4) R (see notes 3, 4) R (see notes 3, 4) Location of controls Viewing optics...
-
Page 20: Use Precautions
*With respect to the requirements of remote interlock connector, key control, beam attenuator, and emission indicator, Class 3B laser products not exceeding five times the AEL of Class 2 in the wavelength range of 400 nm to 700 nm are to be treated as Class 3A laser products. -
Page 21: Laser Product Classifications
Class 3A Lasers which are safe for viewing with the unaided eye. For laser emitting in the wavelength range from 400 nm to 700 nm, protection is afforded by aversion responses including the blink reflex. For other wavelengths the hazard to the unaided eye is no greater than for Class 1. - Page 22 Label Indications EN/IEC warning label Laser warning label Explanatory label with specified wording Note: Use of controls, adjustments, or procedures other than those specified herein may result in hazardous radiation exposure. Aperture Label Class II Caution logo type Certification and...
- Page 23 Connector 15 dia. Vinyl-insulated round cable, 5.1 dia., Standard: 500 mm ZX-LD40L: L = 40 mm, A = 23 ZX-LD10L: L = 100 mm, A = 11 ZX-LD30L: L = 300 mm, A = 3.8 Sensor Heads (Regular Reflective) ZX-LD30V...
- Page 24 Emitter Receiver ZX-LT005 Two, 3.2 dia. Two, 3.2 dia. Vinyl-insulated round Vinyl-insulated round cable (black), cable (gray), 2.6 dia., 2.6 dia., Standard: 500 mm Standard: 500 mm Connector Connector Laser ON indicator Light axis center Light axis center Mounting Holes...
- Page 25 ZX-LDA41-N 64.3 31.5 15.5 dia. 15.8 13.2 36.8 Vinyl-insulated round cable, 5.23 dia. Vinyl-insulated round cable, 5.2 dia. (conductor Standard: 100 mm cross-section: 0.09 mm , 10-conductor insulator diameter: 0.7 mm), Standard: 2 m 11.7 11.7 Current/voltage output selector switch...
- Page 26 Accessories (Order Separately) Calculating Unit Operation Connectors 24.9 indicators ZX-CAL2 19.5 15.1 54.9 44.05 14.4 36.7 Side-view Attachments ZX-XF12 Light axis center Two, 2.2 dia. 10.6 ZX-XF22 Light axis center Two, 2.2 dia. Seal ZX Series (ZX-L-N) Smart Sensors (Laser Type)
- Page 27 ZX-series Communications Interface Unit ZX-SF11 Coupling connector Sensor communications indicator (communications operation) Sensor communications indicator (communications error) External terminal communications Power supply indicator indicator (communications operation) External terminal communications indicator (communications error) 64.3 (336) (46) 31.5 36.8 13.2 Vinyl-insulated round cable, 5.23 dia.
- Page 28 ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. This document provides information mainly for selecting suitable models. Please read the document Z197 carefully for information that the user must understand and accept before purchase, including information on warranty, limitations of liability, and precautions.
