Operation guide

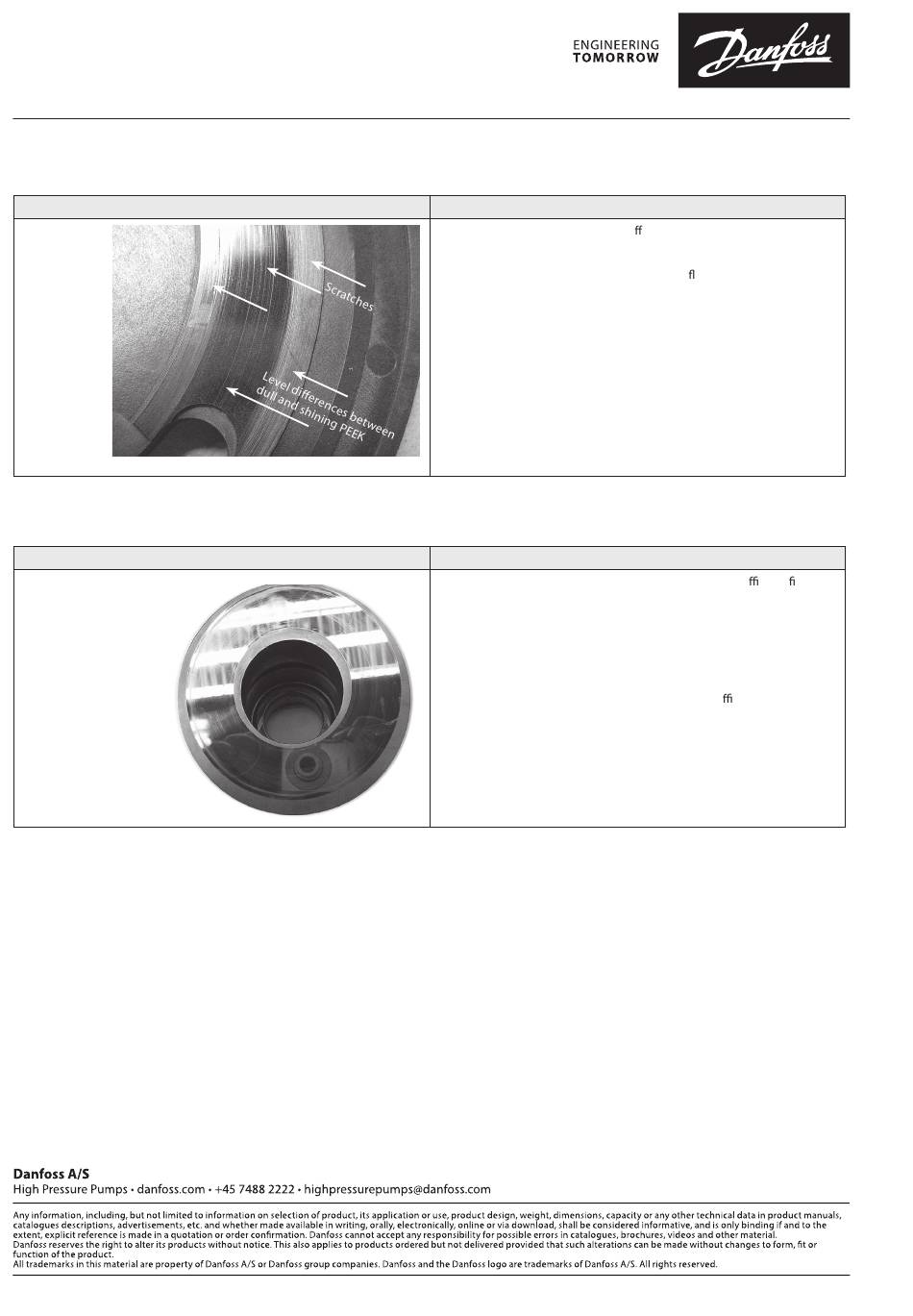

6.2 Port plate

Picture 1

6.3 Swash plate

Picture 1
74 | 180R9265 | AQ115586503035en-001003
Installation, Operation and Maintenance APP 16-22 pumps
If the port plate has scratches, level di erences or both between the arrows,
the port plate must be replaced.
Even small scratches or wear will cause loss of ow.
To check: See item 6.1, picture 3.
If the swash plate is polished 360°, it is an indication of insu cient ltration.
The surface of the swash plate must be plane and even at same level all
over. To check this, please see item 6.1, picture 3.
If the surface has any marks/scratches, it is worn/damaged and a new one
is required.
Please contact Danfoss High Pressure Pumps sales o ce for further infor-
mation.
