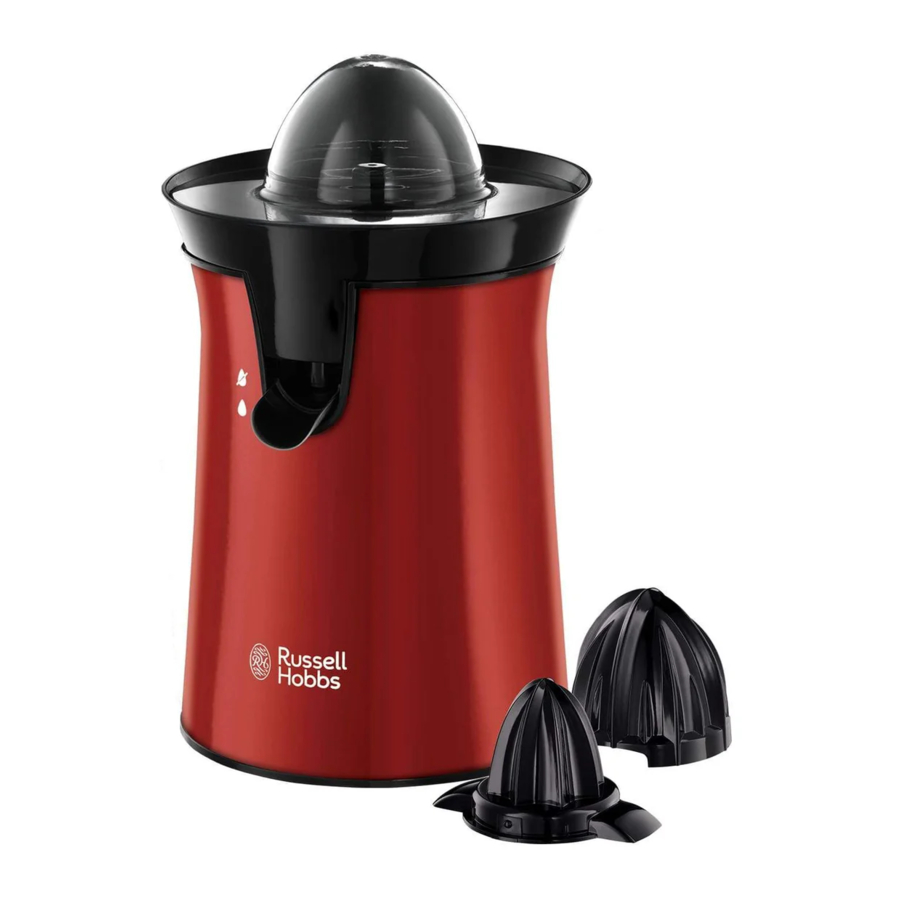

Russell Hobbs 26010-56 - Red Citrus Press Manual

PARTS

1. Cover
2. Large reamer
3. Small reamer
4. Pulp collector
5. Juice collector
6. Spout
7. Spindle
8. Motor unit

Dishwasher safe

DISMANTLING

1. Unplug the citrus press.
2. Lift the reamers off the drive shaft.
3. Grip the large reamer in one hand, and the wings of the small reamer in the other, and separate the two reamers.
4. Lift the separator off the juice collector.
5. Lift the juice collector off the motor unit.
6. Pull the drive shaft up and off the motor unit.

CARE AND MAINTENANCE

1. Unplug the citrus press.
2. Wipe outer surfaces with a damp cloth. If necessary, use a little washing-up liquid.
3. Wash the removable parts in warm soapy water, rinse well, and dry.
4. Removable parts indicated can be washed in a dishwasher.
5. The extreme environment inside the dishwasher can affect the surface finishes.
6. Don't put the citrus press in water or any other liquid.
7. Don't use harsh or abrasive cleaning agents or solvents.

ASSEMBLING

1. Unplug the citrus press.
2. Sit the motor unit on a stable, level surface.
3. Push the bottom of the drive shaft into the hexagonal hole top of the motor unit.
4. Align the spout with the space in the front of the motor unit, and lower the juice collector on top of the motor unit.
5. Lower the separator on top of the juice collector.
6. To use the large reamer, lower it on top of the small reamer, so the gaps in the bottom of the large reamer fit over the wings in the small reamer.
   1. Use the large reamer for large fruit like grapefruit and oranges.
   2. Use the small reamer for small fruit like lemons and limes.
7. Lower the reamer over the drive shaft in the centre of the citrus press.

PREPARATION

1. Use good quality, fresh, ripe, citrus fruit.
2. Wipe the fruit.
3. Turn the fruit on its side and cut in half with a sharp knife, to cut through the centres of the segments.

PRESSING

1. Plug the citrus press into the power socket.
2. Put a glass or small jug below the spout.
3. Push the spout down to open it (A).

4. Using one half-fruit at a time, place the cut (flesh) side on top of the reamer and press it down.
5. The reamer will turn, pressing the juice out of the half-fruit.
6. Move the fruit around, to ensure that the reamer reaches all of the flesh.
7. When you stop pressing, the motor will stop.
8. Do the same with the rest of your fruit.
9. Don't use the citrus press continuously for more than 2 minutes. After 2 minutes use, let it rest for 2 minutes before carrying on.
10. Keep an eye on the level in the glass/jug.
11. When it's full, stop juicing, push the spout up to close it and stop the juice flowing.
12. Remember to push the spout down to open it, when you replace the jug and start juicing again.
13. When you've finished, disassemble, clean, and store it away.
14. The cable may be stored in the area under the motor unit.

IMPORTANT SAFEGUARDS

Read the instructions, keep them safe, pass them on if you pass the appliance on. Remove all packaging before use.

Follow basic safety precautions, including:
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.
Misuse of the appliance may cause injury.
Unplug the appliance before assembly, disassembly, or cleaning.
Don't leave the appliance unattended while plugged in.
If the cable is damaged, it must be replaced by the manufacturer, its service agent, or someone similarly qualified, to avoid hazard.

Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

• Sit the motor unit on a stable, level surface.
• Keep the citrus press and the cable away from hotplates, hobs or burners.
• Store the citrus press away from direct sunlight, and, if possible, from fluorescent light.
• Don't run the motor for more than 2 minutes, or it may overheat. After 2 minutes, switch off for at least 2 minutes, to let the motor cool.
• Don't use the citrus press for any purpose other than those described in these instructions.
• Don't use the citrus press if it's damaged or malfunctions.
• If the cable is damaged, return the citrus press, in order to avoid hazard.

HOUSEHOLD USE ONLY
