ionode4 – Hardware User Guide
INTRODUCTION
ionode4 is an audio integration device with built-in firmware, processing, and I/Os. It provides 4 audio inputs, 4 audio
outputs, 4 control inputs and 4 control outputs. The device has convenient pairing capabilities and can be rack-mounted
individually, in pairs, or used as a stand-alone unit. Ionode4 is connected to your network via LAN and communicates over
the network using all contemporary audio standards such as AES67, RTP or VoIP.
This manual provides an overview of the hardware components and their functions, followed by installation and
configuration instructions.
FEATURES

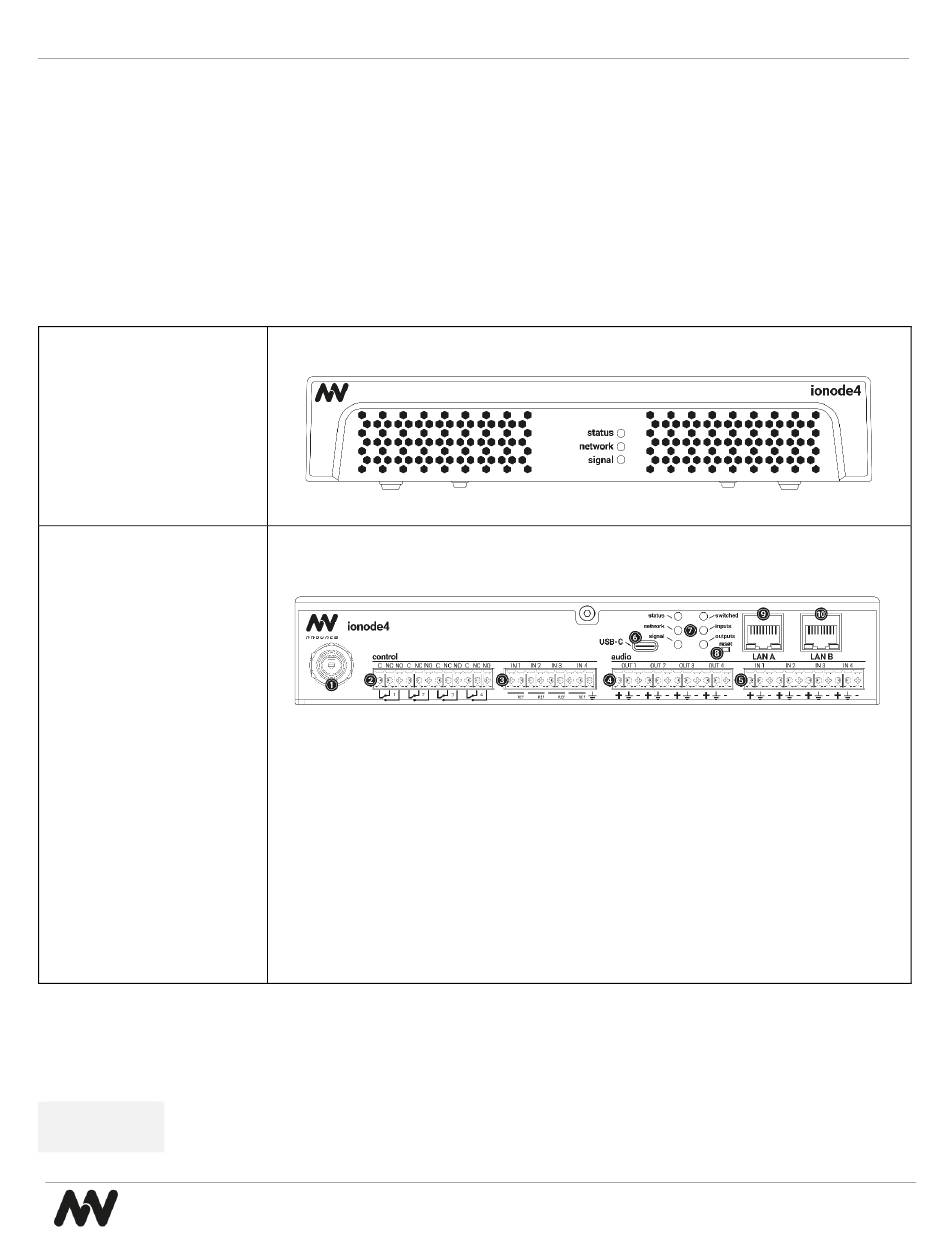

A. Front panel
The front panel has 3
control LEDs:
1. status
2. network
3. signal
B. Rear panel
1. Barrel secure jack
power connector
2. Control outputs (relay
C, NC, NO pins)
3. Supervised control
inputs (0-12 V input
tolerance, 12 Vref)
4. Balanced audio
output channels
5. Balanced audio input
channels
6. USB-C (for service
purposes, firmware
update)
7. Control LEDs
8. Reset button
9. LAN A with PoE
10. LAN B with PoE
The product sticker on the bottom of the device contains the MAC address required for device pairing.
Control LEDs
Front panel and rear panel LEDs are aligned, the description below is valid for both.
Status
Device status:
•
TM
nnounce by Simpleway
Control LEDs on the left-side from the LAN:
•
status
•
network
•
signal
•
switched
•
inputs
•
outputs
Red LED light indicates booting of the device.
