ionode4 – Hardware User Guide
NOTE: Q-SYS Designer version 9.9.0 pictures used in this manual are for illustration purposes only.
To make your device operable within the Q-SYS ecosystem, follow the steps which are described in more detail in the
chapters below:
1. Download Q-SYS plugin for ionode4,
2. Configure the plugin in Q-SYS designer,
3. Set up streams.
Q-SYS Plugin – Download & Configuration
To configure the ionode4 device, you will need to install the respective plugin for Q-SYS designer so that you can then set
up the device's properties.
IMPORTANT: Configuration from the Q-SYS designer is auto populated to the nnounce configuration UI and thus your
ionode4 device.
1. The nnounce ionode4 plugin for Q-SYS Designer can be obtained from:
a. Q-SYS d
esigner Asset Manager
b. nnounce webpage in the Download center - https://www.nnounce.com/download-center.
2. The downloaded file with the plugin should be opened upon double-click or place it on your computer in the folder:
C:\Users\username\Documents\QSC\Q-Sys Designer\Plugins
3. Open your Q-SYS designer.

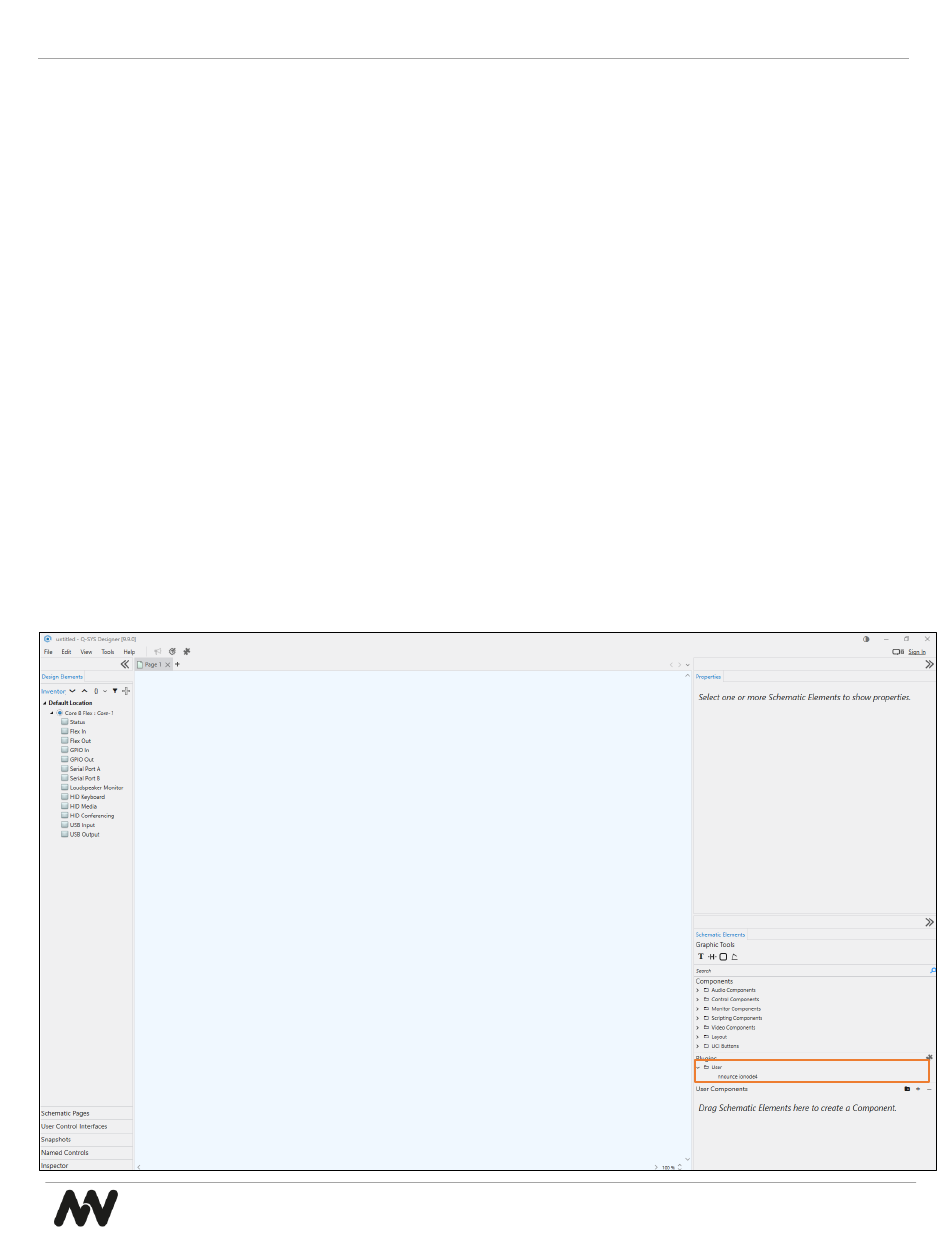

4. Find the ionode4 plugin in the right panel below and drag and drop it into your design.
