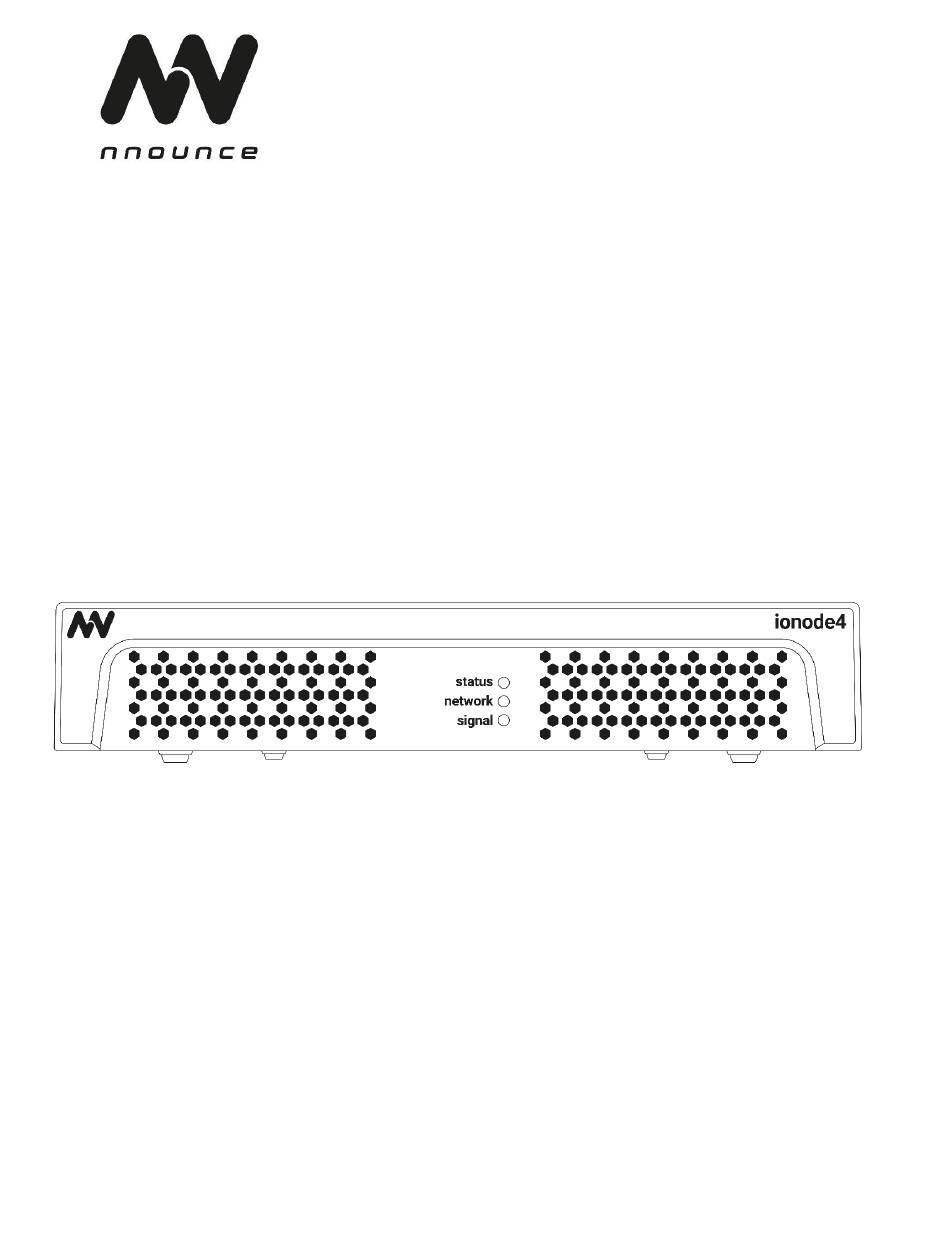

- Page 1 ARDWARE SER GUIDE ionode4 – Audio Integration Device ©Nnounce powered by Simpleway Keep this manual for future reference...
-
Page 2: Important Safety Instructions
• Operating temperature of the device - range 32°F – 122°F (0°C–50°C), storage temperature - range 14°F to 140°F (-10°C–60°C). • Power should only be supplied over IEC 10 A Connector, 100-240 VAC @ 50-60Hz. • Relative humidity range during storage: 10% to 85% humidity (non-condensing). nnounce by Simpleway... - Page 3 • ICES-003:2020-10 • EN 55032:2015 / DIN EN 55032:2015/A11:2021 Electromagnetic compatibility of multimedia equipment – Emission Requirements / (CISPR 32:2015/AMD1:2019) • ENT 55035:2017 / DIN EN 55035:2017/A11:2022 Electromagnetic compatibility of multimedia equipment – Immunity requirements / (CISPR 35:2016) nnounce by Simpleway...
-
Page 4: Optional Accessories
4 clear anti-scratch rubber feet • 2 rack mount brackets • 3x terminal block connectors with 12 positions • 1x terminal block connectors with 9 positions Optional accessories • Optional: Connection plate with 4 screws for rack mounting in pair nnounce by Simpleway... - Page 5 The product sticker on the bottom of the device contains the MAC address required for device pairing. Control LEDs Front panel and rear panel LEDs are aligned, the description below is valid for both. Status Device status: • Red LED light indicates booting of the device. nnounce by Simpleway...
-
Page 6: Device Configuration And Setup
• IMPORTANT: Instead of 000000, enter the last 6 digits of the MAC address found on your ionode4 device. • NOTE: The device is using mDNS. 4. Your web-browser shows the login page of your ionode4 device. nnounce by Simpleway... - Page 7 5. Enter credentials into the nnounce configuration user interface: IMPORTANT: Default credentials are admin/simpleway. Change default password upon the first login. Now you are able to access the configuration settings of the device and continue with interface configuration. Interface Settings After login into the nnounce configuration UI, establish a connection between your new ionode4 device and your network.
- Page 8 – Hardware User Guide NN_USER_GUIDE_ionode4_v2.2.docx A. Navigate in the left- hand Menu to Interfaces section. You can preconfigure two LANs A and B, see rear panel ports. B. Configure the interface in the Manual mode or Auto mode (DHCP). nnounce by Simpleway...
- Page 9 LAN adapter. • DNS server and Search domains are assigned by the DHCP server. D. Advanced slider allows you to insert an advanced configuration. • CIDR notation. Click on the Save Changes button to confirm the configuration. nnounce by Simpleway...
- Page 10 In the previous chapter you connected your ionode4 audio integration device to the network via a standard ethernet cable. This network consists of: • Q-SYS Core and further Q-SYS peripherals, • Windows-based computer for Q-SYS designer network setup, not required for runtime operation, • Gigabit Ethernet Switch. Network overview: nnounce by Simpleway...
- Page 11 IMPORTANT: Configuration from the Q-SYS designer is auto populated to the nnounce configuration UI and thus your ionode4 device. 1. The nnounce ionode4 plugin for Q-SYS Designer can be obtained from: a. Q-SYS d esigner Asset Manager b.
- Page 12 NOTE: For secured Web-Socket connection it is required to use domain name of the device. IMPORTANT: Use the host as defined in the Connect the Device chapter above – ionode4 dash and the last six numbers of the station’s MAC address. Example: ionode4-90002D nnounce by Simpleway...
- Page 13 8. Upon successful connection status field will show OK. Stream Configuration Create an AES67 stream in the Q-SYS designer. Select first the component and then configure it in the ionode4 plugin. 1. Add the stream component to your Q-SYS design: nnounce by Simpleway...
- Page 14 2. Select your streams from the dropdown. IMPORTANT: The stream name needs to include TX for transmitter streams and RX for receiver streams. 3. Confirm your configuration with the Submit button. NOTE: The field below the Submit button will show the progress. nnounce by Simpleway...
- Page 15 The Network Streams section shows the streams as configured in the Q-SYS designer. IMPORTANT: Do not make any changes in the nnounce configuration UI - DSP designer and Network stream - to avoid malfunction. Default DSP design: nnounce by Simpleway...
- Page 16 The DSP designer in the nnounce configuration UI takes over the design from Q-SYS only unless no custom design is created by the user. The Network Streams section shows the streams as configured in the Q-SYS designer. NOTE: Please do all network stream changes in the Q-SYS designer to avoid any misalignments. nnounce by Simpleway...
- Page 17 – Hardware User Guide NN_USER_GUIDE_ionode4_v2.2.docx • TX stream – transmits audio to other devices, output. • RX stream – receives audio from other devices, input. Example of network stream configuration in nnounce configuration UI: nnounce by Simpleway...
-
Page 18: Installation
IMPORTANT: Please use the supplied connectors for audio and logic connections. Option: Stand-alone Stick the 4 anti-scratch rubber feet to your device. A. Turn your device upside down. B. Take the rubber feet and stick them to the corners of the device. nnounce by Simpleway... - Page 19 Option: Rack mounting The ionode4 can be mounted into a rack as 1. a single unit or 2. as a pair of units attached to each other. 1. Single Two brackets are used to mount a single ionode4 unit: nnounce by Simpleway...
- Page 20 B. Place the bracket as on the picture (use the smaller holes). Use the same screws and attach the bracket to the device. C. Repeat the steps above also for the other device side. nnounce by Simpleway...
- Page 21 For two devices next to each other in the rack, place them in pairs. You will need two brackets and a connection plate with 4 screws. A. Remove two front screws and the middle screw on the device side. B. Repeat step A also for the second ionode4 device just on the other device side. nnounce by Simpleway...
- Page 22 Use the same screws and attach the bracket to the device. Repeat this step also for the second device. D. Turn the devices upside up and place them next to each other as in the picture. nnounce by Simpleway...
- Page 23 – Hardware User Guide NN_USER_GUIDE_ionode4_v2.2.docx E. Attach the two devices together with the connection plate using 4 screws. F. Your devices are ready to be mounted in your rack. nnounce by Simpleway...
-
Page 24: Operation
Firmware update of your ionode4 device is available in the Maintenance section. The installation file is provided by the nnounce support team. A. Navigate in the left- hand menu to the Maintenance section. Click on the Update new button in the Firmware update part. nnounce by Simpleway... - Page 25 B. Drag and drop or select the file provided by the nnounce support team. C. Start to install the firmware update. D. Wait for the installation process to complete. E. After successful completion login screen is displayed. nnounce by Simpleway...
-
Page 26: Technical Specifications
210 mm (W) x 275 mm (D) x 40 mm (H) 1 510 kg without mounting kit Accessories Mounting kit CONTACT Simpleway North America Headquarters: Simpleway Europe a.s. Address: Address: 1621 Central Avenue Na Okraji 335/42 Cheyenne, Wyoming Prague 6...
