ionode4 – Hardware User Guide

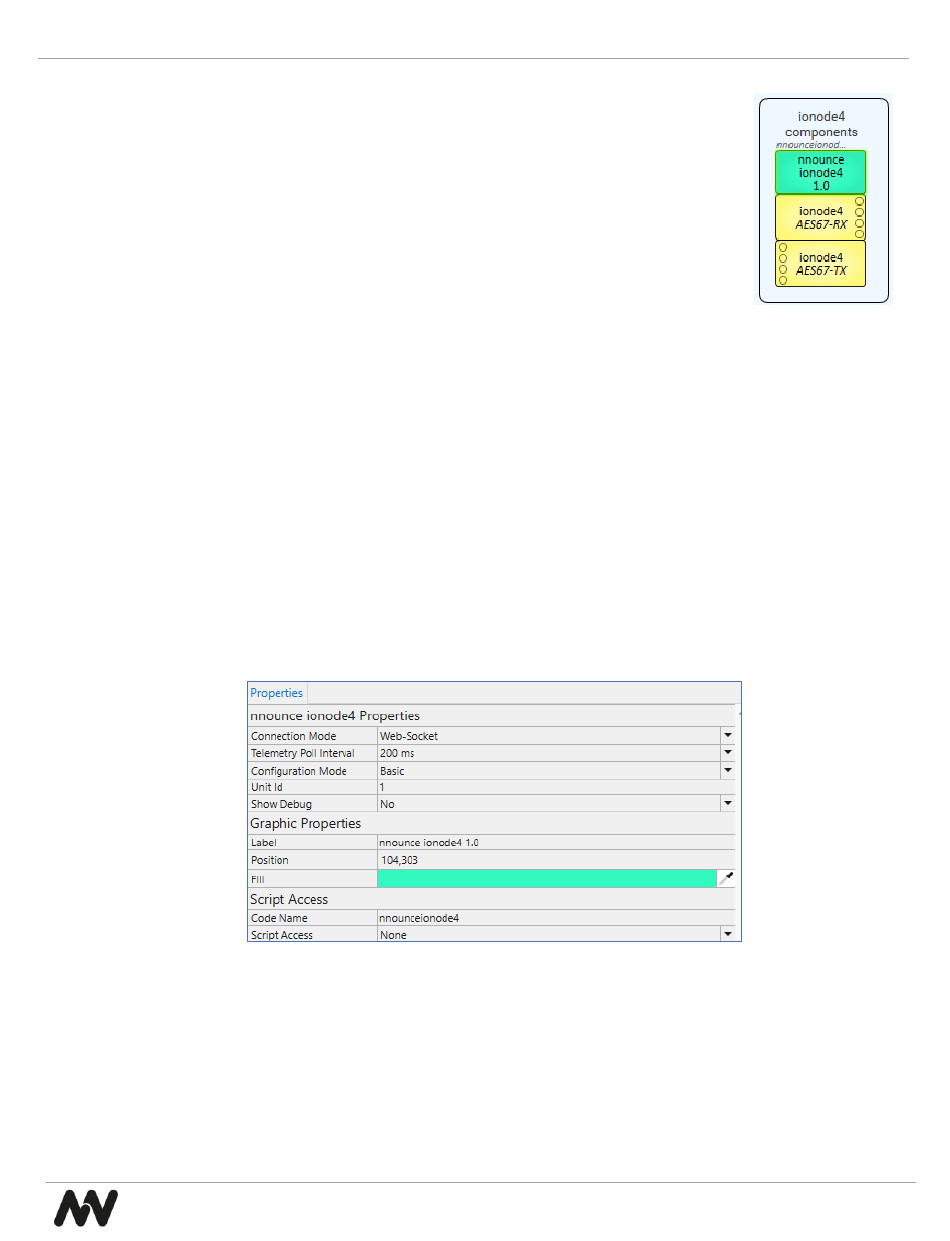

Example design with Components:
•
Receiver - ionode4 AES67 RX (RTP streams available, see stream configuration for more
details).
•
Transmitter – ionode4 AES67 TX (RTP streams available, see stream configuration for
more details).
NOTE: Receiver and Transmitter must be created separately.
See the relevant chapter below.
5. Set up the properties of your ionode4 audio integration device:
NOTE: Properties are opened by simple click on the ionode4 item in the right-hand panel.
•
Connection Mode - will be selected based on Q-SYS version. In older versions TCP socket needs to be
manually selected. Web-Socket with encryption is supported since Q-SYS version 9.8.
•
Configuration Mode – select stream configuration mode:
o Basic – default ionode4 design is applied and stream configuration is predefined for you.
NOTE: An existing default configuration is not overwritten.
o Advanced – manual design and steam configuration. Streams Net Tx and Net Rx channel numbering
needs to be correct according to conventions applied. Default design is applied when no other
design is created.
•
Unit Id – number your device, it is important to assign a unique number, we recommend ascending
numbering of your nnounce devices.
IMPORTANT: The number is further used for stream configuration.
•
Show Debug – set level of debug mode.
6. Create your design in Q-SYS or add the ionode4 to your existing audio configuration. Make sure your design is
disconnected.
7. Save to core & Run, after that open the ionode4 plugin detail and set Host/IP of the ionode4 device.
NOTE: For secured Web-Socket connection it is required to use domain name of the device.
IMPORTANT: Use the host as defined in the Connect the Device chapter above – ionode4 dash and the last six
numbers of the station's MAC address. Example:
TM
nnounce by Simpleway
ionode4-90002D
