ionode4 – Hardware User Guide

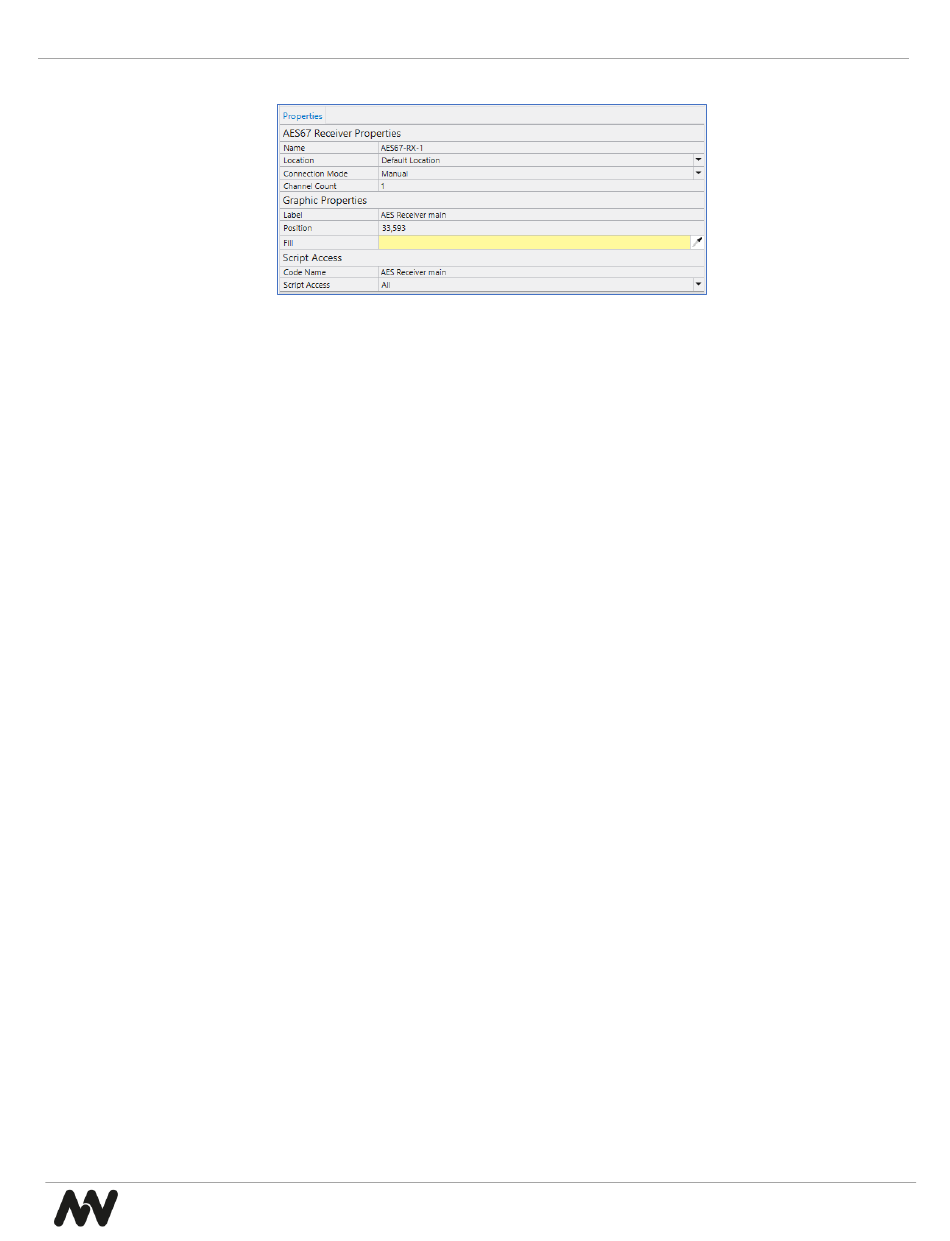

2. Set up stream properties:
IMPORTANT: Streams need to have Script access set to the value Script. In older Q-SYS designer versions Script access is
not visible in Stream properties. Rename the stream in a disconnected design. Only after that the stream is visible in the
ionode4 plugin.
3. Once the Stream component is set up, switch to the ionode4 plugin and configure the Streams Configuration section.
Based on the chosen Configuration Mode Basic or Advanced in the device's Properties, the values are either prefilled
in or you can set up the values manually.
Basic mode has a default design and preset ports, in the Advanced mode you create your own design and set manually
your stream configuration.
Option: Basic Mode
1. The multicast address is filled in automatically. In the Basic mode the Pattern is the IPv4 first and second byte and
the last number is your device's Unit ID.
NOTE: This field is editable but prefilled, changes are visible in the stream IP address fields.
IMPORTANT: Unit ID is a number you have assigned to your device in the Properties section. It is important to assign
a unique number, we recommend ascending numbering of your devices.
2. Select your streams from the dropdown.
IMPORTANT: The stream name needs to include TX for transmitter streams and RX for receiver streams.
3. Confirm your configuration with the Submit button.
NOTE: The field below the Submit button will show the progress.
