CyberData PoweredUSB Hub Specification Sheet page 2

PC Host
Scanner
Port 1 Port 2
+5V +5V
Power Power
+5V Ports (2)
AC Cable
The AC connection is a standard IEC type.
Input Requirements:
Voltage: 90 ~120 VAC or 200 ~ 260 VAC Auto Switching
Frequency: 60/50 Hz
Input Current: 6.0A (RMS) for 115VAC or 3.0A (RMS) for 230VAC
Host Connector
The Host connector is a standard USB "A" to "B" type cable. Maximum length is 5 meters (16.5 feet).
PoweredUSB Cables
Part Number PoweredUSB Cable Description
010855 PoweredUSB Cable, 12V to 2x4 - 2.25 Meter
010736 PoweredUSB Cable, 12V to 10 Pin RJ45 - Semi-Coiled - 15 Feet
010735 PoweredUSB Cable, 12V to Din8 F - 3 Meter
010617 PoweredUSB Cable, 24V to 1x8 - 1.2 Meter
010632 PoweredUSB Cable, 24V to 3-Pin Power Connector - 4 Meter
010714 PoweredUSB Cable, 24V to "Y" Cable - USB-B and 3-Pin Power - 1 Meter
License note:
The PoweredUSB controller board contains specific technology covered by a patent held by IBM Corporation. CyberData has obtained a license from IBM that
permits CyberData Corporation, among other things, to make or sell products that incorporate this technology. The license also permits these products to be
resold by an entity after they have been initially sold by CyberData.
CyberData Corporation
Signature Capture Pad
Front View
Port 3 Port 4 Port 5 Port 6
+12V +12V +12V +24V
Power Power Power
+12V Ports (3)
CyberData Corporation
(831) 373-2601 (831) 373-4193
PoweredUSB Hub

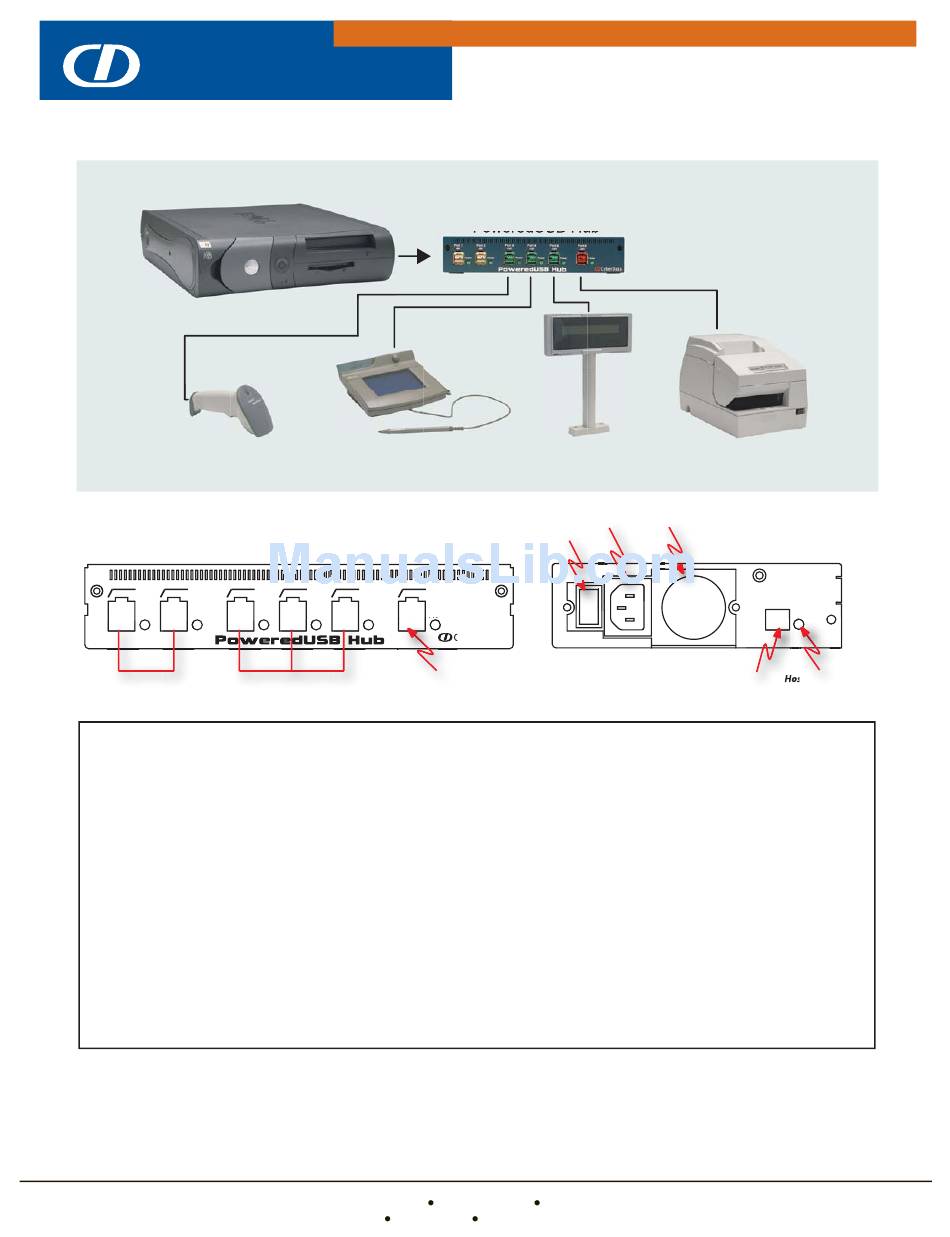

Typical Installation
PoweredUSB Hub
Display
AC In
On/Off
Power
CyberData
C o r p o r a t i o n
+24V Port
2555 Garden Road Monterey, California 93940
www.cyberdata.net
Printer
Fan
Side View
100-120/200-240VAC
60/50Hz
6/3A
Host
Active
USB Host computer Host connect LED
Application
PIN Pad / Signature Capture
Hand Scanner
Customer Display
Printer
Printer
Printer
