Altronix Pace3KL Installation Manual page 4

Fig. 2
Star
T1L Device
T1L Device
>1,000m Data + Power
>1,000m Data + Power
Parameter
Connections
Input power
requirements
Indicators
Environmental
Conditions
Regulatory
Compliance
Weights (approx.) Product: 0.22 lb. (0.1 kg) | Shipping: 0.4 lb. (0.18 kg)
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IIPace3KL
- 4 -

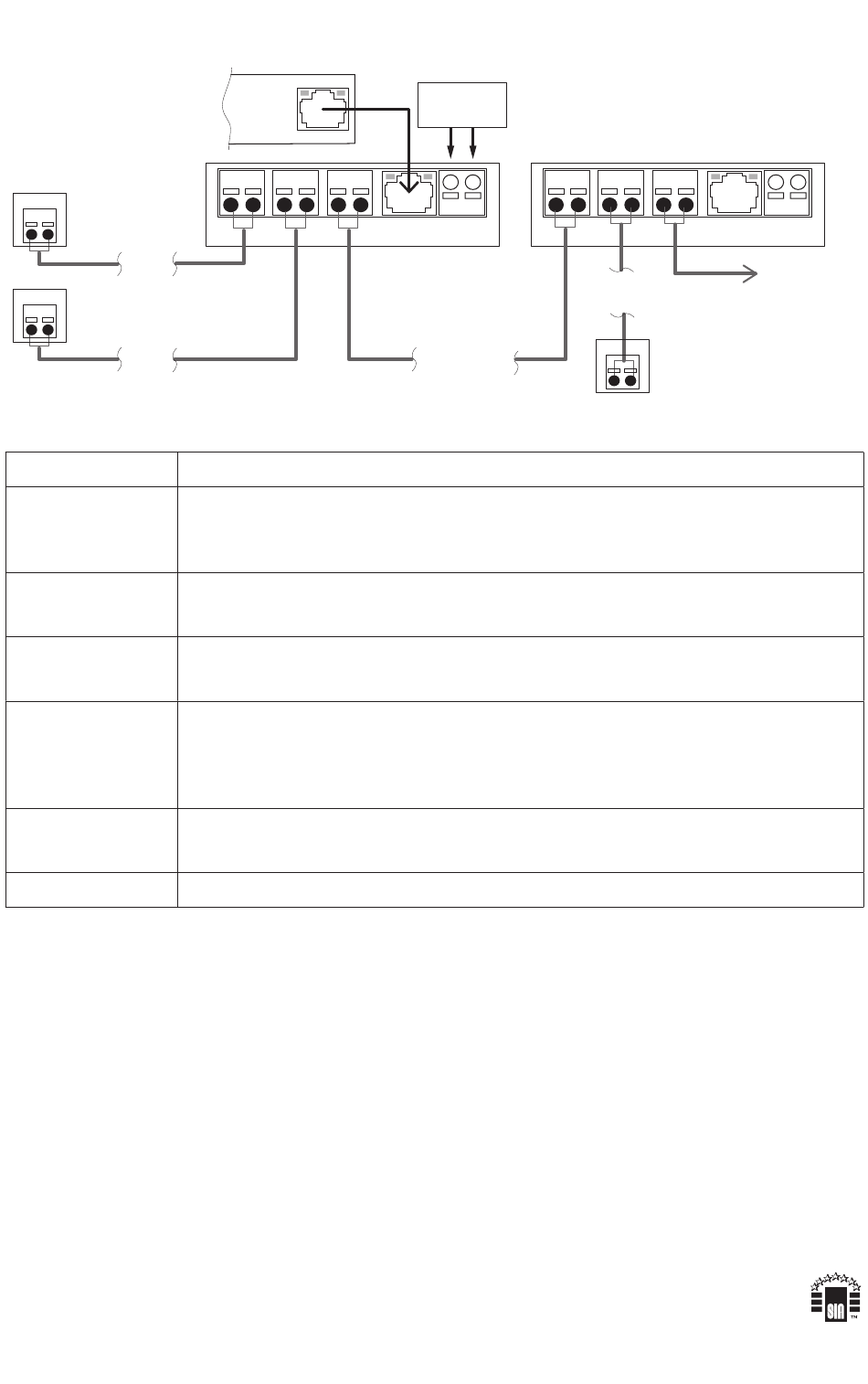

Typical Application:
Switch
Technical Specifications:
Description
RJ45 for CAT5/6 or higher ethernet link.
UTP (2-wire) screw terminals for 10Base-T1L, IEEE 802.3cg
compliant devices connection.
Midspan or switch port connected.
12/24VDC power supply.
Yellow (RJ45 connector):
Green (RJ45 connector):
Operating Ambient Temperature:
Storage Temperature:
Relative Humidity:
Operating Altitude:
CE European Conformity.
12/24V
PoE
Power Supply
Pace3KL
>1,000m Data + Power
On - Link, Off - No Link, Blinking - Activity.
On - 100Base-TX, Off - 10Base-T.
D04X
Multi-Point Drop Off
>1,000m
Data + Power
T1L Device
– 40ºC to 75ºC (– 40ºF to 167ºF).
– 40ºC to 75ºC (– 40ºF to 167ºF).
20 to 85%, non-condensing.
– 304.8 to 2,000m.
Pace3KL
To next Pace3KL
