Altronix Pace3KL Installation Manual page 3

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all
local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire
suitable for the application.
Pace3KL is not intended to be connected to outside plant leads and should be installed indoors within
the protected premises. It is intended for indoor use only.
1. Secure Pace3KL to the desired mounting surface with a proper fastening device utilizing the unit's
mounting hole (Fig. 1a, pg. 3). Unit should be mounted in proximity to ethernet switch/network.
2. Connect structured cable from ethernet midspan or endspan device to RJ45 jack marked
[PoE Input] (Fig. 1, pg. 3, Fig. 2, pg. 4).
3. Connect 12/24V power supply to connector marked [12/24V Input +, –] carefully observing polarity.
4. Connect UTP to connectors marked [T1L Output] (Fig. 1, pg. 3, Fig. 2, pg. 4).

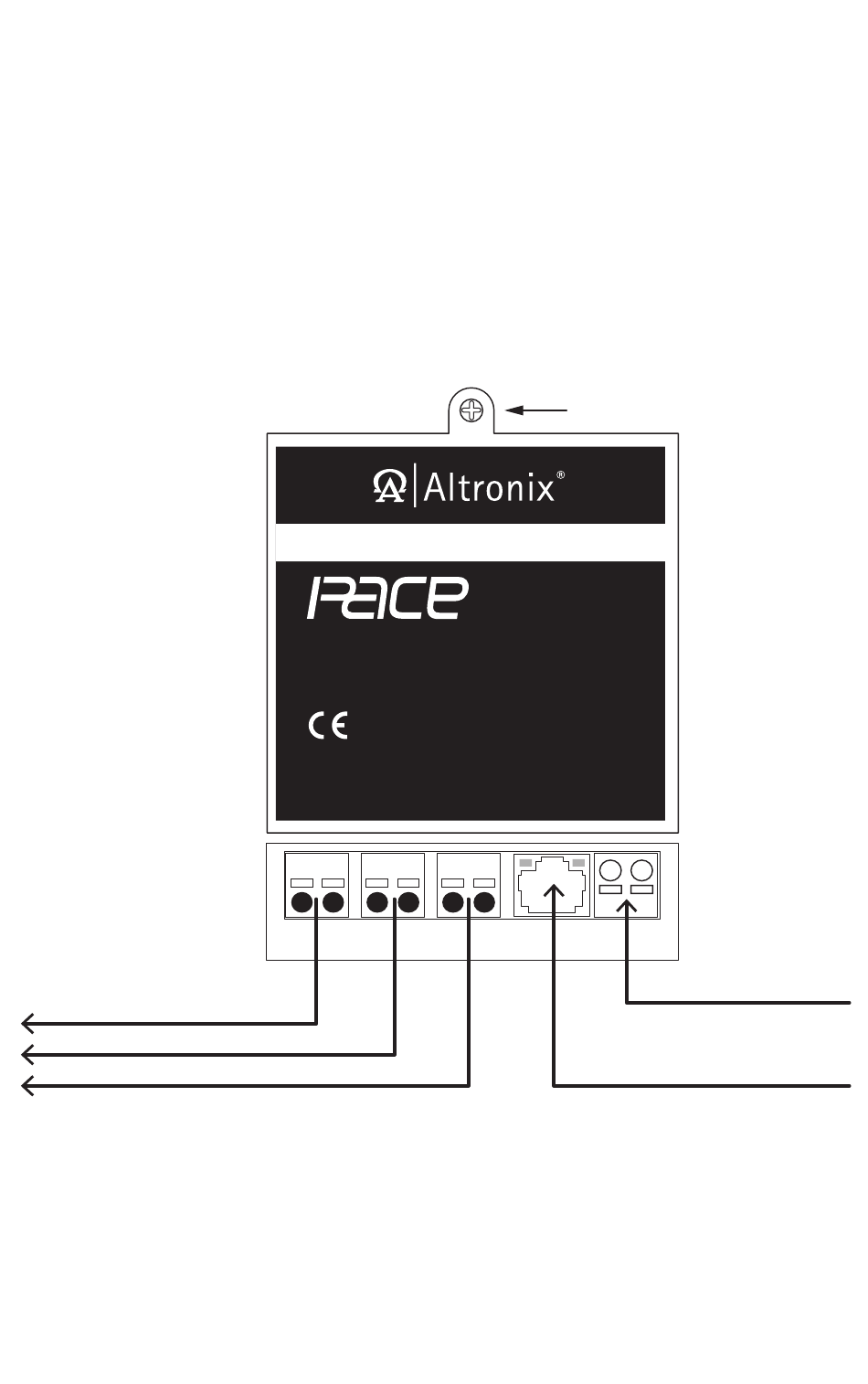

Fig. 1
Pace3KL Installation Guide
Installation Instructions:
Fig. 1a
Pace3KL - T1L Switch/Adaptor
RJ45 LEDs Yellow - Activity, Green - Speed
Green LED Power and PoE
T1L
Output
+ –
UTP (16/2 AWG or higher) links to
T1L, .3cg Network Devices
>1,000m Data + Power
10Base-T1L, IEE802.3cg
Media Adaptor
T1L T1L
Output Output Data/PoE
+ – + –
Mounting Hole
Brooklyn, NY, U.S.A.
www.altronix.com
12/24V
Input
Input + –
12 or 24VDC
from Power Supply
Structured Cable (CAT5 or higher)
from Switch/Midspan
10/100 BaseT (100m)
- 3 -
