Turning LEDs ON and OFF (Shortcut)
LEDs
On

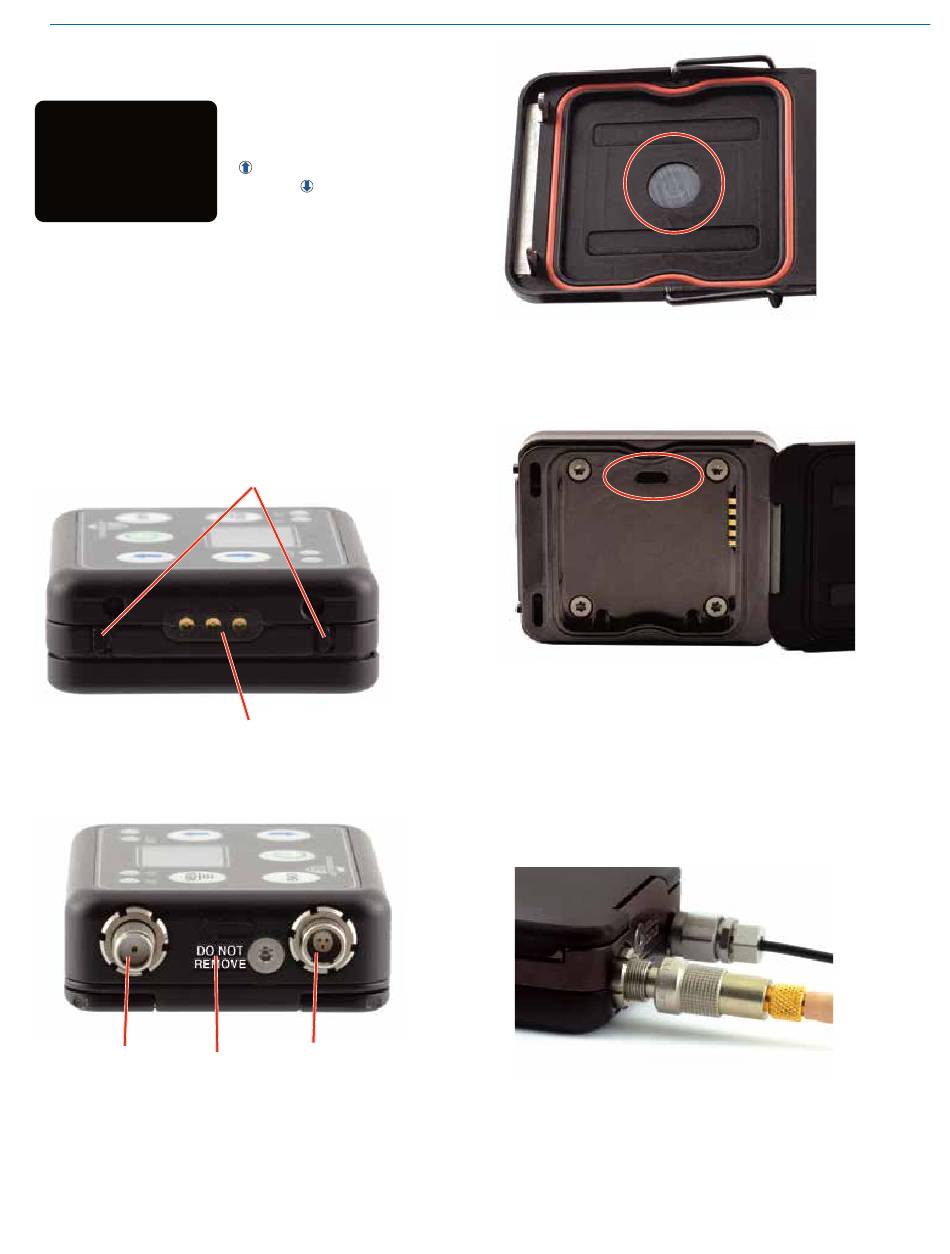

Connectors and USB Port

The housing is machined out of solid aluminum alloy for
a rugged, lightweight assembly.
The antenna attaches via SMA connector. The IR port is
capped with a translucent window to broaden the recep-
tion angle. The input jack is a rugged, watertight 3-pin
connector with a threaded locking sleeve.
Battery door release tabs
Dock charging contacts
The opposite end of the transmitter contains the bat-
tery door latches and release tabs, along with the dock
charging contacts.
SMA IR window
Connector
The battery door has a Gore-Tex® sealed vent to allow air
pressure to escape while blocking moisture ingress.
* Gore-Tex is a registered trademark of W. L. Gore and Associates
Rio Rancho, NM
From the main "home"
screen, the arrow keys also
turn the LEDs on and off. With
no other button pressed, the
arrow turns the LEDs on
and the arrow turns them
off. They can also be turned
off or set to constantly stay
on via the Set Up menu (see
page 15).
Input
Jack
Water-Resistant Micro Body Pack Transmitter
The USB port, which is used for firmware updates, is lo-
cated inside the battery compartment. When connected,
the unit is powered from the USB source.
Attaching and Removing
the Microphone
Align the ridges on the plug with the grooves in the jack
and insert the plug.
Slide the threaded sleeve onto the jack and rotate it
clockwise to tighten it.
7
