Doran DS5200 Technical Manual page 5

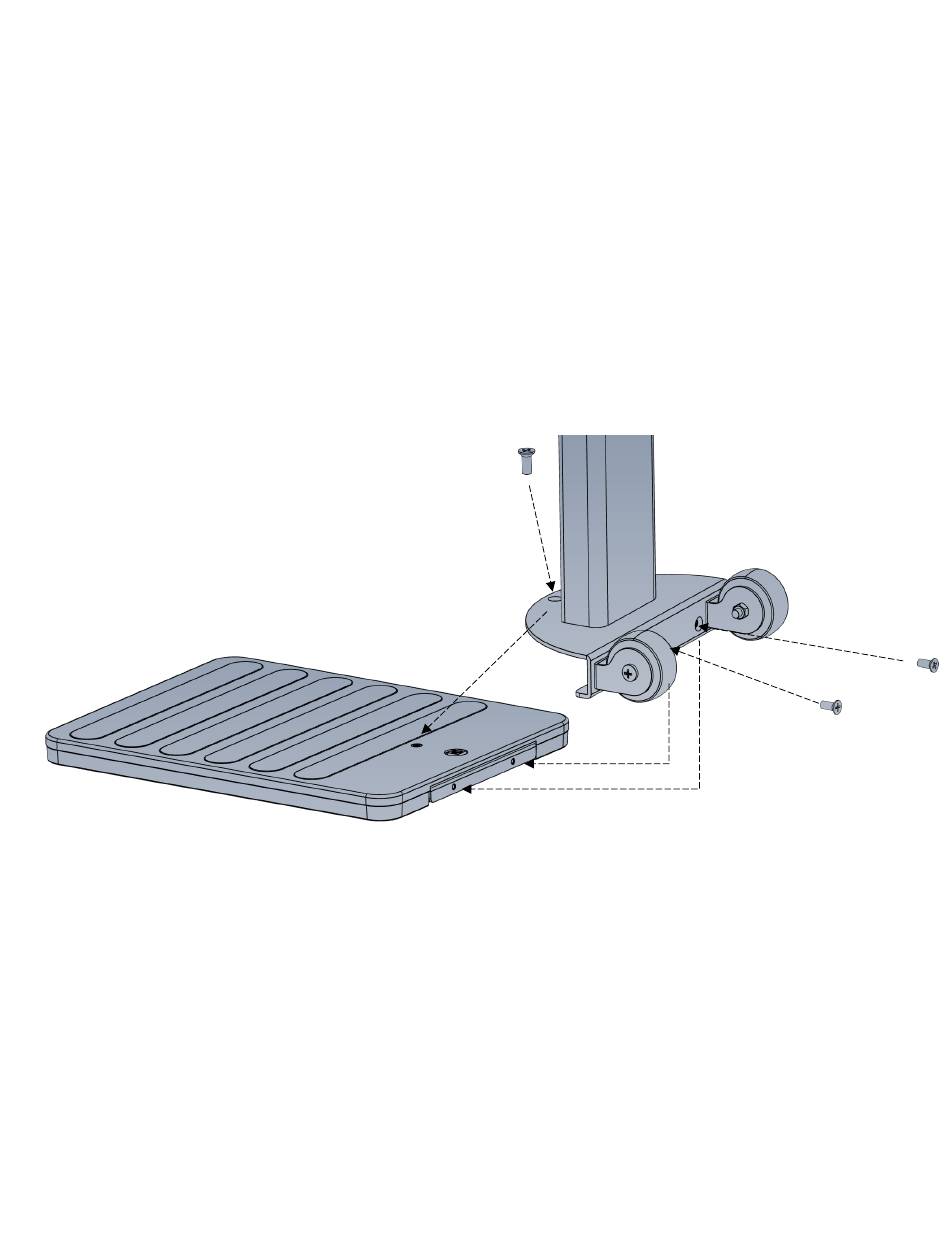

Insert and lightly hand tighten all three screws – two at the rear base of the column
between the wheels and one at the front base of the column. Once all three screws are
installed, first firmly tighten the two screws at the rear of the column. Finally, tighten the
final screw at the front of the column. Before tightening the final screw, if there is a
bulge in the rubber mat gently push it towards the rear of the scale to eliminate and then
fully tighten the last screw.
During shipping, the scale is placed in a transport mode to inhibit the scale from
turning on during transit. Once fully assembled, press and hold the ZERO button
for 5 seconds. After pressing ZERO, the scale will beep several times and then
display HELLO followed by 0.0. Until you perform this procedure the scale will be
disabled.
3
