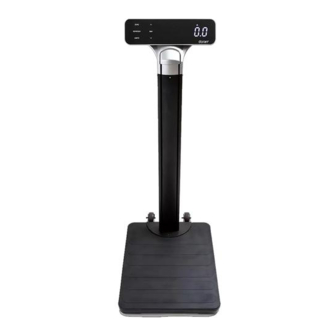

- Page 1 DS5200 Waist High Digital Physician Scale Technical Manual MAN0365 – Rev 9.4 Doran Scales, Inc. www.doranscales.com...
-
Page 2: Table Of Contents
Section 1. Unpacking and Care ............... 1 Unpacking ........................1 Cautions and Warnings ....................1 Care & Cleaning ......................1 Preventive Maintenance ....................1 Section 2. Scale Assembly ............... 2 Section 3. Battery Operation ..............4 Battery Transport Mode ....................4 Charging Battery ...................... -
Page 3: Section 1. Unpacking And Care
Section 1. Unpacking and Care Thank you for purchasing a Doran scale. This product has been designed with the highest level of technology. We are dedicated to delivering a superior product that will provide many years of trouble free service. -
Page 4: Section 2. Scale Assembly
Section 2. Scale Assembly Remove the base and indicator column from the packaging and set aside. Locate the three tower mounting screws and have them available along with a Phillips #2 head screwdriver. A connector at the base of the column is secured with a yellow tab. DO NOT remove this tab until the connector has been secured to the base connector. - Page 5 Insert and lightly hand tighten all three screws – two at the rear base of the column between the wheels and one at the front base of the column. Once all three screws are installed, first firmly tighten the two screws at the rear of the column. Finally, tighten the final screw at the front of the column.
-
Page 6: Section 3. Battery Operation
50% charged and can be fully charged at this time. Charging Battery To charge the DS5200, use the included USB A to USB C charging cable. Use any readily available USB wall mount adapter that produces 5V and 1A or higher. -
Page 7: Section 4. Scale Operation
Front Panel RESET Rear Panel Display Pushbuttons The Model DS5200 controls consist of UNITS, ZERO, REWEIGH, ▲, ▼, and BMI. The display is used to provide weight indications and operator messages indicating scale operation. Display Annunciators The display annunciators lowbatt, hold, lb, kg, cm, in, and ft will indicate the scale... - Page 8 Power On/Off When the patient stands on the scale, it will automatically turn on and provide the patient’s weight once a stable weight is achieved. The scale will maintain an accurate zero between patient weighments. Alternatively, press ZERO to turn on the indicator. The display will turn on and display 0 weight.
-
Page 9: Weighing A Patient
Weighing a Patient 1. Patient stands on the platform 2. The indicator will display dashes, “-----” until the patient’s weight is captured. 3. The patient’s weight is then displayed and beep (if enabled). 4. The weight will be held on the display until the scale turns off. NOTE: If the patient is not stable the scale will show ERnn and then turn off. -
Page 10: Section 5. Scale Calibration
Section 5. Scale Calibration Entering and Exiting Setup Mode To enter setup mode from the front panel 1. Press ZERO to turn the scale on. 2. Press and hold ZERO and UNITS simultaneously for 5 seconds until the display reads Prset. 3. -
Page 11: Multiple Point Calibration Procedure
Multiple Point Calibration Procedure 1. When the setup mode is entered the display reads CAL n. Press BMI to navigate to CAL nn 3. Press the ▲arrow button to change the display to CAL y. 4. Press BMI. 5. The display reads CAL 0. If necessary, press UNITS to calibrate in kilograms. 6. -
Page 12: Calibration Troubleshooting
If Ernn appears on the display, there is excessive motion on the scale platform. If the scale’s raw counts are not within the ranges specified in the following table, contact Doran’s Technical Assistance department at tech@doranscales.com. Calibration Requirements in Raw Counts... -
Page 13: Section 6. Parameter Setup
Section 6. Parameter Setup The indicator has many adjustable parameters which control the scale’s operation. The parameter settings shown in bold are the default settings. Entering and Exiting Setup Mode To enter setup mode from the front panel 1. Press ZERO to turn on the scale. 2. -
Page 14: Automatic Shutoff Timer
Automatic Shutoff Timer Automatic shutoff timer. The timer controls the period of time the scale stays on after non-use. Extending timeout will reduce battery life. 10 seconds (Default) 30 Seconds 1 minute 2 minutes 5 minutes 10 minutes 15 minutes Automatic shutoff timer disabled. -
Page 15: Emr Format
EMR Format Format Protocol of transmitted and For. received data from the serial port Doran data format. F1 (9600, 8N1) IQvitals format. (9600, 7O2) Welch Allyn Spot format. (2400, 7E1) Doran data format. F0 (9600, 8N1) LB Units Enable / Disable... -
Page 16: Weight Hold Weight Beep
Weight Hold Weight Beep Enables/Disables beep when a stable or average hold weight is achieved Beep disabled. Beep enabled. (default) Battery Voltage Level Displays current battery voltage (DC) Green Light on when charging: > 3.35 V Full Battery: 3.35 V 50% Battery: 3.15 V Low Battery:... -
Page 17: Section 7. Data Communications
Section 7. Data Communications USB Communications Port Option The indicator is equipped with a USB C communications and charging port. The USB C connection is located on the back of the indicator. Connect the EMR Communication Module to the scale by plugging into the scale’s USB C port. Double sided foam tape is provided to adhere the module to a convenient location. - Page 18 Use the USB C to USB A cable provided with the scale to connect to the PC. If customer supplied cables and or converters are used be sure these support data transmission. Once plugged into the PC, the scale will charge from the PC USB power supply so the scale will display the corresponding charging light when connected to the This device requires Windows 10 or higher.
- Page 19 Doran F1 protocol (f1) (9600, 8N1) Scale Output Command (RXD) Responds (TXD) Description Computer to Scale Scale to Computer Zero the scale (if in motion, scale will wait until Z or z stable, then zero) ☻ <stx> ( ) = ASCII 02h, Start of Text <pol>...
- Page 20 IQ Vitals protocol (IV) Fairbanks TeleWeigh (9600, 7O2) Scale Output Command (RXD) Responds (TXD) Description Computer to Scale Scale to Computer Zero the scale (if in motion, scale will wait until Z or z stable, then zero) <weight> = 6 character field with decimal point <sp>...
-
Page 21: Section 8. Specifications
Section 8. Specifications 14.0” W x 20.5” D x 1.35” H Scale Platform Dimensions 14.0” W x 20.5” D x 35.5” H Overall Dimensions Power Internal rechargeable LiFePO4 battery USB A to USB C Charging cable (included) USB 5V, 1A wall adapter for charging (optional). -
Page 22: Section 9. Troubleshooting
Section 9. Troubleshooting General Problem Resolution Problem What to Do or Check Weight reading will not repeat or Person or object other than that being scale does not return to zero when weighed is touching the scale. weight is removed. Verify that there is nothing caught in or interfering with the platform. - Page 23 Doran Scales, Inc. 883 Enterprise Court St. Charles, IL 60174 www.doranscales.com tech@doranscales.com...
