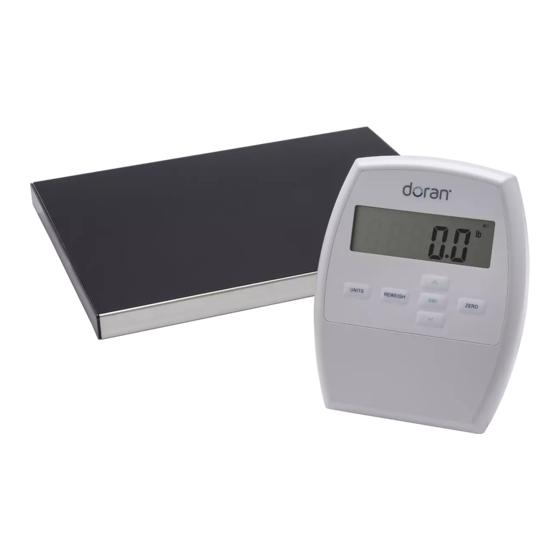

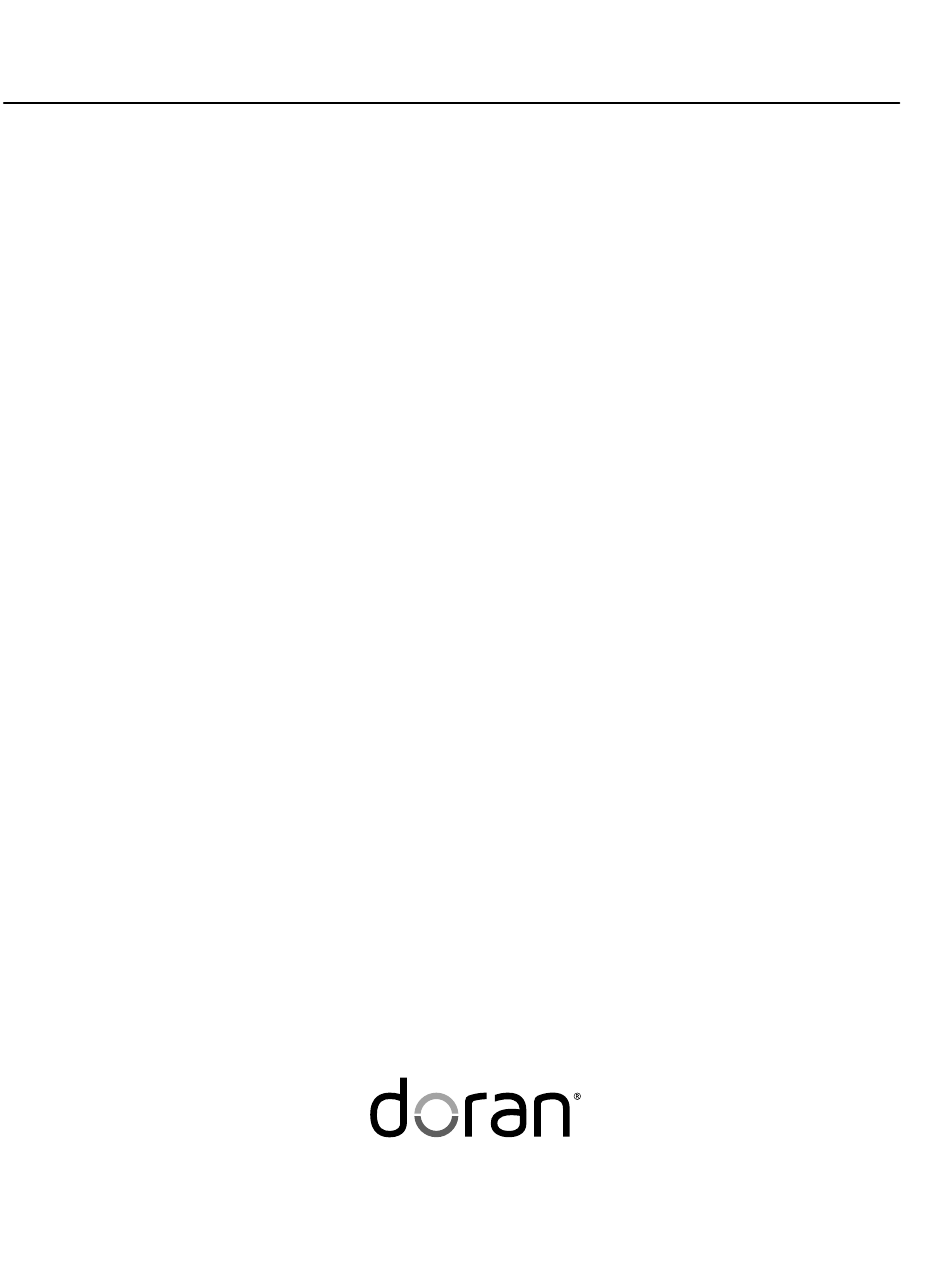

- Page 1 DS6150 Remote Indicator Scale User Manual MAN0314 – Rev 2 Doran Scales, Inc. www.doranscales.com...
-
Page 2: Table Of Contents
Section 1. Unpacking and Care ............... 1 Unpacking ........................1 Cautions and Warnings ....................1 Care & Cleaning ......................1 Preventive Maintenance ....................1 Wall Mounting ......................2 Section 2. Battery Operation ..............3 Section 3. Scale Operation ..............4 Display Pushbuttons ..................... -
Page 3: Section 1. Unpacking And Care
Section 1. Unpacking and Care Thank you for purchasing a Doran scale. This product has been designed with the highest level of technology. We are dedicated to delivering a superior product that will provide many years of trouble free service. -
Page 4: Wall Mounting
Wall Mounting If mounting the indicator to a wall, refer to the following diagram. Place two screws 4.09” apart, 65” above the floor. The screw heads should be approximately 0.33” in diameter. -
Page 5: Section 2. Battery Operation
Section 2. Battery Operation Battery Installation The indicator can be powered by a set of six AA alkaline batteries. These batteries can perform over 25,000 weighments of typical use with the standard Automatic Shutoff Timer settings. The battery compartment is located on the backside of the indicator. Press the locking tab to release battery compartment cover. -
Page 6: Section 3. Scale Operation
Section 3. Scale Operation Fig. 3 Front Panel Display Pushbuttons The Model DS6150 controls consist of UNITS, ZERO, REWEIGH, ▲, ▼, and BMI buttons. The display is used to provide weight indications and operator messages indicating scale operation. Power On/Off Press the ZERO button to turn on the indicator. -
Page 7: Display Annunciators
Units Press the UNITS button to toggle between lb and kg weighing units. The current unit will be displayed to the right of the weight digits. NOTE: The UNITS button can be locked or unlocked by pressing and holding UNITS for 5 seconds. An “ L off “... - Page 8 Battery Indicator The battery indicator displays the remaining battery life. See the battery operation section for detailed information. NOTE: The battery Indicator will be disabled when using an external power supply. Software Number and Revision display Pressing and holding the REWEIGH button for 3 seconds will perform a display test.
-
Page 9: Weighing A Patient
Weighing a Patient 1. Turn on the indicator by pressing the ZERO button. 2. The indicator will perform a startup zero. 3. The indicator will momentarily display dashes, “-----”, followed by 0.0. 4. Patient stands on the scale platform. 5. The display will scroll dashes until the patient’s weight is captured. 6. -
Page 10: Section 4. Specifications
Section 4. Specifications 12” L x 15” W x 1.5” H Scale Platform Dimensions 8” L x 6.5” W x 2.3” H Indicator Dimensions Power AC Adapter Optional: 6 AA Alkaline Batteries Displayed Units lb, kg Capacity 500 x 0.2 lb or 230 x 0.1 kg Construction Painted Mild Steel Frame, Stainless Steel Platter and Plastic Indicator Housing. -
Page 11: Section 5. Troubleshooting
Section 5. Troubleshooting General Problem Resolution Problem What to Do or Check Weight reading will not repeat or Person or object other than that being scale does not return to zero when weighed is touching the scale. weight is removed. Verify that there is nothing caught in or interfering with the platform. - Page 12 Doran Scales, Inc. 883 Enterprise Court St. Charles, IL 60174 www.doranscales.com 630-879-1200...
