Section 2. Scale Assembly

Remove the base and indicator column from the packaging and set aside. Locate the
three tower mounting screws and have them available along with a Phillips #2 head
screwdriver.

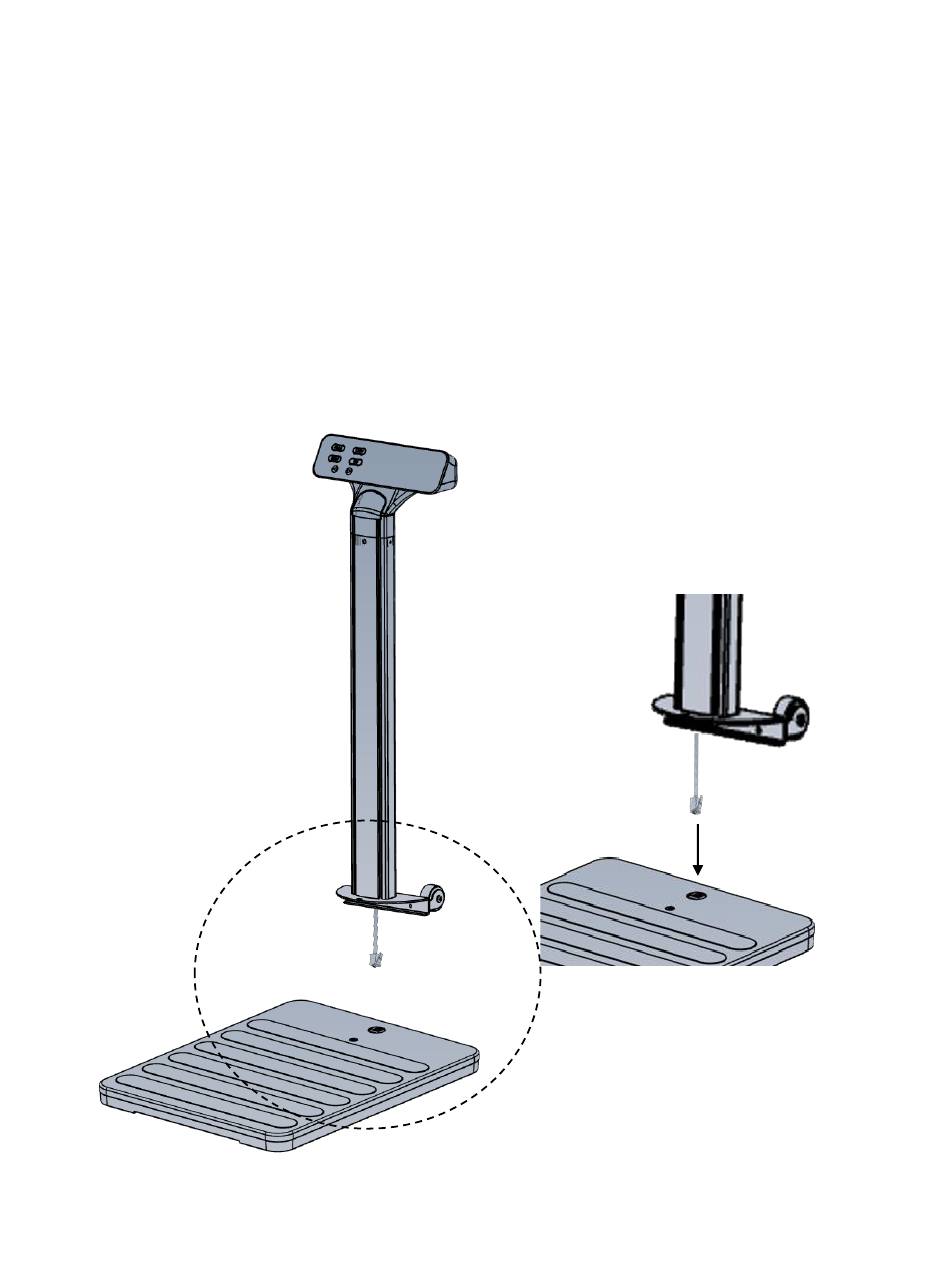

A connector at the base of the column is secured with a yellow tab. DO NOT remove
this tab until the connector has been secured to the base connector. Push into place
until you hear a click when completely inserted. Only after fully connected, remove the
yellow tab from connector at the bottom of the column and discard. Keep the column
and platform nearby and slide the column into place. Be sure that the connector and
cable retracted into the column while sliding into place.
