Thor Broadcast H-4HDMI-IPCAST Quick Setup Manual

Download this manual

H-4HDMI-IPCAST

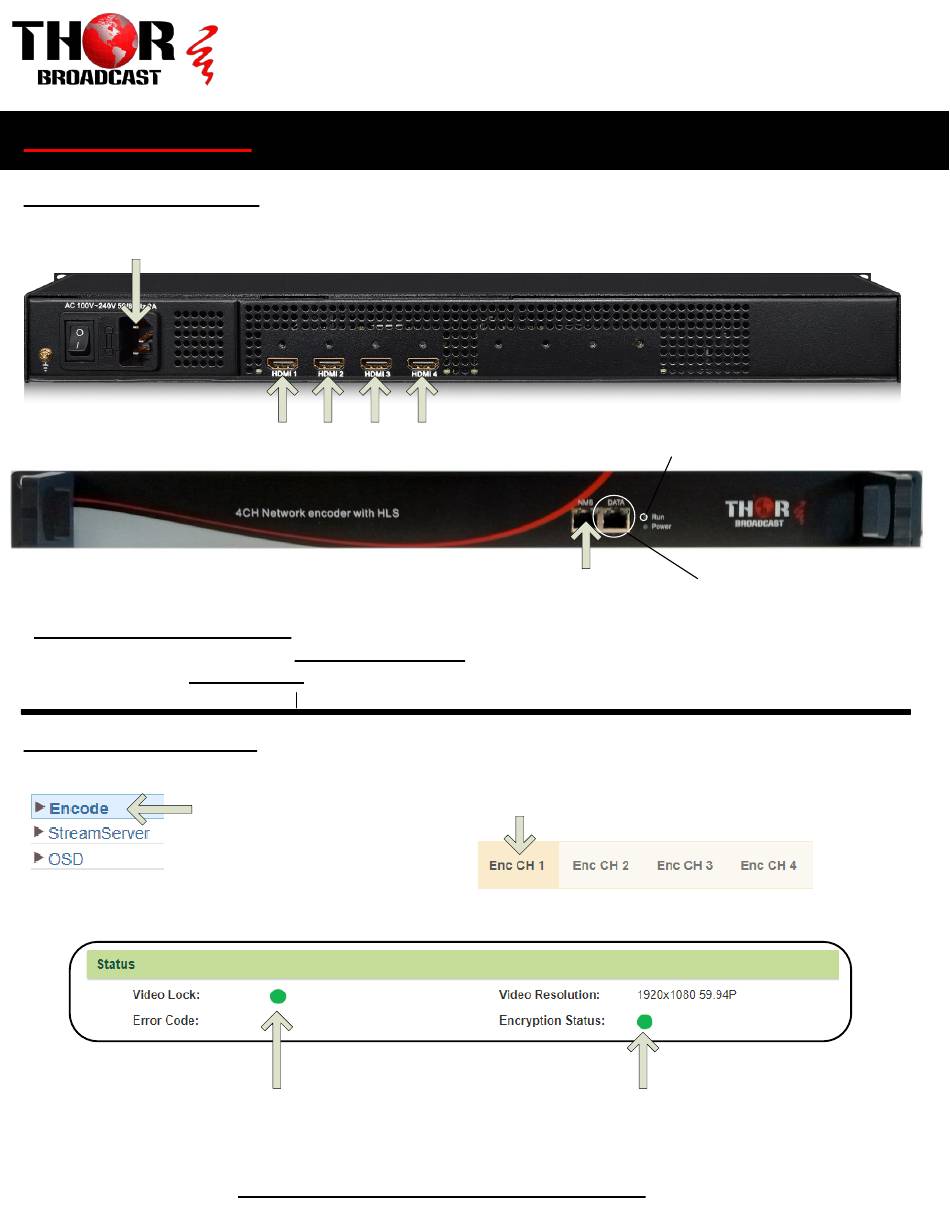

Step 1: Connect and Login

Connect Included Power Supply

· Connect the NMS port ONLY to your PC or Switch using an Ethernet cable (Data Port Is not used)

· Open web browser and go to http://192.168.1.137

· Login/Password: admin/admin

Step 2: Configure Settings

https://thorbroadcast.com

Connect HDMI Inputs 1-4

Select "Encode"

from the Main Menu

Video Lock and Encryption status must be green

Repeat these steps as needed for all channels

800-521-8467

NMS Port

Select Channel 1-2-3 and 4

sales@thorfiber.com

Quick Setup Guide

RUN LED- Turns GREEN

when all 4HMDI inputs are

encoding and streaming

Data Port – IS Not USED

Need help?

Do you have a question about the H-4HDMI-IPCAST and is the answer not in the manual?

Page 1 800-521-8467 sales@thorfiber.com H-4HDMI-IPCAST Quick Setup Guide Step 1: Connect and Login Connect Included Power Supply RUN LED- Turns GREEN when all 4HMDI inputs are Connect HDMI Inputs 1-4 encoding and streaming NMS Port Data Port – IS Not USED ·...
Page 2 Encoding Parameters page - Video Bit rate 1-13Mbps - Audio type and Bitrates - Apply - If HDMI is being detected, the Status - Video Lock will turn green, and the Video Resolution will appear HDMI IN 1-4 Video Bit rate 1-13Mbps Audio type and Bitrates HDMI Resolution Detected HDMI signal Detected...
Page 3 Enable – RTSP / HTTP / HLS streaming protocol and the port number - Select and Enable the Protocol – RTSP or HTTP or HLS for all HDMI inputs rtsp://192.168.1.137:554/stream1 http://192.168.1.137:9090/stream1 http://192.168.1.137:8090/stream1.m3u8 Streaming Protocols Syntax examples: (Protocol://NMS IP Address:Port Number/StreamName RTSP protocol output: rtsp://192.168.1.137:554/stream1 HTTP protocol output:...
Page 4 YOU MUST SAVE CONFIGURATION OR ALL CHANGES WILL BE LOST AFTER RESTART! Select “Configuration” from the main menu Scan for more Info: Click the “Save” tab Press “Save config” button Confirmation message will appear briefly until saving is complete. H-4HDMI-IPCAST Quick Setup Guide https://thorbroadcast.com 800-521-8467 sales@thorfiber.com...
