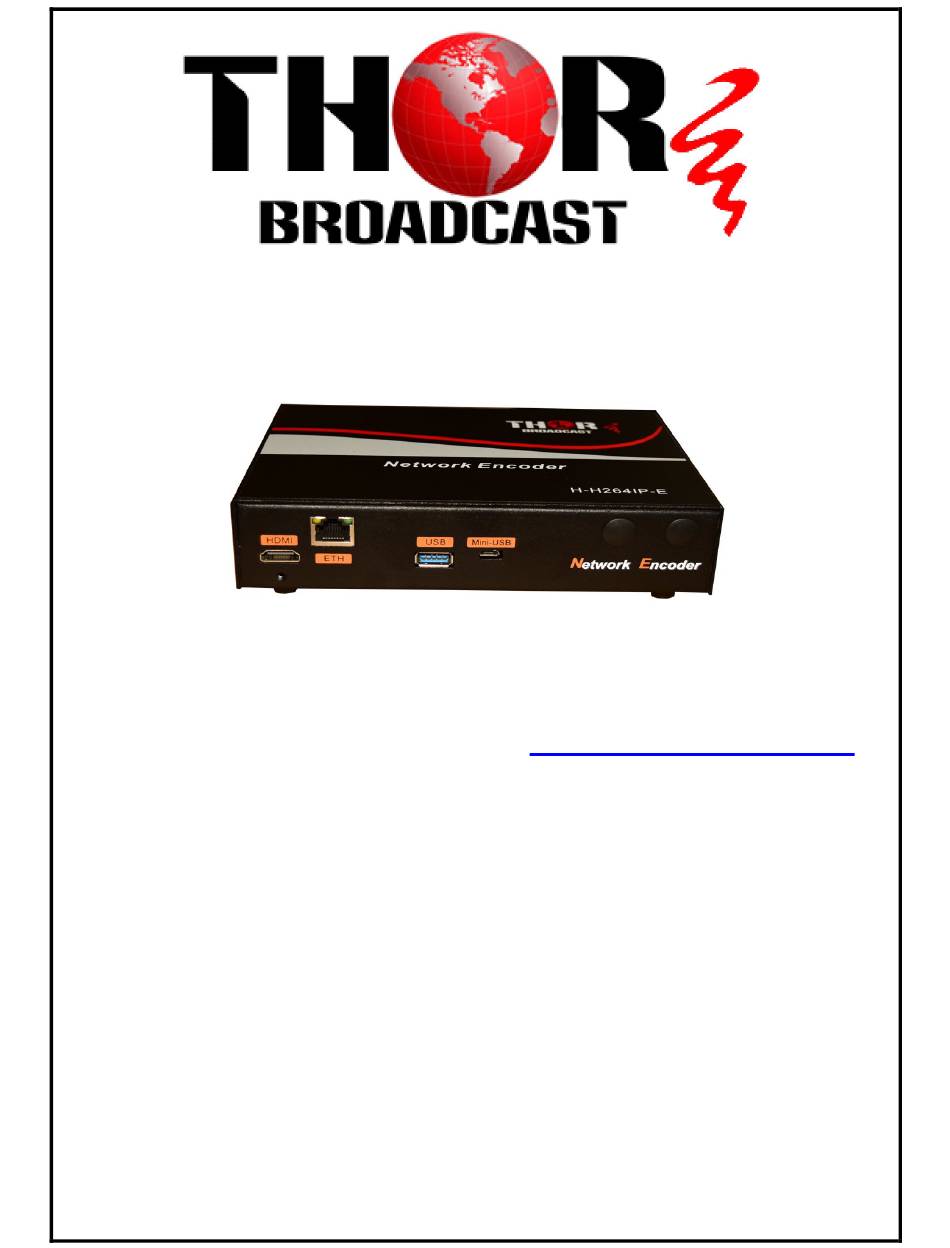

- Page 1 H-H.264IP-E Network Encoder Revision 2.3-2016 Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
- Page 2 The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Thor Broadcast shall have no liability for any error or damage of any kind resulting from the use of this document.
-
Page 3: Table Of Contents
CHAPTER 3 – WEB NMS OPERATION ......................8 ..............................8 3.1 L OGIN ............................. 9 3.2 O PERATION CHAPTER 4 – NETWORK CONNECTION AND SETUP..................14 CHAPTER 5 - TROUBLESHOOTING ........................ 17 CHAPTER 6 -PACKING LIST ........................... 18 Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com... -
Page 4: Chapter 1 - Introduction

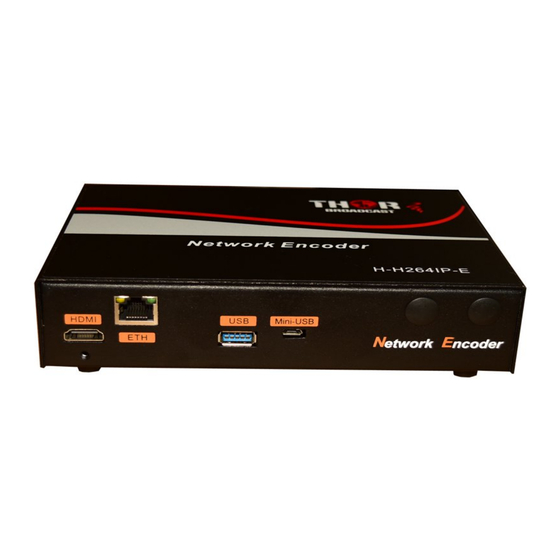

Chapter 1 - Introduction 1.1 Product Overview The Thor Broadcast H-H.264IP-E is a single channel encoder with multiple input options to stream any HDMI/YPpBr input into an MPEG4 stream that is web managed and can be viewed over LAN or Public Internet. -
Page 5: Specifications
IP out over UDP (Unicast/multicast), RTMP, HLS (RJ45, 100/1000M self-adaption) Stream Out Remote control Web-server NMS Language English control interface USB/NFS Upgrade System ≤1Kg Approx weight Operation temp. 0~45 degrees Celsius DC12V Power supply General 183*110*45mm Dimensions 1.4 Principle Chart Thor Broadcast 2016 Tel: (800) 521-846 Email: sales@thorfiber.com http://www.thorbroadcast.com... -
Page 6: Appearance And Description
H-H.264IP-E 1.5 Appearance and Description 1.6 System Connection Samples Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com... -
Page 7: Chapter 2 - Installation Guide
Safety check- Upon completion of any service or repairs to this device, ask the service technician to perform safety checks to determine that the device is in proper condition. Call Thor Fiber*** Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com... -
Page 8: Chapter 3 - Web Nms Operation
It will display the Login interface as shown in Figure-1. Input the Username and Password (Both the default Username and Password are “admin”.) and then click “Login” to start the device. Figure-1 Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com... -
Page 9: Operation
From the menu on the top side of the web gui, click “CH1”or “CH2” or”CH3”, it will then display the interface where you can configure the encoding parameters for the output channel. The Thor Broadcast H-H264IP-E supports up to 3 streams out with different protocol, resolution, bitrate, etc. (Figure-3) Supports IP output over UDP (unicast/multicast), RTMP and HLS. - Page 10 From the menu on the top side of the webpage, click “Update”, it will display the screen as Figure-6 where you can update the corresponding part for the device. There are 2 types of ways to upgrade web, app, and CPU. One is USB, the other is network Figure-6 Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
- Page 11 From the menu on the top side of the webpage, click “Password”, it will display the screen as Figure-8 where to set the login account and password for the web NMS. (Figure-8) Figure-8 System→Network: Click ‘Network’, it will display the interface as Figure-9 where to set network parameters. Figure-9 Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
- Page 12 RTMP flash player for the device. Users should change “local host” to server IP address, and change “my stream” to path name, and then click “start” to play RTMP output protocol Figure-11 Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
- Page 13 File Name: Users can enter this menu to edit name for the *.ts files to be recorded. For example, if users name it “Record-”, it will give that name to the saved *.ts files “Record-001.ts”, “Record-002.ts”… “Record-00N.ts”. Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com...
-
Page 14: Chapter 4 - Network Connection And Setup
Apple devices can use “Safari” browser when HLS is applied as the output protocol, no need for any 3 party player. **Note: Android devices need to install “HLS plug-in” to play when HLS is applied Http://IP address: IP port/program name. m3u8 (e.g. Http://192.168.0.136:12003 /prog1.m3u8) Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com... - Page 15 Click here HLS Protocol: Http://IP address: IP port/program name. m3u8 (e.g. http://192.168.200.66:8080/output0.m3u8 RTMP Protocol: Rtmp: //IP address: IP port/program name (e.g. rtmp://192.168.200.55/live/output0) UDP Protocol: Udp: //@IP address: IP port (e.g. udp://@192.168.0.137:12002) Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
- Page 16 1 or 2 2 or 3 1: Browser 2: 3rd Party Media Player like VLC, Buzz Player etc 3: Browser with HLS plug-in 4: Depends on the protocols supported by the STB Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
-
Page 17: Chapter 5 - Troubleshooting
Device has suffered from physical damage; i.e. it fell off a rack. Longtime idle. After switching on and restoring to factory setting, device still won’t work properly. Maintenance needed on device Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com... -
Page 18: Chapter 6 -Packing List
H-H.264IP-E Chapter 6 -Packing List H-H264IP-E Encoder User's Manual HDMI Cables 2PCS Power Cord For Further Tech Support: 1-800-521-THOR(8467) support@thorfiber.com Thor Broadcast 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
