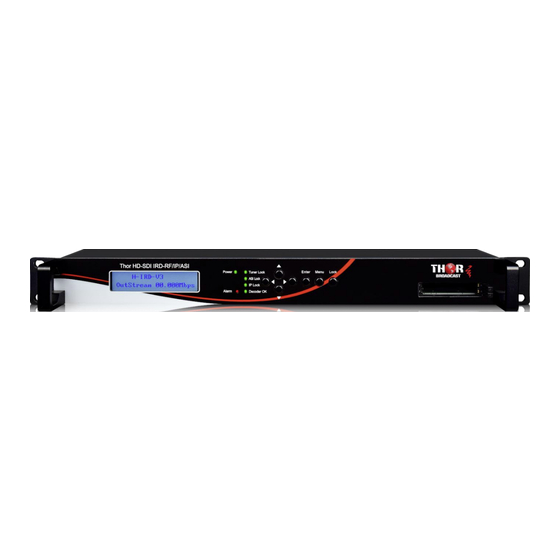

Thor Broadcast H-IRD-V3 User Manual

Ird - satellite or atsc decoder to sdi, ip, asi, closed captions
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
IRD - Satellite or ATSC Decoder to SDI, IP,
ASI, Closed Captions
H-IRD-V3
Tuner Input Options: DVS/S2; ATSC; QAM; DVB-T; ISDB-T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-IRD-V3 and is the answer not in the manual?

Questions and answers

Related Manuals for Thor Broadcast H-IRD-V3

Summary of Contents for Thor Broadcast H-IRD-V3

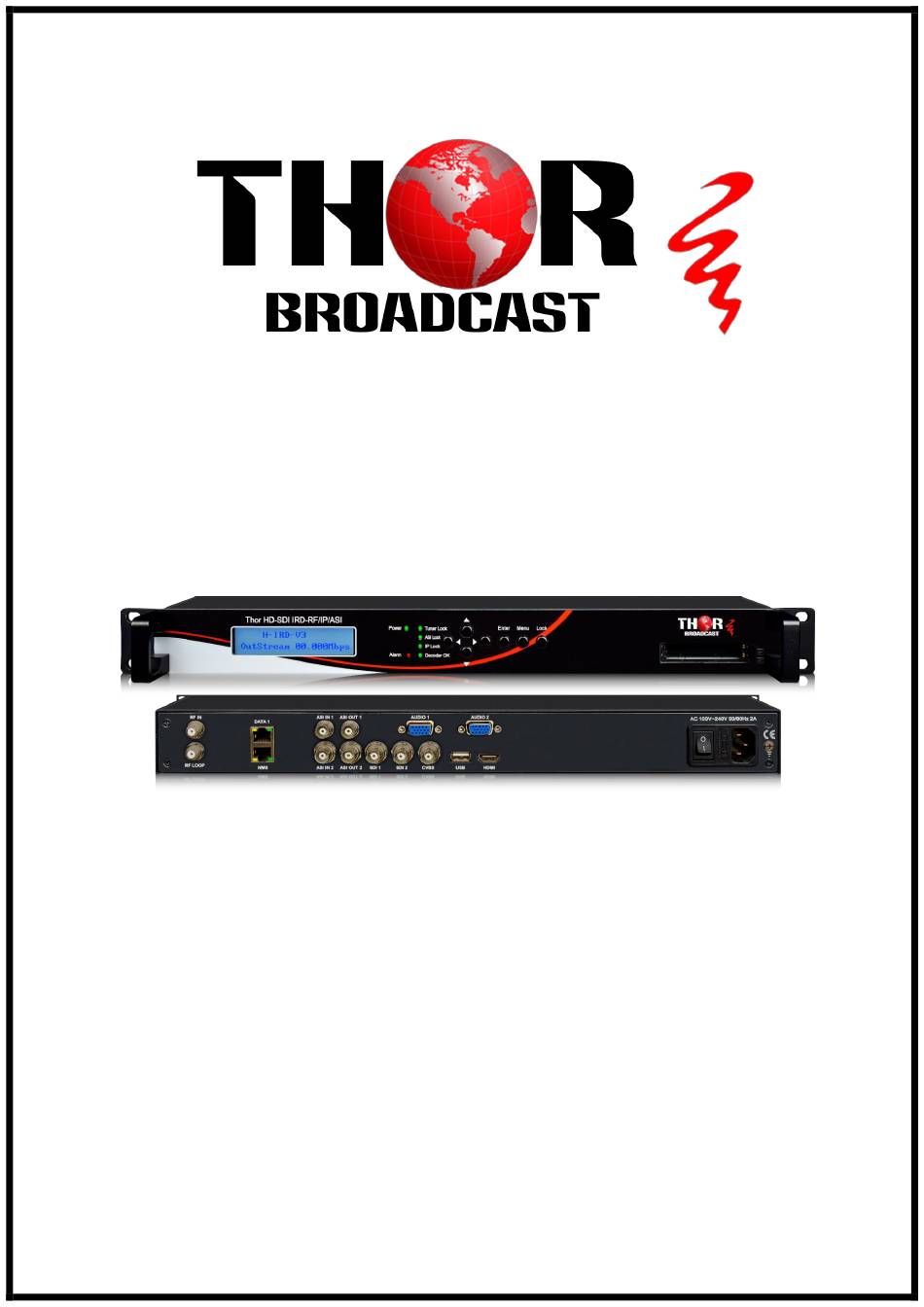

  • Page 1: Ird - Satellite Or Atsc Decoder To Sdi, Ip, Asi, Closed Captions

    User Manual IRD - Satellite or ATSC Decoder to SDI, IP, ASI, Closed Captions H-IRD-V3 Tuner Input Options: DVS/S2; ATSC; QAM; DVB-T; ISDB-T...
  • Page 2 H-IRD-V3 About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards.

  • Page 3: Table Of Contents

    H-IRD-V3 DIRECTORY IRD - Satellite or ATSC Decoder to SDI, IP, ASI, Closed Captions ....1 Chapter 1 Product Outline ................4 1.1 Outline ........................4 Key Features ....................4 Principle Chart ....................5 Technical Specifications ..................5 1.5 Appearance and Description ..................8 Chapter 2 Installation Guide ................

  • Page 4: Chapter 1 Product Outline

    H-IRD-V3 Chapter 1 Product Outline 1.1 Outline H-IRD-V3 is a Thor decoder which can receive signals from RF DVB-C, DVB- T/T2, DVB-S/S2/S2X, ATSC-T, ISDBT optional), ASI and IP. After demodulating, de-scrambling, re-multiplexing and decoding, it gives content out through various video/audio interfaces (HDMI, CVBS, 3G-SDI) or ASI or IP.

  • Page 5: Principle Chart

    H-IRD-V3 1.3 Flow Chart ASI Output CAM/CI 1 Tuner 1 and/or 2 IP Output (1 MPTS) CAM/CI 2 ASI 1 IP Output (16 SPTS) BISS and 2 1*Video Decoder 1 or 2*Audio Module 1.4 Technical Specifications 1 Tuner option, F type, (DVB-C/T/T2/S/S2/S2X/ATSC-T/ISDB-T)
  • Page 6 H-IRD-V3 Signal Strength - 65- -25dBm 1/2, 2/3, 3/4, 5/6, 7/8 Constellation QPSK Input Frequency 950~2150MHz QPSK/8PSK/16APSK: 0.5~45Msps Symbol rate 32APSK: 0.5~40Msps; DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10...
  • Page 7 H-IRD-V3 IP (1*MPTS & 16*SPTS) out over UDP, RTP/RTSP. 1000Base-T Ethernet interface (unicast / multicast) 2×ASI mirrored out, BNC interface Interface: 1* CVBS/HDMI/3G-SDI (SDI1 and SDI2 mirrored out) Decode: MPEG-2, MPEG4 AVC/H.264, HEVC/H.265 and AVS/AVS+ Video Resolution:1920×1080_60p, 1920×1080_60i, 1920×1080_50p; 1920×1080_50i; 1280×720_60P, Output 1280×720_50P;...

  • Page 8: Appearance And Description

    H-IRD-V3 Order Guide Please specify both Tuner Input option when you place order: H-IRD-V3S 1*DVB-S/S2/S2X tuner H-IRD-V3-ISDBT 1*DVB-ISDB-T tuner Tuner Input 1*ATSC-T tuner H-IRD-V3A 1*DVB QAM H-IRD-V3Q 1*DVB-T H-IRD-V3-DVBT 1.5 Appearance and Description Front Panel Illustration: LCD display for device control and configuration Indicator Area (to indicate locking status of tuner, ASI and IP input;...

  • Page 9: Chapter 2 Installation Guide

    HDMI video/audio output interface Power switch/Fuse/Socket/ Grounding Wire Chapter 2 Installation Guide 2.1 In the Box Make sure that everything is in the box prior to installation  H-IRD-V3  HDMI Cable  CVBS Cable  SDI Cable Tel: (800) 521-8467 Email: sales@thorfiber.com...

  • Page 10: Installation Preparation

    H-IRD-V3  Audio adapt cables  Power Cord  Ground Cable If any item is missing or mismatching with the list above, please contact our company. 2.2 Installation Preparation The main content of this chapter includes:  Checking the device for missing parts or damage during transport ...

  • Page 11: Wire's Connection

    H-IRD-V3 Requiring device power, air-conditioning power and lighting power are independent to each other. Device power requires Power AC power 100-240V 50-60Hz. Please carefully check before running. 2.2.3 Grounding Requirement  Coaxial cables outer conductor and isolation layer should keep proper electric conducting with the metal housing of device.

  • Page 12: Signal Cable Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to H-IRD-V3, set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.
  • Page 13 H-IRD-V3  ASI Input/output Cable Illustration:   Video & Audio output Cable Illustration: CVBS Cable HDMI Cable SDI Cable Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...

  • Page 14: Chapter 3 Front Panel Operation

    H-IRD-V3  Audio adapt cables Illustration: Chapter 3 Front Panel Operation The front panel of the H-IRD-V3 is the interface used to conveniently operate and manage the device without connecting to a PC; displayed on the LCD: Keyboard Function Description: MENU: Cancel current entered value, resume previous setting;...
  • Page 15 1 Input H-IRD-V3 can support 1 tuner input, 2 ASI inputs and 16 IP stream inputs. Users can enter ‘Input Sets’ to configure the tuner/IP parameters to receive the transport streams and select programs to mux out. It displays as below: Input 1.1 Tuner...
  • Page 16 H-IRD-V3  Tuner DVBS/S2: Press ENTER key to enter ‘1 Tuner DVB-S2’ (or ‘2 Tuner DVB-S2’), it displays as below: Input 1.1 Tuner 1.1.1 DVB-S2 1.1.2 DVB-S2 Tuner Parameters: Users can enter this menu to configure the tuner parameters separately to receive the tuner programs.
  • Page 17 H-IRD-V3 Tuner Parameters: DVB-T2 1.1.1.1 Frequency Settable via Enter/UP/DOWN button 1.1.1.2 Symbol rate Settable via Enter/UP/DOWN button 1.1.1.3 16/32/64/128/256 QAM Constellation 6/7/8M IP input parameters: IP input 1: Settable via Enter/UP/DOWN button 1.2.1 Input IP Settable via Enter/UP/DOWN button 1.2.2 Input Port 1.2.3 Protocol...
  • Page 18 CAM-A/CAM-B/BISS/Other for next step via Enter/Left/Right button. 3 Descrambling H-IRD-V3 supports 2 CI cards (Card A & Card B) to descramble programs from either encrypted RF, ASI or IP. Users can press ENTER key to enter ‘CI Card’ to configure the 2 cards respectively.
  • Page 19 H-IRD-V3  Max Bit rate CI Max Bitrate options range from 48-108Mbps. Move the triangle to select a value as principle: Actual Input Bitrate≤ Max Bitrate≤CI Max decrypting capacity Max Bitrate * 48 Mbps  Clock Mode Clock Mode ► Mode 1 Mode 2 ...
  • Page 20 H-IRD-V3 4 Decoder Press ENTER key to enter ‘Decoder’ to set the video to be decoded. H-IRD-V3 IRD supports one channel program to output at various interfaces at the same time (HDMI/SDI/CVBS). Enter this menu to select one program Decoder for decoding output.
  • Page 21 H-IRD-V3 Audio 1/2 Mode: Left/Right/Stereo/Mux CC 608/CC 708/AFD/TeletextLine: Disable/4-15 for optional 5 Output H-IRD-V3 supports 1MPTS and 16 SPTS over IP (UDP, RTP/RTSP) output and 1 ASI out. Output 5.1 General 5.2 MPTS Output Normal/GBK/USC-2/ISO-8859- General 5/UTF-8 ►5.1.1 Character Encoding Mux/Tuner 1/Tuner 2 5.1.2 MPTS Mode...
  • Page 22 H-IRD-V3 6 Network Users can set network parameters in this menu. Enter ‘Network’ sub-menus to separately set corresponding parameters. Network 6.1 NMS Config 6.2 Data 1 Config 6.1.1 NMS IP 6.2.1 IP Address 192.168.000.136 192.168.002.136 6.1.2 Subnet Mask 6.2.2 Subnet Mask 255.255.255.000...
  • Page 23 H-IRD-V3 7 System Users can set the system parameters in this menu. Enter ‘System’ sub-menus to separately set corresponding parameters. System 7.1 Save config 7.2 Load saved CFG 7.3 Factory reset 7.4 LCD time-out 7.5 Language Save Configuration? Choose yes to save settings.

  • Page 24: Chapter 4 Web-Based Nms Management

    H-IRD-V3 Chapter 4 Web-based NMS Management User not only can use front buttons for setting configuration, but also can control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from this device IP address; otherwise, it would cause IP conflict.

  • Page 25: Operation

    H-IRD-V3 4.2 Operation Summary: When we confirm the login, it displays the WELCOME interface as Figure-2 where users can have an overview of the device’s system information and uptime. User can click any item here to enter System information the corresponding interface to check information or set the parameters.
  • Page 26 H-IRD-V3 Click “Apply” button to apply the input data to start receive signals. Figure-4 Parameters → Setting: Click “Setting” for Multiplexing, CI descrambling and BISS descrambling operation. Mux: Input Area Output Area Operation Area Figure-5 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 27 H-IRD-V3 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: : To enable/disable the CA filter : To enable/disable the PID remapping To refresh the input program information To refresh the output program information Select the wanted input program(s) firstly and click this button to transfer the selected program(s) to the CAM-A for CI-descrambling setting.
  • Page 28 H-IRD-V3 Figure-6  Program Modification: The multiplexed program information can be modified by clicking the program in the ‘output’ area. For example, when clicking , it triggers a dialog box (Figure 7) where users can input new information. Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 29 Biss Descramble in the pop-up window to descramble the corresponding program. CI Card: H-IRD-V3 supports 2 CI cards (Card A & Card B) to descramble programs from either encrypted Tuners, ASI or IP. Users can click and enter ‘CI Card’ to configure the 2 cards respectively.
  • Page 30 H-IRD-V3 Figure-8  CI Max Bit rate CI Max Bitrate options range from 48-108Mbps. Select a value in the pull-down list as principle: Actual Input Bitrate≤ Max Bitrate≤CI Max decrypting capacity. NOTE! CI Max Bitrate can be defined according to the actual CAM conditions of the users after enabling ...
  • Page 31 H-IRD-V3 After configuring CI card parameters, click button to apply the input data to start descrambling the selected program(s). The program quantity to be descrambled will depend on the CAM/CI performance you apply to. BISS: Clicking “BISS”, it displays the interface where users can add the BISS keys and descramble the selected programs in the MUX Web page.
  • Page 32 Parameters → Decoder: H-IRD-V3 supports to decode one TV program to output via HDMI/SDI/CVBS. Users can configure the 1 Video/Audio output parameters in this Web page. Audio 2 will work only when your ordered version supports 2 audio decoding.
  • Page 33 H-IRD-V3 Figure-11 In this page, user can enable or disable the corresponding IP output, modify the output address and port, modify the output protocol, define which SPTS is for which program, and set the MPTS output bitrate in this page.
  • Page 34 H-IRD-V3 *Character Encoding: users can choose the option as per their language environments. *MPTS output mode: Mux, Tuner 1 and Tuner 2. Tuner 1 and Tuner 2 here means the tuner signal passthrough. *ASI Output Mode: Packet Mode and Byte Mode, usually it is Packet Mode by default.
  • Page 35 H-IRD-V3 Figure-12 System → Password: From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-13 where to set the login account and password for the web NMS. Figure-13 System → Configuration: From the menu on left side of the webpage, clicking “Configuration”, it will display the screen as Figure-14 where to save, restore, make factory set, backup and load your configurations.
  • Page 36 H-IRD-V3 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 37 H-IRD-V3 Figure-14 System → Firmware: From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-15 where to update firmware for the device. Figure-15 System → Date/Time: Users can set timezone and configure NTP server to update Date and Time in the device.
  • Page 38 H-IRD-V3 Figure-17 System → Reboot: Users can reboot the CPU of the device in this page, and it is not same as manually rebooting. Figure-18 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...

  • Page 39: Chapter 5 Troubleshooting

    H-IRD-V3 Chapter 5 Troubleshooting Thor H-IRD-V3 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All THOR products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by THOR.
