Thor Broadcast H-4K-UHD-QAM-IP Quick Setup Manual

Download this manual

H-4K-UHD-QAM-IP

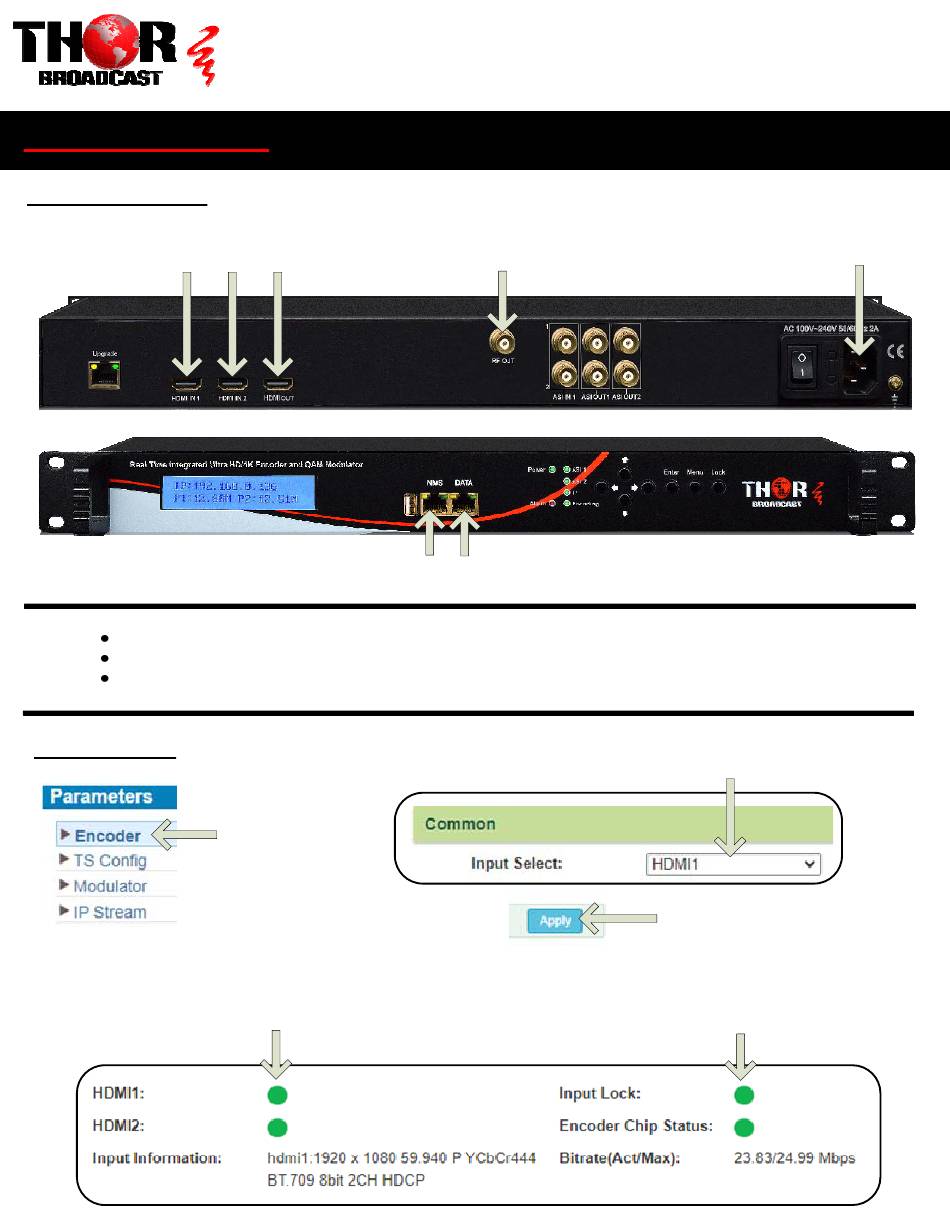

Step 1: Connections

IN1 IN2 OUT

Connect the NMS port to your PC using an ethernet cable

Open web browser and go to http://192.168.0.136

Step 2: Encoder

HDMI Link indicators

https://thorbroadcast.com

HDMI

1). Select

"Encoder" from

the main menu

must be green

800-521-8467

RF OUT

NMS DATA

sales@thorfiber.com

Quick Setup Guide

Connect included

Power Supply

2). Choose Input

3). Click "Apply" to

save changes

"Input Lock"

must be green

Need help?

Do you have a question about the H-4K-UHD-QAM-IP and is the answer not in the manual?

Page 1 800-521-8467 sales@thorfiber.com H-4K-UHD-QAM-IP Quick Setup Guide Step 1: Connections Connect included HDMI Power Supply RF OUT IN1 IN2 OUT NMS DATA Connect the NMS port to your PC using an ethernet cable Open web browser and go to http://192.168.0.136...
Page 2 Step 3: TS Config 1). Select “TS Config” 5). Programs assigned to 4). Click “ ” to output will appear in right assign selected pane. Click program name program to here for more options. Output 3). Check the box to select detected program 2).
Page 3 Step 3: TS Config Continued (Enabling VCT) 2). Check box to enable VCT Insert 1). Click “General” 3). Click “Apply” to save changes Step 4: Modulator 1). Select “Modulator” from the 2). Select Pencil icon to edit main menu IMPORTANT: Status must be green 3).
Page 4: For Example
Step 5: IP Stream 1). Select “IP Stream” from the main menu 2). Select Pencil icon to edit IMPORTANT: Status must be green 3). Check Box to Enable Channel 4). IP address and Port Number may be modified 5). Click “Apply” to save changes IMPORTANT: Streams are accessed via the DATA port.
Page 5 CHANGES WILL BE LOST from the main menu AFTER RESTART 2). Select the “Save” tab 3). Press “Save Config” button Scan for more info: 4). Confirmation message will appear briefly until saving is complete H-4K-UHD-QAM-IP Quick Setup Guide https://thorbroadcast.com 800-521-8467 sales@thorfiber.com...
