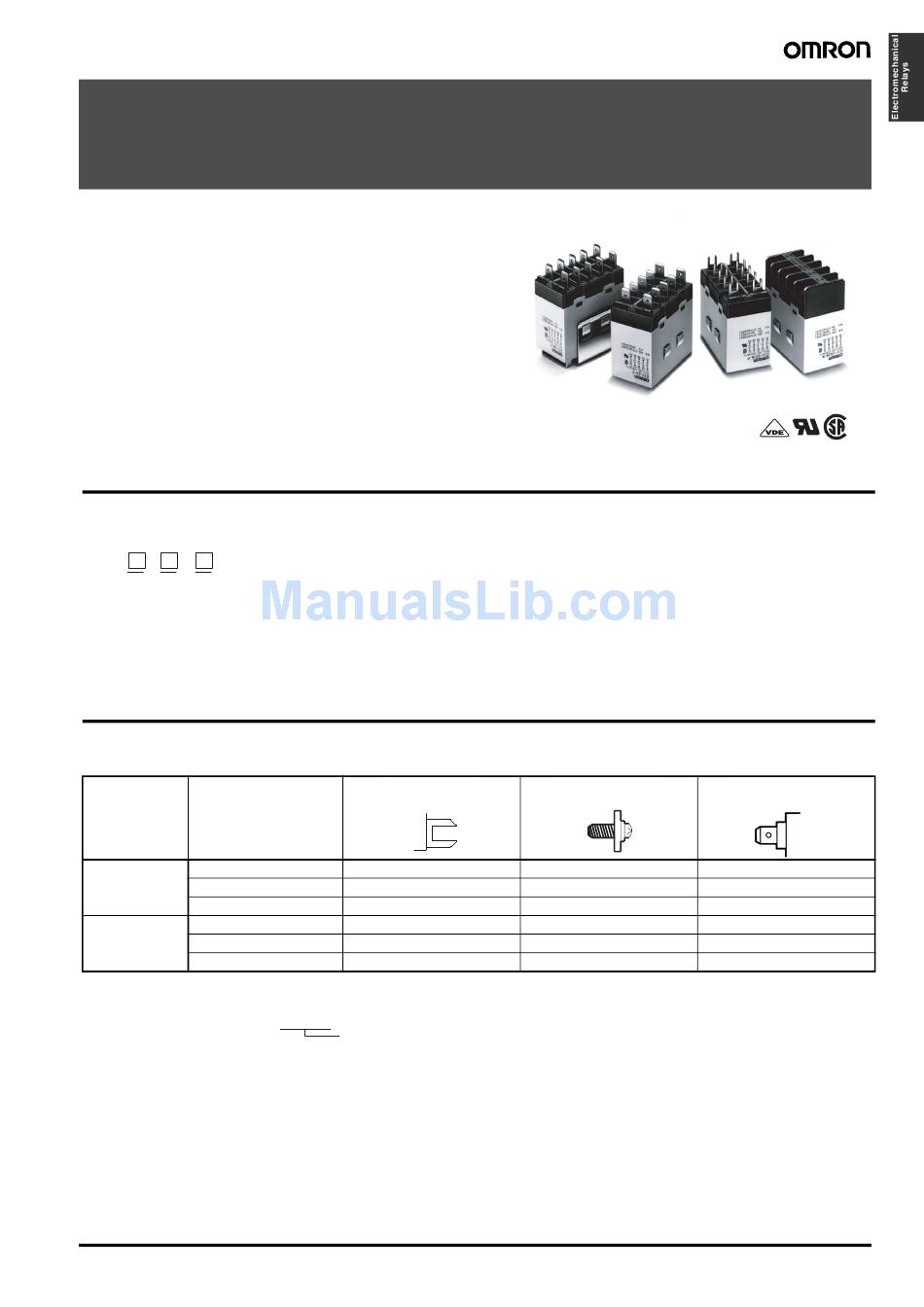

Power Relay
G7J
A High-capacity, High-dielectric-strength,
Multi-pole Relay Used Like a Contactor
• Miniature hinge for maximum switching power for motor loads
as well as resistive and inductive loads.
• No contact chattering for momentary voltage drops up to 50%
of rated voltage.
• Withstanding more than 4 kV between contacts that are differ-
ent in polarity and between the coil and contacts.
• Flame-resistant materials (UL94V-0-qualifying) used for all in-
sulation material.
• Standard models approved by UL and CSA.
Model Number Structure
■ Model Number Legend
G7J -
-
-
1. Contact Form
4A:
1
2
3
3A1B: 3PST-NO/SPST-NC
2A2B: DPST-NO/DPST-NC
Ordering Information
■ List of Models
Mounting type
Contact form
PCB mounting
4PST-NO
3PST-NO/SPST-NC
DPST-NO/DPST-NC
W-bracket
4PST-NO
(see note)
3PST-NO/SPST-NC
DPST-NO/DPST-NC
Note: These Relays need a W-bracket (sold separately) for mounting.
When ordering specify the voltage.
Example: G7J-4A-P 240 VAC
2. Terminal Shape
4PST-NO
P: PCB terminals
B: Screw terminals
T: Quick-connect terminals
(#250 terminal)
PCB terminals
G7J-4A-P, G7J-4A-PZ
G7J-3A1B-P, G7J-3A1B-PZ
G7J-2A2B-P
---
---
---
Rated coil voltage
3. Contact Structure
Z:
Bifurcated contact
None: Single contact
Note: For bifurcated contact type,
output is 1NO (4PST-NO) or
1NC (3PST-NO/SPST-NC).
Screw terminals
---
---
---
G7J-4A-B, G7J-4A-BZ
G7J-3A1B-B, G7J-3A1B-BZ
G7J-2A2B-B
Power Relay
Quick-connect
terminals
---
---
---
G7J-4A-T, G7J-4A-TZ
G7J-3A1B-T, G7J-3A1B-TZ
G7J-2A2B-T
G7J
A-57
