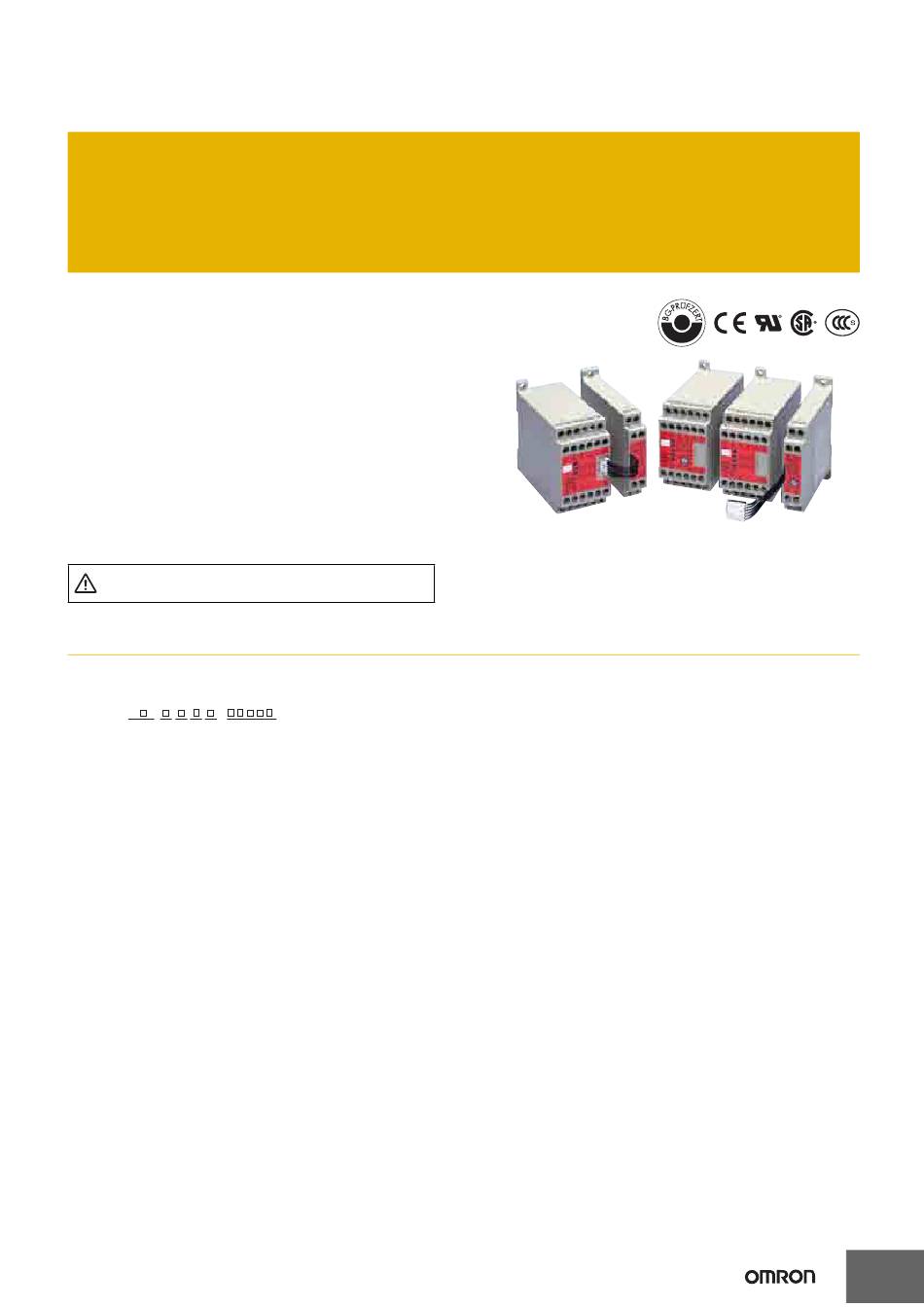

Safety Relay Unit
G9SA
The G9SA Series Offers a Complete
Line-up of Compact Units.
• Four kinds of 45-mm wide Units are available:
A 3-pole model, a 5-pole model, and models with 3 poles
and 2 OFF-delay poles, as well as a Two-hand Controller.
Also available are 17.5-mm wide Expansion Units with 3
poles and 3 OFF-delay poles.
• Simple expansion connection.
• OFF-delay models have 15-step OFF-delay settings.
• Conforms to EN standards. (BG approval)
• Both DIN track mounting and screw mounting are possible.
Be sure to read the "Safety Precautions" on page 14
Model Number Structure
Model Number Legend
G9SA-
-
1 2 3 4 5
1. Function
None: Emergency stop
EX:
Expansion Unit
TH:
Two-hand Controller
2. Contact Configuration (Safety Output)
0:
None
3:
3PST-NO
5:
5PST-NO
3. Contact Configuration (OFF-delay Output)
0:
None
2:
DPST-NO
3:
3PST-NO
4. Contact Configuration (Auxiliary Output)
0:
None
1:
SPST-NC
5. Input Configuration
None: 1-channel or 2-channel input possible
6. OFF-delay Time (Max. setting time)
None: No OFF-delay
T075: 7.5 seconds
T15:
15 seconds
T30:
30 seconds
Note: Please see "Ordering Information" on page 2 for the actual models that can be ordered.
6
CSM_G9SA_DS_E_4_1
.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G9SA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron G9SA

Summary of Contents for Omron G9SA

  • Page 1 E-mail: info@intechchennai.com Website: www.intechchennai.com Safety Relay Unit G9SA CSM_G9SA_DS_E_4_1 The G9SA Series Offers a Complete Line-up of Compact Units. • Four kinds of 45-mm wide Units are available: A 3-pole model, a 5-pole model, and models with 3 poles and 2 OFF-delay poles, as well as a Two-hand Controller.

  • Page 2: Ordering Information

    Model 24 VAC/VDC 3PST-NO SPST-NC 2 channels G9SA-TH301 100 to 240 VAC Expansion Unit The Expansion Unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301. Main contacts Auxiliary contact Model 3PST-NO SPST-NC G9SA-EX301 Expansion Units with OFF-delay Outputs The Expansion Unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.

  • Page 3: Specifications Ratings

    G9SA Specifications Ratings Power Input Item Model G9SA-301/TH301 G9SA-501 G9SA-321-T@ 24 VAC/VDC:24 VAC, 50/60 Hz, or 24 VDC Power supply voltage 100 to 240 VAC:100 to 240 VAC, 50/60 Hz Operating voltage range 85% to 110% of rated power supply voltage 24 VAC/VDC: 1.8 VA/1.7 W max.
  • Page 4 G9SA Connections Internal Connections G9SA-301 (24 VAC/VDC) G9SA-301 (100 to 240 VAC) A1 A2 13 23 33 41 Control Control circuit circuit 14 24 34 42 G9SA-501 (24 VAC/VDC) G9SA-501 (100 to 240 VAC) A1 A2 13 23 33 43 53 61...
  • Page 5 G9SA-301: Safety Output Contacts 13-14, 23-24, 33-34. Auxiliary Contact 41-42. G9SA-501: Safety Output Contacts 13-14, 23-24, 33-34, 43-44, 53-54. Auxiliary Contact 61-62. G9SA-321-T@: Safety Output Contacts 13-14, 23-24, 33-34. Safety OFF-delay Output Contact 43-44, 53-54. Auxiliary Contact 61-62. *3. Terminals A and B...

  • Page 6: Terminal Arrangement

    Note 1: The OFF-delay time setting switch is R2.3 111 max. found on the G9SA-321-T@ only. 2: The K1 to K4 indicators light when the NO contacts of internal relays K1 to K4 close. * Do not remove unless an Expansion Unit is being used.

  • Page 7: Application Examples

    (D4B-N, D4N, D4F) S2: Limit switch (NO) KM1 and KM2: Magnetic Contactor M: 3-phase motor Note: This circuit achieves Safety Category 4. G9SA-301 (24 VAC/VDC) with 2-channel Limit Switch Input/Manual Reset Timing Chart Limit switches S1 and S2 Reset switch S3...
  • Page 8 G9SA G9SA-301 (100 to 240 VAC) with 2-channel Limit Switch Input/Auto-reset Timing Chart Limit switches S1 and S2 K1 and K2 (NC) K1 and K2 (NO) Feedback loop KM1 and KM2 (NC) KM1 and KM2 (NO) Open Safety Limit Switch...
  • Page 9 G9SA G9SA-321-T@ (24 VAC/VDC) with 2-channel Limit Switch Input/Manual Reset Feedback loop Open Off delay Control timer circuit Safety Limit Switch with direct opening mechanism (NC) Operation instruction (D4B-N, D4N, D4F) Motor controller Limit switch (NO) Reset switch KM1 and KM2: Magnetic Contactor 3-phase motor Note: This circuit achieves Safety Category 4.
  • Page 10 G9SA G9SA-321-T@ (24 VAC/VDC) + G9SA-EX031-T@ with 2-channel Limit Switch Input/Manual Reset Feedback loop Open Off delay timer Off delay Control timer circuit Safety Limit Switch with direct opening mechanism (NC) (D4B-N, D4N, D4F) Limit switch (NO) Operation Reset switch...
  • Page 11 G9SA G9SA-301 (24 VAC/VDC) with 2-channel Safety Sensor/Manual Reset (PNP models only) Timing Chart F3SJ-A Incident Interrupted Reset switch S1 K1 and K2 Emitter Receiver (NC) K1 and K2 (NO) KM1 and KM2 (NC) KM1 and KM2 (NO) PLC input...
  • Page 12 G9SA G9SA-TH301 (24 VDC) with 2-hand Inputs Timing Chart S11 (NC) S11 (NO) S12 (NC) Feedback loop S12 (NO) KM1 and KM2 (NC) KM1 and KM2 (NO) 0.5 s max. Input time difference operates only when the difference is 0.5 s max.
  • Page 13 G9SA G9SA-501 (24 VAC/VDC) and G9SA-EX301 with 2-channel Limit Switch Input/Manual Reset Feedback loop Open Control circuit Safety Limit Switch with direct opening mechanism (NC) (D4B-N, D4N, D4F) Limit switch (NO) Reset switch KM1 and KM2: Magnetic Contactor 3-phase motor...
  • Page 14 1.0 to 1.5 mm When only channel 1 of the 2-channel input turns OFF, the safety • Tighten each screw to a torque of 0.78 to 1.18 N·m, or the G9SA output is interrupted. In order to restart when this happens, it is may malfunction or generate heat.
