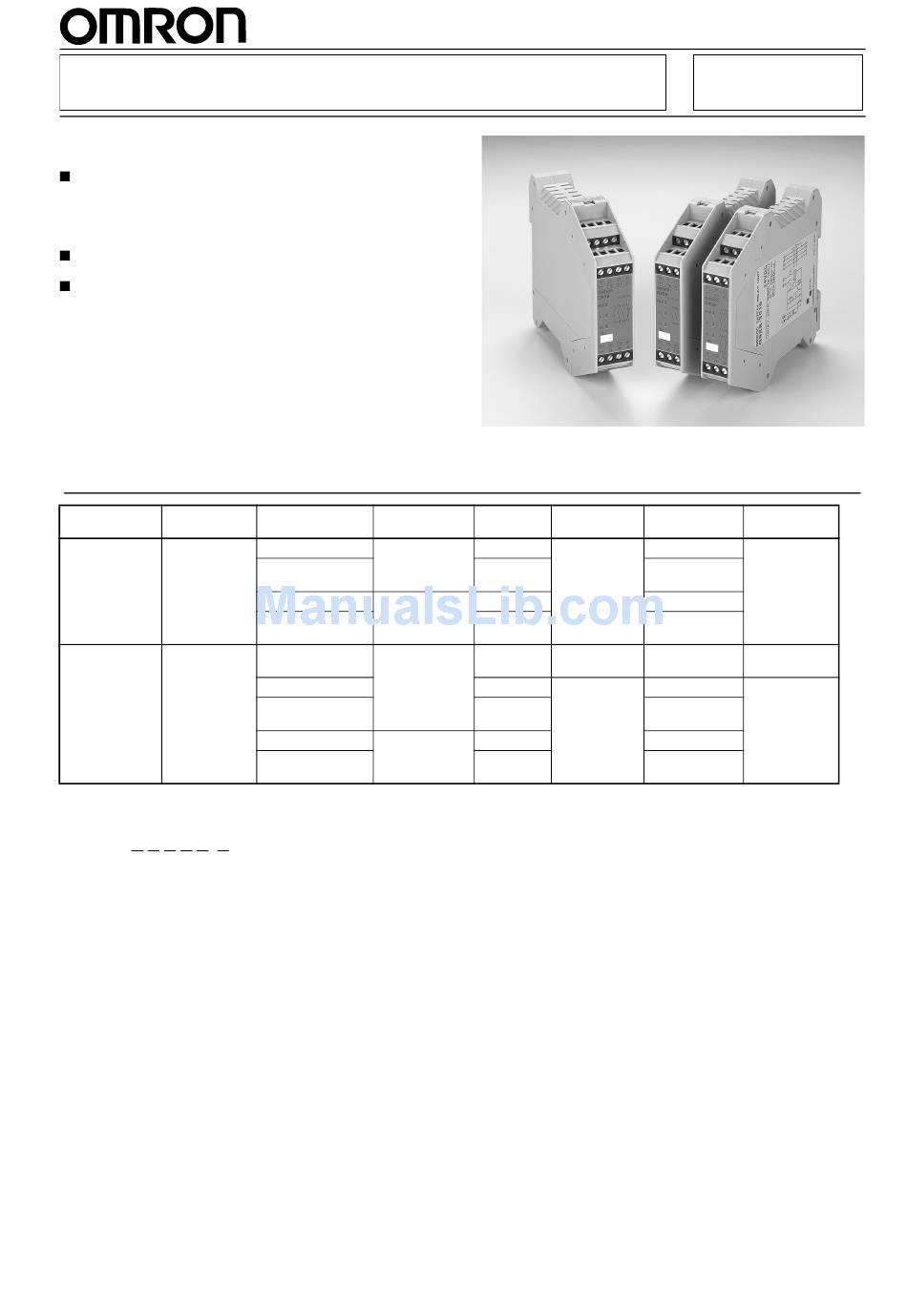

Safety Relay Unit
Ultra Slim Safety Relay Unit
Models of width 17.5 mm (smallest Unit in the
world as of January 2001) available with 2 or 3
poles. Models of width 22.5 mm with 3 poles also
available.
EN standards (TÜV approval) pending.
DIN track mounting possible.
Ordering Information
Main contacts
Auxiliary
contact
DPST-NO
None
3PST-NO
SPST-NC
Model Number Legend:
G 9 S B - @ @ @ @ @ @
1 2 3 4 5
6
1. Function
None: Emergency stop
2. Contact Configuration (Safety Output)
2:
DPST-NO
3:
3PST-NO
3. Contact Configuration (OFF-delay Output)
0:
None
4. Contact Configuration (Auxiliary Output)
0:
None
1:
SPST-NC
5. Input Configuration
None: 1-channel or 2-channel input possible
0:
None (direct breaking)
2:
2-channel input
Number of input
Reset mode
channels
2 channels
Auto-reset
1 channel or 2
channels
2 channels
Manual-reset
1 channel or 2
channels
None (direct
Auto-reset
breaking)
2 channels
1 channel or 2
channels
2 channels
Manual-reset
1 channel or 2
channels
Input type
Rated
voltage
Inverse
24 VAC/VDC
G9SB-2002-A
+ common
G9SB-200-B
Inverse
G9SB-2002-C
+ common
G9SB-200-D
---
24 VDC
G9SB-3010
Inverse
24 VAC/VDC
G9SB-3012-A
+ common
G9SB-301-B
Inverse
G9SB-3012-C
+ common
G9SB-301-D
6. Miscellaneous
A:
Auto-reset, inverse input
B:
Auto-reset, + common input
C:
Manual-reset, inverse input
D:
Manual-reset, + common input
G9SB
Model
Category
4
3
4
1
