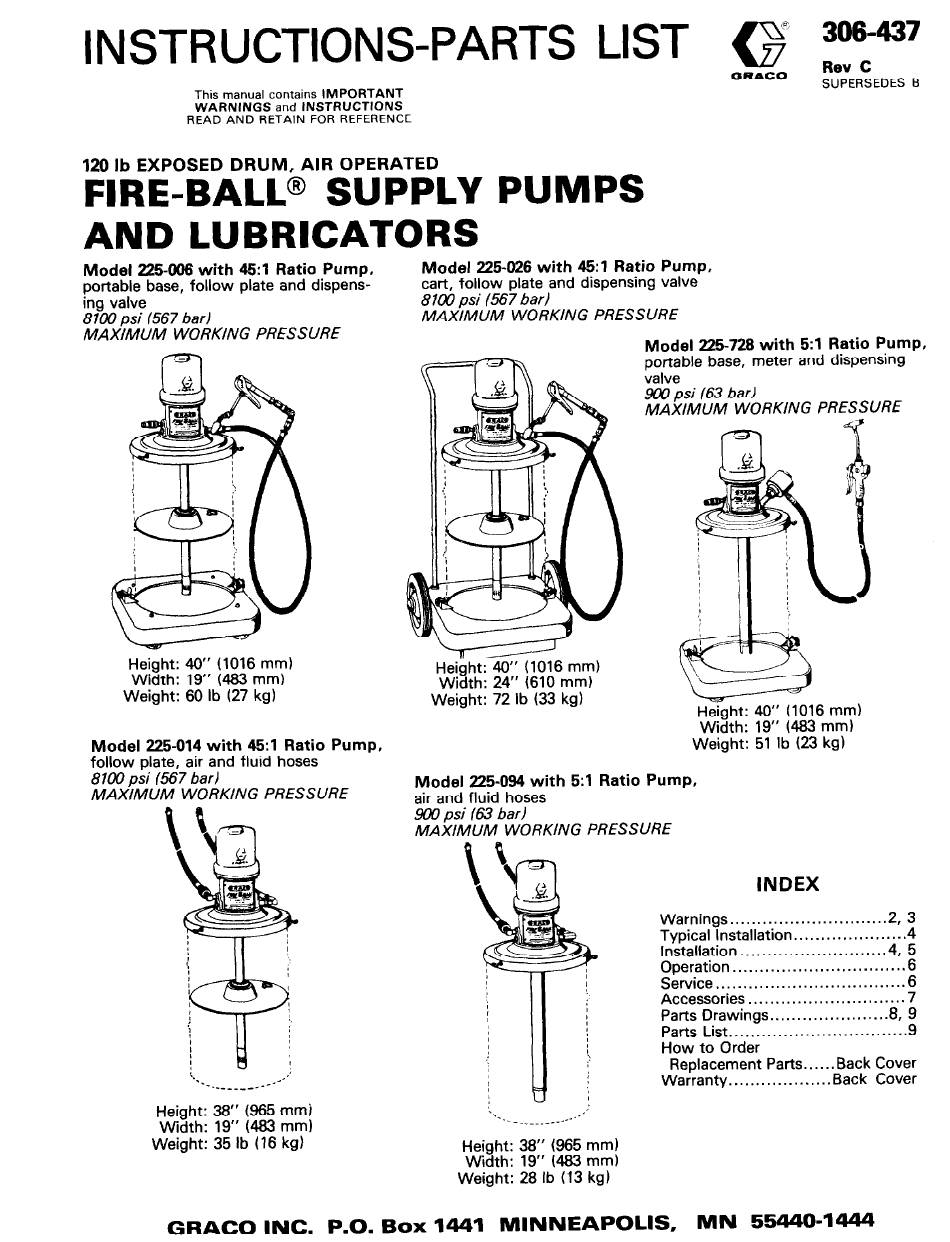

Graco FIRE-BALL 225-006 Instructions And Parts List

INSTRUCTIONS-PARTS LIST G te!ta7
ORPCO
This manual contains IMPORTANT
SUPERSEDES I3
WARNINGS and INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
120 lb EXPOSED DRUM, AIR OPERATED
FIRE-BALL@ SUPPLY PUMPS
AND LUBRICATORS

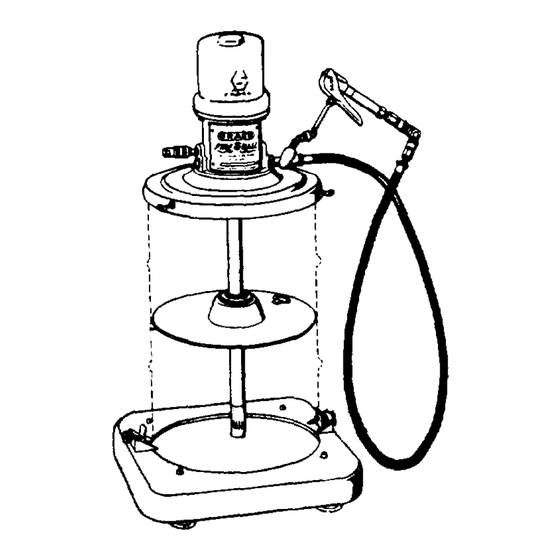

Model 225-006 with 45:l Ratio Pump,
portable base, follow plate and dispens-
ing valve
8100 psi (567 bar)
MAXIMUM WORKING PRESSURE
Height: 40" (1016 mm)
Width: 19" (483 mm)
Weight: 60 lb (27 kg)
Model 225-014 with 45:l Ratio Pump,
follow plate, air and fluid hoses
8100 psi (567 bar)
MAXIMUM WORKING PRESSURE
0.
-- .______- --
_-.
Height: 38" (965 mm)
Width: 19" (483 mm)
Weight: 35 lb (16 kg)
Model 225-026 with 45:l Ratio Pump,
cart, follow plate and dispensing valve
8 Icx)
psi (567 bar)
MAXIMUM WORKING PRESSURE
Height:-40"
(1016 mm)
Width: 24" (610 mm)
Weight: 72 lb (33 kg)
Model 225-728 with 5:l Ratio Pump,
portable base, meter and dispensing
valve
900 psi (63 bar)
MAXIMUM WORKING PRESSURE
Height: 40" (1016 mm)
Width: 19" (483 mm)
Weight: 51 lb (23 kg)
Model 225-094 with 5:l Ratio Pump,
air and fluid hoses
900 psi (63 bar)
MAXIMUM WORKING PRESSURE
\.
,'
.I
Height: 38" (965 mm)
Width: 19" (483
mm) __.- _... .- . .--
Weight: 28 lb (13 kg)
INDEX
Warnings..
.......................... .2, 3
Typical Installation..
..................
.4
Installation
...........................
4, 5
Operation ................................
Service ...................................
Fi
Accessories ............................
.7
Parts Drawings..
................... .8, 9
Parts List ................................
.9
How to Order
Replacement Parts ...... Back Cover
Warranty..
.................
Back Cover
GRACO INC. P.O. Box 1441 MINNEAPOLIS, MN 55440-1444
