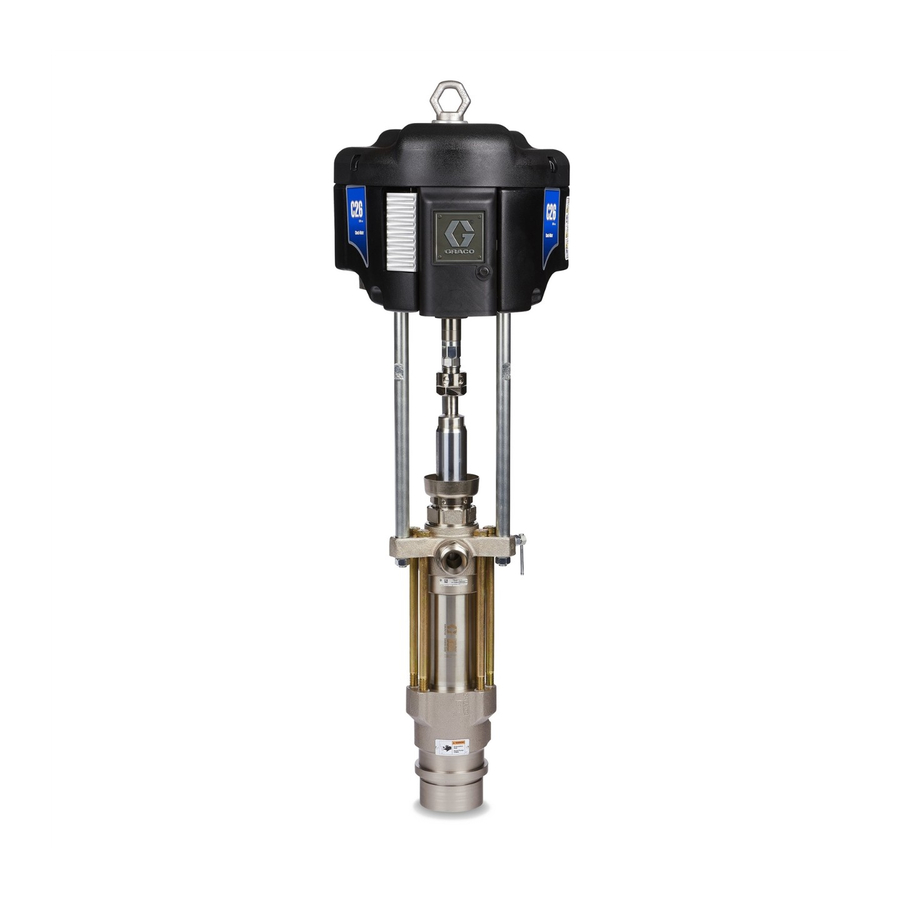

Graco Power-Flo Senator Instructions Manual

With priming piston and severe-duty displacement pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

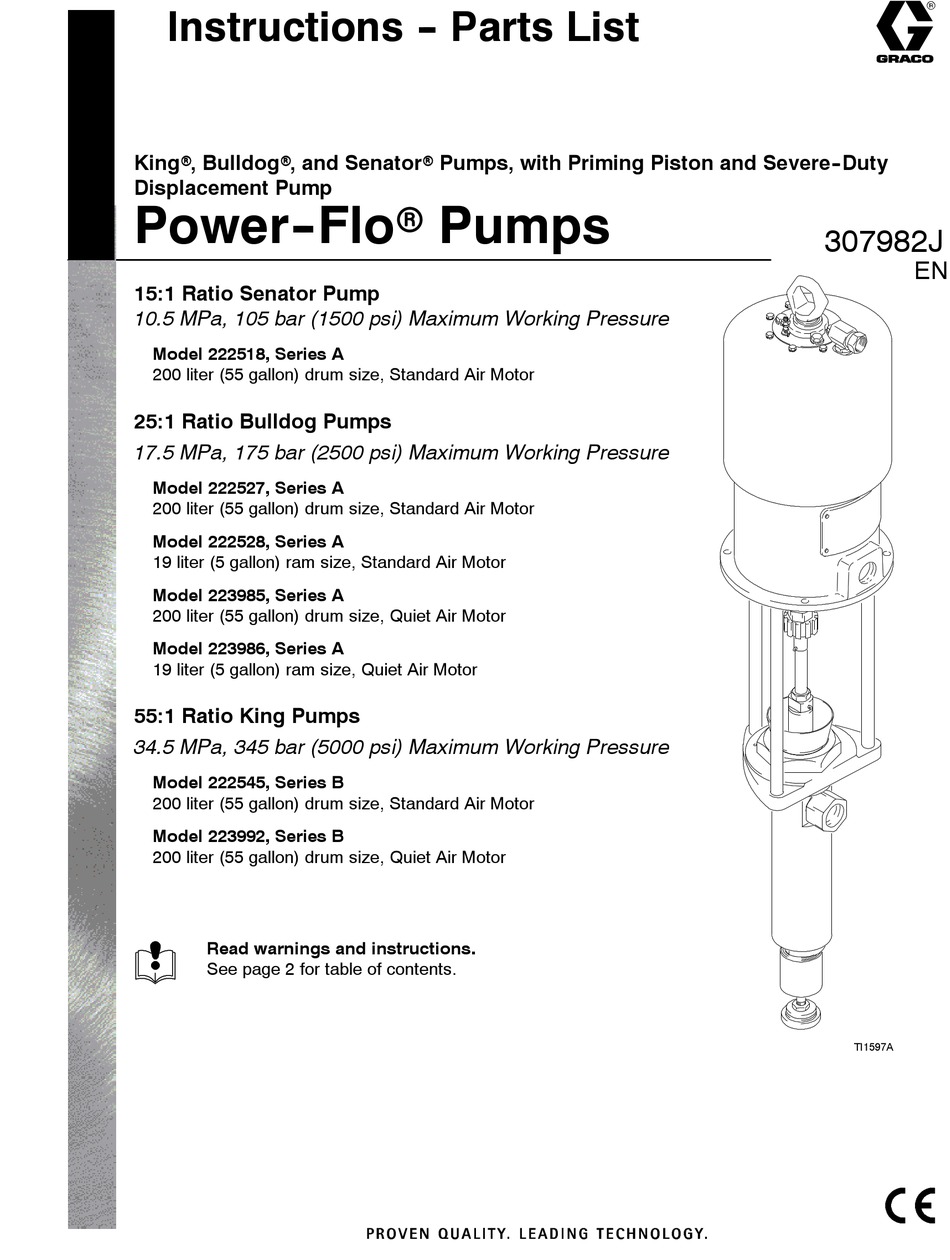

Instructions - - Parts List
Kingr, Bulldogr, and Senatorr Pumps, with Priming Piston and Severe- -Duty
Displacement Pump
Power- -Flor Pumps
15:1 Ratio Senator Pump
10.5 MPa, 105 bar (1500 psi) Maximum Working Pressure
Model 222518, Series A
200 liter (55 gallon) drum size, Standard Air Motor
25:1 Ratio Bulldog Pumps
17.5 MPa, 175 bar (2500 psi) Maximum Working Pressure
Model 222527, Series A
200 liter (55 gallon) drum size, Standard Air Motor
Model 222528, Series A
19 liter (5 gallon) ram size, Standard Air Motor
Model 223985, Series A
200 liter (55 gallon) drum size, Quiet Air Motor
Model 223986, Series A
19 liter (5 gallon) ram size, Quiet Air Motor
55:1 Ratio King Pumps
34.5 MPa, 345 bar (5000 psi) Maximum Working Pressure
Model 222545, Series B
200 liter (55 gallon) drum size, Standard Air Motor
Model 223992, Series B
200 liter (55 gallon) drum size, Quiet Air Motor
Read warnings and instructions.
See page 2 for table of contents.
307982J
EN
TI1597A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power-Flo Senator and is the answer not in the manual?

Questions and answers

Related Manuals for Graco Power-Flo Senator

Summary of Contents for Graco Power-Flo Senator

  • Page 1 Instructions - - Parts List Kingr, Bulldogr, and Senatorr Pumps, with Priming Piston and Severe- -Duty Displacement Pump Power- -Flor Pumps 307982J 15:1 Ratio Senator Pump 10.5 MPa, 105 bar (1500 psi) Maximum Working Pressure Model 222518, Series A 200 liter (55 gallon) drum size, Standard Air Motor 25:1 Ratio Bulldog Pumps 17.5 MPa, 175 bar (2500 psi) Maximum Working Pressure Model 222527, Series A...

  • Page 2: Table Of Contents

    D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. Use genuine Graco parts and accessories.

  • Page 3: Warnings

    WARNING INJECTION HAZARD Spray from the valve, leaks or ruptured components can inject fluid into your body and cause ex- tremely serious injury, including the need for amputation. Fluid splashed in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin is a serious injury.
  • Page 4 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and re- sult in a fire or explosion and serious injury. D Ground the equipment and the object being sprayed. Refer to Grounding on page 6. D If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately.
  • Page 5 Notes 307982...

  • Page 6: Installation

    Installation and Parts drawings. 5. Fluid supply container: According to your local code NOTE: Always use Genuine Graco Parts and Acces- sories, available from your Graco distributor. 6. Object being sprayed: According to your local code.
  • Page 7 For assistance in designing a system to meet your needs, contact your A bleed-type master air valve (G) and a fluid drain Graco distributor. valve (J) are required in your system. These acces- The Dimensional Drawings on page 25 provide...

  • Page 8: Operation

    5. Hold a metal part of the gun/valve firmly to the side of a grounded metal pail, and trigger the gun/valve Keep the wet-cup (136) one-half full with Graco Throat to relieve pressure. Seal Liquid (TSL), to help prevent the fluid being pumped from drying on the displacement rod and 6.
  • Page 9 Operation Starting and Adjusting the Pump WARNING 1. Make sure the air regulator (H) is closed. To reduce the risk of overpressurizing your system, which could result in component rupture and cause 2. Open the bleed--type master air valve (G). serious bodily injury, never exceed 0.7 MPa, 7 bar (100 psi) incoming air pressure to the pump.
  • Page 10 Operation Shutdown and Care of the Pump Flushing To reduce the risk of fluid injection injury, static spark- ing, or splashing in the eyes or on the skin, relieve the WARNING pressure, and remove the spray tip (spray guns or spray valves only) before flushing.
  • Page 11 Notes 307982...

  • Page 12: Troubleshooting

    Troubleshooting Before servicing this equipment, always make sure to WARNING relieve the pressure. To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the NOTE: Check all possible problems and solutions Pressure Relief Procedure on page 8. before disassembling the pump.
  • Page 13 Troubleshooting Continued from the previous page. Problem Cause Solution Erratic or accelerated pump Exhausted fluid supply Refill and prime. speed Fluid too heavy for pump to prime Use bleeder valve (See Operation on page 8). Use inductor or ram unit. Held open or worn piston valve or Clear valve;...

  • Page 14: Displacement Pump Service

    Displacement Pump Service WARNING To reduce the risk of serious bodily injury, including injection, splashing in the eyes, or injury from moving parts, always follow the Pressure Relief Procedure on page 8 when checking or servicing any pat of the spray/dispensing system, when installing, cleaning, or changing spray tips/nozzles, and whenever you stop spraying/dispensing.
  • Page 15 All Models 13. Remove the cylinder (111) and o--rings (125). If the cylinder cannot be removed easily, contact your Graco distributor for assistance. 14. Inspect the outer surface of the displacement rod (108) and the inner surface of the pump cylinder (111) for scoring and wear by holding them up to a light or running a finger over the surface.
  • Page 16 Displacement Pump Service 3. Loosely install the wet--cup/packing nut (136) into 5. Slide the gland/packing stack supplied in Repair the pump housing (109). Kit 222101 down onto the piston valve (112). Do not disassemble the packing stack, and be sure 4.
  • Page 17 Displacement Pump Service 6. Install the piston ball (132) in the piston valve 11. Place an o--ring (124{) around the intake cylinder housing (110). Apply medium grade thread sealant (117). Screw the cylinder into the pump housing to the threads of the piston valve (112) and hous- (109).
  • Page 18 Parts 15:1 Senator, 25:1 Bulldog, and 55:1 King Pumps Standard Bulldog Air Motor Shown. Apply sealant to threads. Apply sealant to threads. Torque to Lips of v--packings must face down. 81--102 NSm (60--76 ft-lb). Torque to 420--460 NSm (310--340 ft-lb). Torque to 129--149 NSm (94--110 ft-lb).

  • Page 19: 15:1 Ratio Senator Pump

    Parts 19 liter (5 gallon) Drum Size Model 222528, Series A Model 223986, Series A 25:1 Ratio Bulldog Pump with Standard Air Motor 25:1 Ratio Bulldog Pump with Quiet Air Motor Includes items 1--19, below Includes items 1--19, below Ref. Ref.
  • Page 20 Parts Displacement Pump 222639, Series B With UHMWPE and PTFE Packings Includes items 107--160, below Ref. Ref. Part No. Description Qty. Part No. Description Qty. 178080 ADAPTER, outlet; M39(m) x 1 in. npt(f) 1 178081 PLATE, tie 185030 ROD, displacement 178079 NUT, cylinder;...
  • Page 21 Notes 307982...
  • Page 22 Technical Data - - 15:1 Senator Pump Category Data Maximum working pressure 10.7 MPa, 107 bar (1560 psi) Air operating range .07--0.7 MPa, 0.7--7 bar (10--100 psi) Pump cycles per 3.8 liters (per 1 gallon) Maximum recommended pump speed 60 cycles per minute for intermittent operation Air inlet size 3/4 npsm(f)
  • Page 23 Technical Data - - 25:1 Bulldog Pump Category Data Maximum working pressure 17.5 MPa, 175 bar (2500 psi) Air operating range .07--0.7 MPa, 0.7--7 bar (10--100 psi) Pump cycles per 3.8 liters (per 1 gallon) Maximum recommended pump speed 60 cycles per minute for intermittent operation Air inlet size 3/4 npsm(f)
  • Page 24 Technical Data - - 55:1 King Pump Category Data Maximum working pressure 34.5 MPa, 345 bar (5000 psi) Air operating range .07--0.7 MPa, 0.7--7 bar (10--100 psi) Pump cycles per 3.8 liters (per 1 gallon) Maximum recommended pump speed 60 cycles per minute for intermittent operation Air inlet size 3/4 npsm(f)

  • Page 25: Dimensions

    Dimensions Pump Model 222518 222527 223985 222528 222545 223992 223986 1194 mm 1365 mm (47 in.) (53.75 in.) 654 mm 826 mm (25.75 in.) (32.5 in.) 236 mm 403 mm (9.3 in.) (15.85 in.) 68.2 mm 68.2 mm (2.69 in.) (2.69 in.) Air Motor Mounting 307982...

  • Page 26: Graco Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
