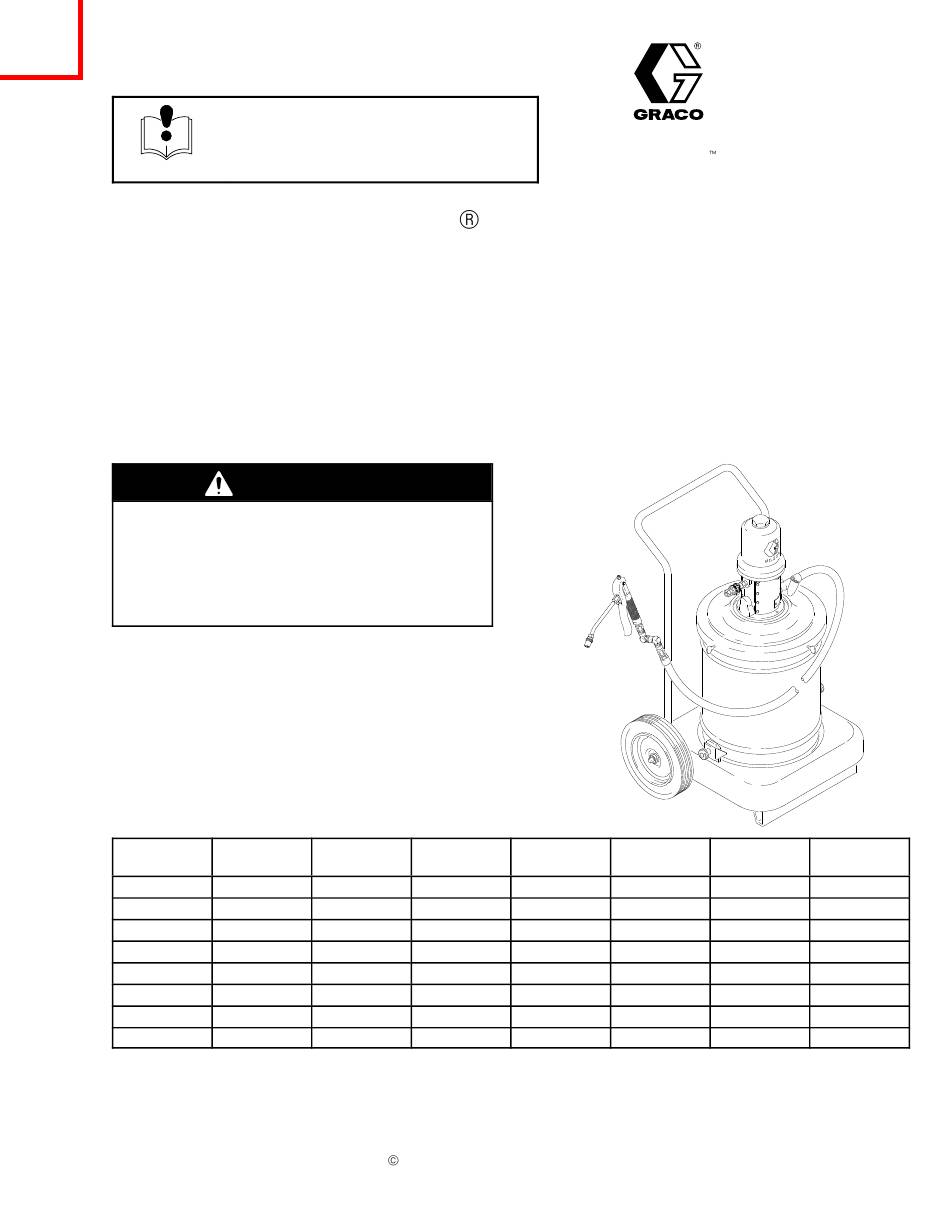

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
50:1 Ratio Fire–Ball
Lubrication Pumps
5000 psi (35.0 MPa, 350 bar) Maximum Working Pressure
100 psi (0.7 MPa, 7 bar) Maximum Air Working Pressure
Model 226–012 only
8000 psi (56.0 MPa, 560 bar) Maximum Working Pressure
160 psi (1.1 MPa, 11 bar) Maximum Air Working Pressure
WARNING
These systems are designed to be used only in
pumping non-corrosive and non-abrasive lubricants
and greases. Any other use of the system can
cause unsafe operating conditions and result in
component rupture, fire, or explosion which can
cause serious injury, including fluid injection.
Portable units for heavy grease
Model No.
Size
225–006
120 lb
225–026
120 lb
222–245
120 lb
225–773
35–50 lb
225–003
35–50 lb
225–827
35–50 lb
222–069
25–50 lb
226–012
50 lb
*Base Type:
P = Portable
T = 2 Wheel Truck
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Base Type*
Dispense
Kit
P
X
T
X
T
X
T
X
P
X
X
X
T
X
COPYRIGHT 1988, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
First choice when
quality counts.
Model 225–773 shown
Cover
Shield
X
X
X
X
X
X
X
307–878
Rev. M
Supersedes Rev. G
PCN K
and unreleased Rev. L
01514
Follow
Pail
Plate
X
X
X
X
X
X
X
X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fire-Ball 226-012 and is the answer not in the manual?

Questions and answers

Summary of Contents for Graco Fire-Ball 226-012

  • Page 1 35–50 lb – 222–069 25–50 lb – 226–012 50 lb *Base Type: P = Portable T = 2 Wheel Truck GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1988, GRACO INC. Graco Inc. is registered to I.S. EN ISO 9001...
  • Page 2: Caution Symbol

    ....... injury or death if you do not follow the instructions. Graco Phone Number ......
  • Page 3 This equipment is for professional use only. Read all the instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. Do not alter or modify this equipment. Use only genuine Graco parts and accessories.
  • Page 4: General Information

    Order Part parts drawing. No. 222–011, Ground wire and clamp. See Fig 1. Air and fluid hoses: use only grounded hoses. NOTE: Always use Genuine Graco Parts and Acces- Air compressor: follow manufacturer’s recommen- sories, available from your Graco distributor. dations Fluid supply container: according to local code.
  • Page 5: Air Line Accessories

    Installation Air Line Accessories See page 11 for recommended air accessories and 2c, 2d installation. Models 225–773 & 225–827 (Fig. 2) 1. Model 225–773 only: Assemble the truck as shown in the parts drawing on page 15. Secure the truck pail (5) to the truck base with the pointed hold down clamps (3c) and thumbnuts (3d).
  • Page 6 Installation Model 225–003 (Fig. 3) 1. Assemble the base (3) as shown in the parts drawing on page 16. 2. Remove the fluid outlet adapter included with the 2c, 2d pump and screw the holster (6) into the pump outlet, using thread sealant. 3.
  • Page 7 Installation Models 225–006 & 225–026 (Fig. 4) 2c, 2d 1. For Model 225–026: Assemble the truck (3) as shown in the parts drawing on page 15. For Model 225–006: assemble the base (3) as shown in the parts drawing on page 16. 2.
  • Page 8 Installation Model 222–069 (Fig. 5) 2c, 2d 1. Remove the cover from the pail and scoop the lubricant from the center to the sides of the pail to make its surface concave. 2. Center the follow plate (5) in the pail opening. Press the plate firmly downward and rotate it over the lubricant surface to eliminate air pockets and prevent channeling.
  • Page 9 Installation Model 222–245 (Fig. 6) 1. Assemble the cart (6) as shown at right. Use only 2 of the 4 brackets (5d) supplied. Install the rear positions, of the drum shelf (6b) as shown. 2. place an opened 120lb drum of grease on the drum shelf.
  • Page 10 Installation Model 226–012 (Fig. 7) 1. Assemble the truck as shown in the Parts Drawing on page 15. 2c, 2d 2. Remove the fluid outlet adapter included with the pump and screw the holster (6) into the pump outlet, using thread sealant. 3.
  • Page 11: Typical Installation

    Installation Typical Installation Fluid Dispense Line Pump Ground Wire (required) Air Regulator Main Air Supply Line Air Filter Pump Lubricator Pump Runaway Valve Bleed–type Master Air Valve (required) Quick–disconnect Couple and Nipple 01519 Air Line and Accessories WARNING Trapped air can cause the air motor to cycle unex- NOTE: Install air line accessories in the order shown in pectedly, causing serious injury if you are adjusting the Typical Installation.
  • Page 12: Pressure Relief Procedure

    Operation Pressure Relief Procedure NOTE: When the pump is primed, and with sufficient air supplied, the pump starts when the dispensing valve is opened and shuts off when it is closed. WARNING 5. Set the air pressure to each pump at the lowest INJECTION HAZARD pressure needed to get the desired results.
  • Page 13 Notes 307–878...
  • Page 14 Parts Ref. No. 2 Dispense Kit 222–070 Includes items 2a–2e Part No. Description Qty. 109–151 HOSE, 1/4 npt(mbe); 12 ft (3.7 m) lg 223–903 VALVE 208–536 COUPLER, quick disconnect 169–971 NIPPLE, quick disconnect 202–577 Z-SWIVEL 01520 Model 225–827 35–50 lb pail size Part No.
  • Page 15 Parts Model 225–026 120 lb drum size Part No. Description Qty. 203–869 PUMP, 50:1 Ratio Fire-Ball See manual 306–517 for parts 222–070 DISPENSE KIT; See parts list on page 14 203–650 TRUCK, 2 wheel; See parts list below 204–574 COVER; See manual 306–345 for parts 220–654 FOLLOW PLATE;...
  • Page 16 Parts Model 225–006 120 lb drum size Part No. Description Qty. 203–869 PUMP, 50:1 Ratio Fire-Ball See manual 306–517 for parts 222–070 DISPENSE KIT; See parts list on page 14 203–622 PORTABLE BASE; See parts list below 204–574 COVER; See manual 306–345 for parts 220–654 FOLLOW PLATE;...
  • Page 17 Parts Ref. No. 2 Dispense Kit 222–383 Includes items 2a–2d Part No. Description Qty. 109–154 HOSE 223–903 VALVE 208–536 COUPLER, quick disconnect 169–971 NIPPLE, quick disconnect 202–577 Z-SWIVEL 01520 Model 225–003 35–50 lb pail size Part No. Description Qty. 207–609 PUMP, 50:1 ratio Fire-Ball;...
  • Page 18 Parts Model 226–012 50 lb pail size Part No. Description Qty. 207–609 PUMP, 50:1 Fire-Ball See manual 306–517 for parts 222–070 DISPENSE KIT; See parts list on page 14 203–650 TRUCK, portable; See parts list on page 15 203–664 ELEVATOR 204–351 FOLLOW PLATE 203–976...
  • Page 19 Notes 307–878...
  • Page 20: Graco Phone Number

    Graco distributor to the original purchaser for use. With the exception of any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
