INSTRUCTIONS–PARTS LIST
This manual contains IMPORTANT
WARNINGS AND INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
50:1 Ratio Fire-Ball
LUBRICATION PUMPS
5000 psi (350 bar) Maximum Working Pressure
100 psi (7 bar) Maximum Air Working Pressure
Portable units for heavy grease
WARNING
These systems are designed to be used ONLY
in pumping non-corrosive and non-abrasive lu-
bricants and greases. Any other use of the sys-
tem can cause unsafe operating conditions and
result in component rupture, fire or explosion
which can cause serious bodily injury, including
fluid injection.
Size
Model No.
225–006
120 lb
225–026
120 lb
226–379
120 lb
222–245
120 lb
225–773
35 to 50 lb
225–003
35 to 50 lb
225–827
35 to 50 lb
222–069
25 to 50 lb
*Base type:
P = Portable Base
T = 2 Wheel Truck
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Base
Dispense
Type*
Kit
Cover
P
X
T
X
P
X
T
X
T
X
P
X
–
X
–
X
COPYRIGHT 1988, GRACO INC.
Follow
Shield
Plate
X
X
X
X
X
X
X
X
X
X
X
X
X
X
307–878
Rev. D
Supersedes A

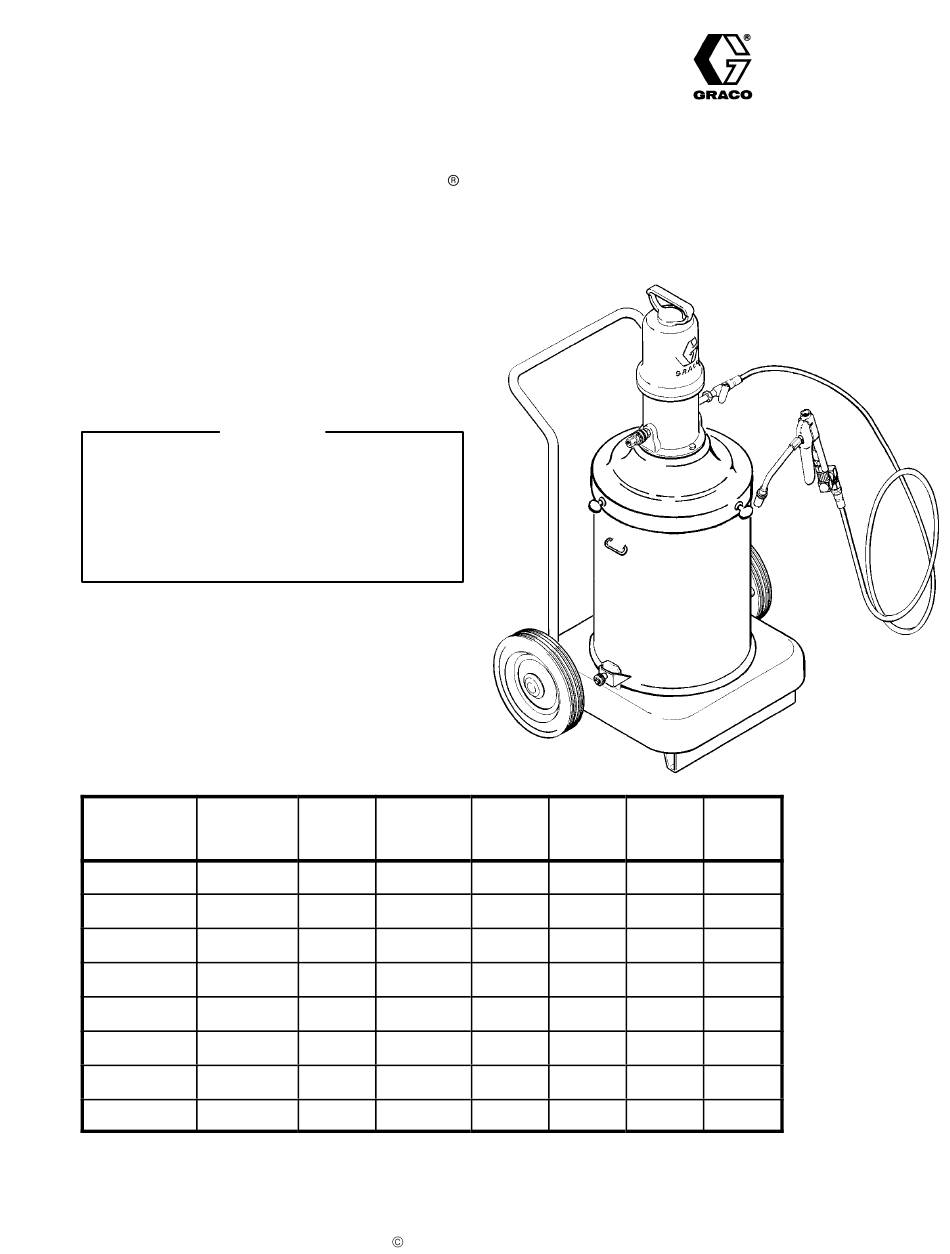

Model 225–773 shown
Pail
X
X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 225-006 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco 225-006

Summary of Contents for Graco 225-006

  • Page 1 225–003 35 to 50 lb 225–827 35 to 50 lb – 222–069 25 to 50 lb – *Base type: P = Portable Base T = 2 Wheel Truck GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 COPYRIGHT 1988, GRACO INC.

  • Page 3: Table Of Contents

    ....... . Operation Graco Warranty ........

  • Page 4: Safety Warnings

    DO NOT expose Graco hose to temperatures NEVER use a damaged hose. Before each use, check entire hose for cuts, leaks, abrasion, bulging cover, or...
  • Page 5 EQUIPMENT MISUSE HAZARD General Safety Fluid Compatibility BE SURE that all lubricants or fluids used are chemically Any misuse of the dispensing equipment or accessories, compatible with the wetted parts shown in the Technical such as overpressurizing, modifying parts, using incom- Data in the separate component manuals.

  • Page 6: Installation

    INSTALLATION Air Line Accessories See page 8 for recommended air accessories and installation. Models 225–773 & 225–827 2c, 2d 1. Model 225–773 only: Assemble the truck as shown in the parts drawing on page 11. Secure the truck pail (5) to the truck base with the pointed hold down clamps (3c) and thumbnuts (3d).

  • Page 7: Models 225-006 & 225-026

    INSTALLATION 2c, 2d Models 225–006 and 225–026 For Model 225–026: Assemble the truck (3) as shown in the parts drawing on page 11. For Model 225–006: Assemble the base (3) as shown in the parts drawing on page 12. 2. Screw the holster (6) into the pump outlet. 3.

  • Page 8: Model 222-245

    INSTALLATION Model 222–245 1. Assemble the cart (6) as shown at right. Use only 2 of the 4 brackets (5d) supplied. Install in the rear posi- tions, of the drum shelf (6b), as shown. 2. Place an opened 120 lb drum of grease on the drum shelf.

  • Page 9: Operation

    OPERATION WARNING WARNING The maximum working pressure of each pump in Pressure Relief Procedure your system may not be the same. To reduce the To reduce the risk of serious bodily injury, including risk of over-pressurizing any part of your system, fluid injection or splashing in the eyes or on the skin, be sure you know the maximum working pressure always follow this procedure whenever you shut off...

  • Page 10: Parts Drawings & Lists

    PARTS DRAWINGS & LISTS REF NO. 2 Dispense Kit 222–070 Includes items 2a – 2d NO. PART NO. DESCRIPTION 109–150 HOSE 218–539 VALVE 208–536 COUPLER, quick disconnect 169–971 NlPPLE, quick disconnect MODEL 225–827 35 to 50 lb pail size See parts NO.

  • Page 11: Model 225-026

    PARTS DRAWINGS & LISTS MODEL 225–026 120 lb drum size See parts, See parts page 10 below NO. PART NO. DESCRIPTION 203–669 PUMP, 50:1 Ratio Fire-Ball; See 306–517for parts 222–070 DISPENSE KIT; See parts list on page 10 203–650 TRUCK, 2 wheel; See parts list below 204–574 COVER;...
  • Page 12 PARTS DRAWINGS & LISTS See parts, MODEL 225–006 120 lb drum size page 10 NO. PART NO. DESCRIPTION 203–869 PUMP, 50:1 Ratio Fire-Ball; See 306–517 for parts 222–070 DISPENSE KIT; See parts list on page 10 203–622 PORTABLE BASE; See parts list below 204–574 COVER;...

  • Page 13: Model 222-245

    PARTS DRAWINGS & LISTS REF NO. 2 Dispense Kit 222–383 Includes items 2a – 2d NO. PART NO. DESCRIPTION 109–154 HOSE 218–539 VALVE 208–536 COUPLER, quick disconnect 169–971 NlPPLE, quick disconnect MODEL 222–245 120 lb drum size NO. PART NO. DESCRIPTION 203–869 PUMP, 50:1 Ratio Fire-Ball;...

  • Page 14: Accessories

    ACCESSORIES Accessories must be purchased separately. Use only GENUINE GRACO PARTS AND ACCESSORIES. Air Line Lubricator Bleed–type Master Air Valve 107–142 250 psi (127.5 bar) Maximum Working Pressure 300 psi (21 bar) Maximum Working Pressure 214–847 3/8” npt Relieves air trapped in the air line between the pump air inlet and this valve when closed.
  • Page 15 SERVICE INFORMATION Listed below by the assembly changed are OLD and NEW parts. ASSEMBLY PART CHANGED STATUS PART NO. NAME 222–070 150–163 Fluid Hose Dispense Kit 109–150 Fluid Hose INTERCHANGEABILITY NOTE: NEW parts replace OLD parts listed directly above them. ADDED PRODUCT NOTE: Model 222–245, 50:1 Ratio Fire-Ball Pump, 120 lb drum size unit, was added.
  • Page 16 Graco distributor to the original purchaser for use. As purchaser’s sole remedy for breach of this war- ranty, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment proven defective.
