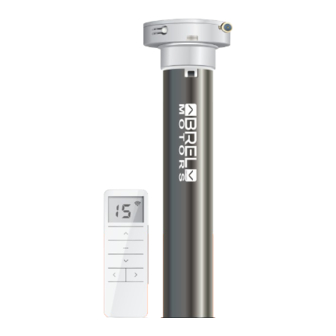

Manual Brel Bi-Directional Rollerblind motor
BPEQ28
Read the manual before you begin the
installation. If these instructions are
not followed, this may lead to defects
and injury in which warranty can't be
www.brel-home.com
Visit our website for more manuals and information
BPEQ28
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
EN NL DE FR
Advertisement
Table of Contents
Related Manuals for brel-motors BPEQ28
Summary of Contents for brel-motors BPEQ28

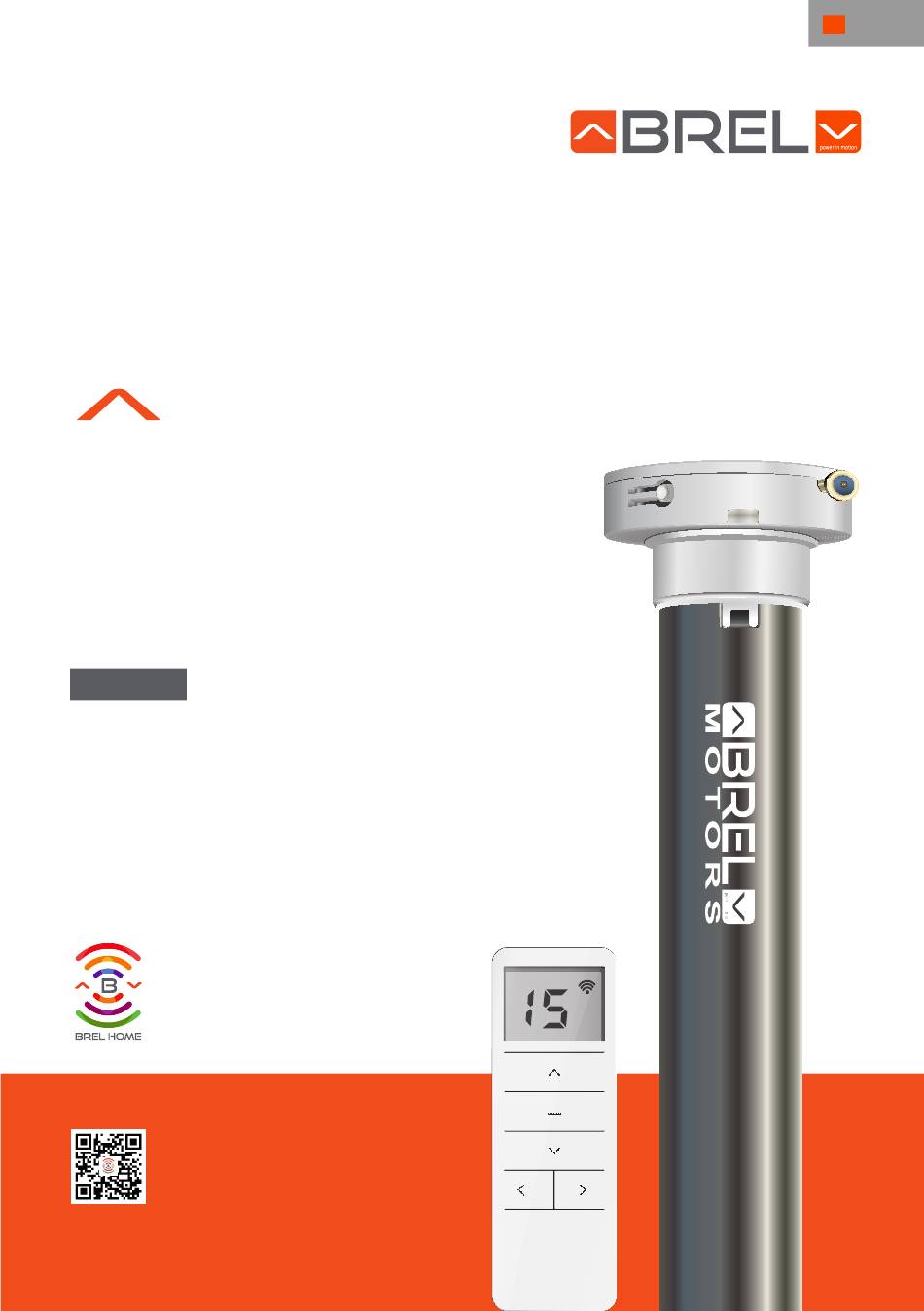

- Page 1 M O T O R S INSTALLATION MANUAL Manual Brel Bi-Directional Rollerblind motor BPEQ28 Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be www.brel-home.com...
- Page 2 Wiring/Installing the motor/Compatible with hub Technical data of the motor/Reach/Charging the motor Functions remote control Warning Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the CE standard 1999/5/EC...
- Page 3 Page 3 Wiring Antenna Micro-USB BPEQ28 LED Light LED Light Micro-USB BPEQ28 Antenna Magnet Plug (Optional) Installing the Motor These assemblies are usually already done in the factory Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is fixed to the motor.
- Page 4 Page 4 Technical data of the motor TYPE BPEQ28-2 Motor Voltage 230V AC Maximum Ampere Charger Power 18 W Torque 2 Nm Speed 24-28-32 rpm Amperage 0.5 A Moisture and Dust IP20 Storage capacity is up to 20 channels Working temperature of the motor...
- Page 5 There are 2x P2 buttons, no matter which one you press. Scan the QR code here for the manual to download & view instructional videos. BPEQ28 Step 1 Setting up the first remote/channel The remote control can transmit 15 channels and therefore control multiple blinds.
- Page 6 Page 6 Step 3 Adjusting the direction of rotation (Only if the direction of rotation is not correct) Only possible if no end positions are set. until Press UP and DOWN button The direction of rotation of simultaneously, until the product moves. the motor is OK.
- Page 7 Page 7 Additional settings Adjusting the top position Option A If adjustment is not possible, go to Resetting factory settings. STOP STOP until 2x until Press at the same time STOP Press at the same time STOP and UP Go to the new and UP until the motor moves top position.
- Page 8 Page 8 Option D Speed Control 1x P2 Press 1x up. The product Press 1x up. The product The motor speed moves up and down and moves 2 x up and down and has been increased beeps 1 times beeps 1 times Press P2.
