INSTALLATION
MANUAL

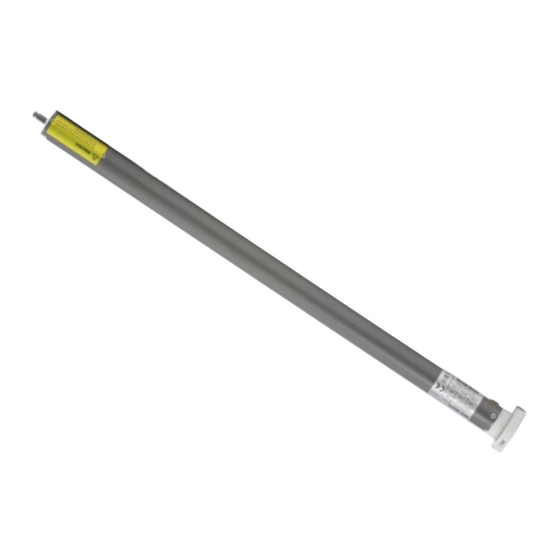

Manual Brel Bi-Directional Rollerblind motor
BLE 25
Read the manual before you begin the
installation. If these instructions are not
followed, this may lead to defects and
injury in which warranty can't be claimed.
www.brel-home.com
Visit our website for more manuals and information
BLE25
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
EN NL DE FR
Advertisement
Related Manuals for brel-motors BLE 25
Summary of Contents for brel-motors BLE 25
- Page 1 M O T O R S INSTALLATION MANUAL Manual Brel Bi-Directional Rollerblind motor BLE 25 Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Wiring/Installing the motor/Compatible with hub Technical data of the motor/Reach/Charging the motor Functions remote control Warning Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the CE standard 1999/5/EC...
- Page 3 Page 3 Wiring Antenna USB-C BLE 25 LED Light LED Light USB-C BLE 25 Antenna Magnet Plug Installing the Motor These assemblies are usually already done in the factory Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is fixed to the motor.
- Page 4 Page 4 Technical data of the motor TYPE BLE25-11 Motor Voltage DC 8V Charge Voltage DC 5V Maximum Ampere Charger Power 10 W Torque 1.1 Nm Speed 24-28-32 rpm Amperage 1.2 A Moisture and Dust IP20 Storage capacity is up to 20 channels Working temperature of the motor Heavy Use: Normal Use:...
- Page 5 Page 5 Functions Remote Control Current Channel Stop Down Programm Channel- C- Button P2 Channel+ C+ There are 2x P2 buttons, no matter which one you press. Scan the QR code here for the manual to download & view instructional videos. BLE25 Step 1 Setting up the first remote/channel...
- Page 6 Page 6 Step 3 Adjusting the direction of rotation (Only if the direction of rotation is not correct) Only possible if no end positions are set. until Press UP and DOWN button The direction of rotation of simultaneously, until the product moves. the motor is OK.
- Page 7 Option B Only possible when end limits are set. = Already existing transmitter/channel = New transmitter/channel NOTE It is not possible to connect the DD116 or DD118 to a BLE 25 motor Method 1 P2 b P2 a P2 a Press P2 of a.
- Page 8 Page 8 Option D Speed Control 1x P2 Press 1x up. The product Press 1x up. The product The motor speed moves up and down and moves 2 x up and down and has been increased beeps 1 times beeps 1 times Press P2.
