INSTALLATION
MANUAL
Manual Brel Bi-Directional Rollerblind motor
BJE24DD
Read the manual before you begin the
installation. If these instructions are not
followed, this may lead to defects and
injury in which warranty can't be claimed.
www.brel-home.com
Visit our website for more manuals and information
BJE24DD
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
E
N NL DE FR
Advertisement
Table of Contents
Related Manuals for brel-motors BJE24DD
Summary of Contents for brel-motors BJE24DD
- Page 1 M O T O R S INSTALLATION MANUAL Manual Brel Bi-Directional Rollerblind motor BJE24DD Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Technical data of the motor/Reach/Charging the motor Functions remote control Settings Warning Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the CE standard 1999/5/EC The motor must be protected from direct moisture influences.
-
Page 3: Installing The Motor

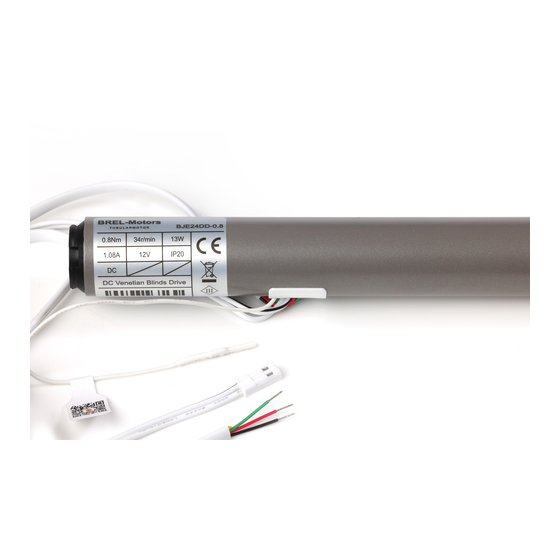

Page 3 Wiring Antenna Common line (Com)= Red line Up line (Up)= Black line External switch line Down line (Down)= Green line Power line External switch line Installing the Motor These assemblies are usually already done in the factory Attach the crown and wheel to the motor and place the clip on the shaft of the motor so that the wheel is fixed to the motor. - Page 4 = 25 meter Charging the motor If charging the BJE24DD only use a charger with Micro-USB plug (5V) The battery is empty when the motor light flashes red. The light flashes green while charging. The battery is fully charged when the light stops blinking and lights-up continuously.
- Page 5 There are 2x P2 buttons, no matter which one you press. Scan the QR code here for the manual to download & view instructional videos BJE24DD Step 1 Setting up the first remote/channel The remote control can transmit 15 channels and therefore control multiple blinds.
- Page 6 Page 6 Step 3 Adjusting the direction of rotation (Only if the direction of rotation is not correct) Only possible if no end positions are set. until Press UP and DOWN button The direction of rotation of simultaneously, until the product moves. the motor is OK.
-
Page 7: Additional Settings
Learn Extra transmitter/channel Only possible when end limits are set. = Already existing transmitter/channel = New transmitter/channel NOTE It is not possible to connect the DD116 or DD118 to a BJE24DD motor Method 1 P2 a P2 a P2 b Press P2 of a. - Page 8 Page 8 Option D Speed Control 1x P2 The motor speed Press 1x up. Press 1x up. has been increased Press P2. The product Press 1x down. Press 1x down. moves 1x up and down The motor speed has been reduced. If the motor does NOT react after this action, it is already at the highest or lowest speed.
-
Page 9: Changing The Direction Of Rotation
Page 8 Additional settings P1 button Can be used without a transmitter as an operating button. 1x P1 The product moves up, stops or goes down when pressed P1 Press 1x P1 on the motor. Switching off the receiver until The Receiver Press and hold P1 until the product moves up and down for the 2nd time.
