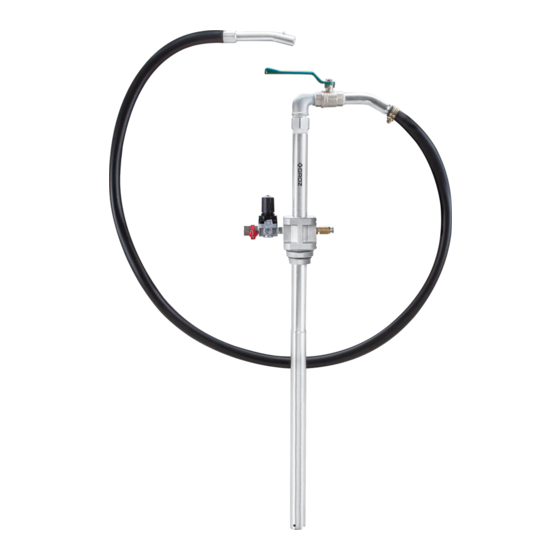

The New Air Operated Fluid
Transfer Pump: Ideal for quick & safe
transfer of fluids in industrial and
workshop applications, on farms &
construction sites
Operated via compressed air supply
the pump comes as a kit with:
• Air Pressure Regulator: Factory
set at 5 PSI (0.35 BAR) for
controlled air supply into the fluid
drum
• In-built 1/4" spring loaded safety
valve to prevent pressure build-up
in the pump system
• 2 Pc Suction Tube: Suitable for
use on 50-205 litre (15-55 gallon)
drums with 1-1/2" or 2" opening
• 6' (1.85m) × Ø 1" (26mm)
discharge hose with steel spout
Available in two versions
a. With Steel Suction Tube
b. With Stainless Steel Suction Tube
STEEL SUCTION
TUBE
WETTED
Steel, Cast Iron,
COMPONENTS
Brass & NBR*
RECOMMENDED
Diesel, Kerosene
USE
& Oils
DO NOT USE
Gasoline, Lacquer,
WITH
Thinners, etc.
*only for version with discharge hose
SPECIFICATIONS
DESCRIPTION
MAX. AIR PRESSURE
AIR INLET CONNECTION
BUNG SIZE
WETTED COMPONENTS
RECOMMENDED USE
DO NOT USE WITH
*Only for version with hose assembly
CAT NR.
ATP/1
Pump with steel suction tube
ATP/1H
Pump with steel suction tube & discharge hose
ATP/SS/1
Pump with stainless steel suction tube
ATP/SS/1H
Pump with stainless steel suction tube & discharge hose
Air Inlet
ON/OFF Valve
STAINLESS STEEL
SUCTION TUBE
Stainless Steel, Cast
Iron, Brass & NBR*
Water & Water Based
Media, Corrosive media,
Diesel, Kerosene & Oils
Gasoline, Lacquer,
Thinners, etc.
ATP
Steel, Cast Iron, Brass & NBR*
Diesel, Kerosene & Oils
DESCRIPTION
INSTRUCTION MANUAL
ATP/1H
*measured
FLOW RATE*
at pump
outlet tested
using water
UPTO
72 LPM
(19 GPM)
5 PSI (0.35 BAR)
1/4" (F)
1-1/2" & 2"
Stainless Steel, Cast Iron, Brass & NBR*
Water & Water Based Media, Corrosive media,
Gasoline, Lacquer, Thinners, etc.
DIESEL
KEROSENE
S3480, Rev A
ATP
ATP-SS
Discharge Spout
Pump Discharge/
Outlet Valve
Air Pressure
Regulator
Spring Loaded
Safety Valve
For use on drums upto
205 litre (55 gal.)
ATP/SS
Diesel, Kerosene & Oils
OIL
WATER
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Groz ATP
Summary of Contents for Groz ATP

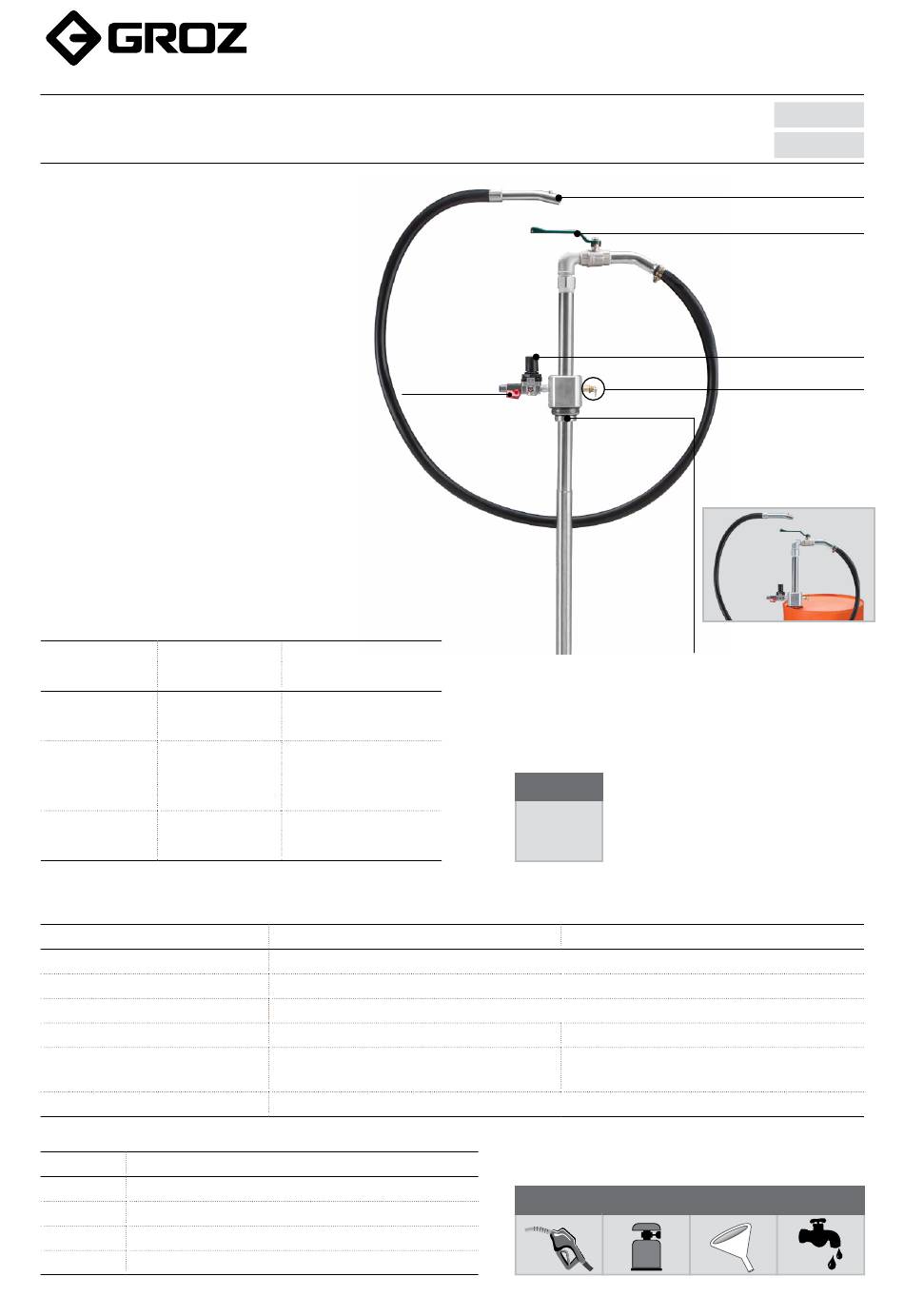

- Page 1 INSTRUCTION MANUAL S3480, Rev A Air Operated Transfer Pump ATP-SS The New Air Operated Fluid Discharge Spout Transfer Pump: Ideal for quick & safe transfer of fluids in industrial and workshop applications, on farms & Pump Discharge/ Outlet Valve construction sites...
