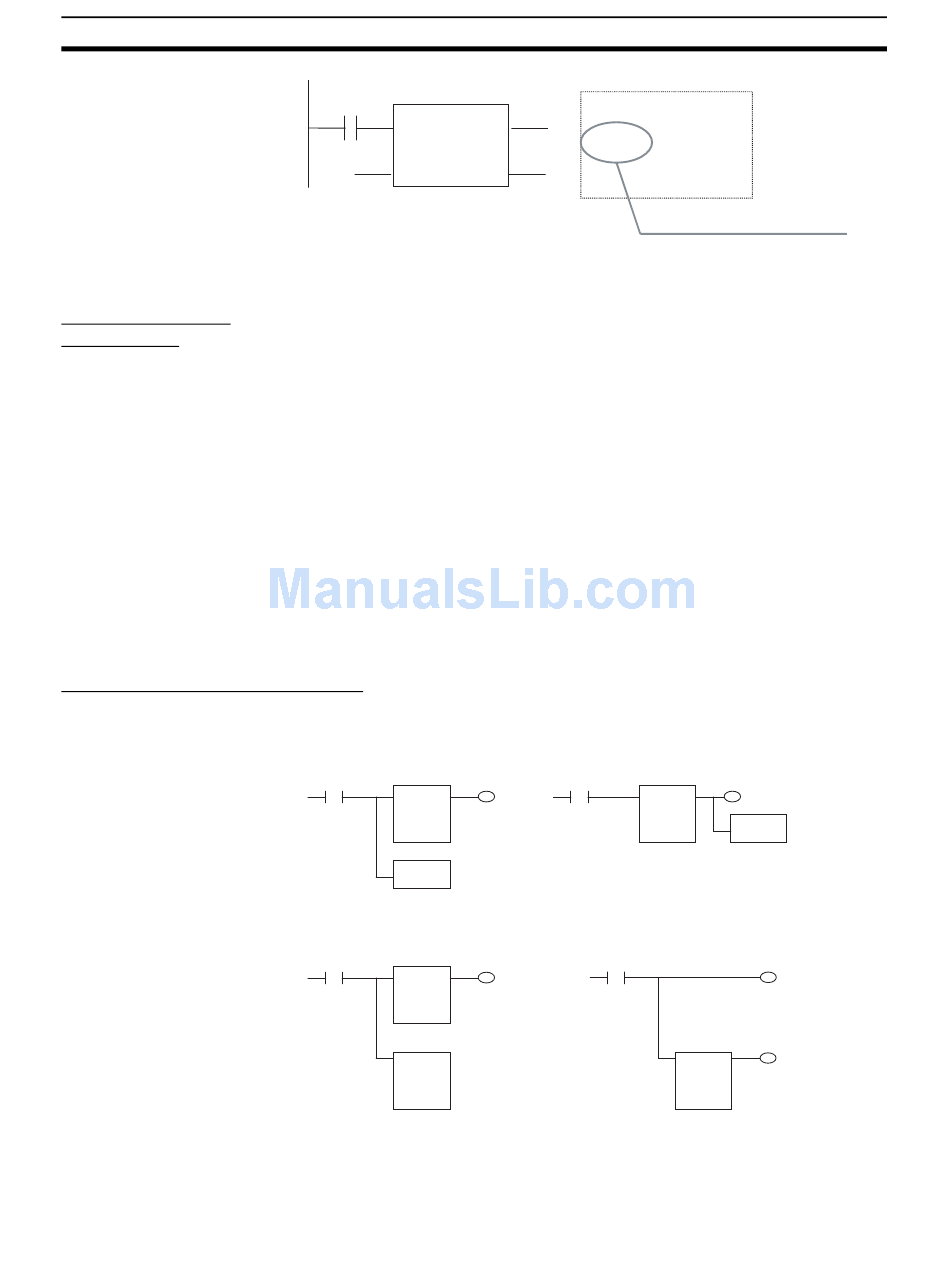

Restrictions on Function Blocks
ST Programming
Restrictions
Program Structure Precautions
No Branches to the Left of
the Instance
Only One Instance per
Rung
40
P _ On
FB1
EN ENO
0.00 a U P
• If the same instance containing a timer is used in multiple locations at the
same time, the timer will be duplicated.
• Only the following statements and operators are supported.
• Assignment statements
• Selection statements (CASE and IF statements)
• Iteration statements (FOR, WHILE, REPEAT, and EXIT statements)
• RETURN statements
• Arithmetic operators
• Logical operators
• Comparison operators
• Numerical Functions
• Arithmetic Functions
• Comments
• The TIMER and COUNTER data types cannot be used.
For further details, refer to Appendix B Structured Text (ST Language) Specifi-
cations.
Branches are not allowed on the left side of the instance. Branches are
allowed on the right side.
Incorrect
FB
Instruction
A program rung cannot have more than one instance.
Incorrect
FB
FB
Body
LD a
TI M t i m U P
The timer's completion flag (UP) is turned
OFF when input condition a (0.00) goes OFF.
Correct
FB
Instruction
Incorrect
FB
Section 2-3
