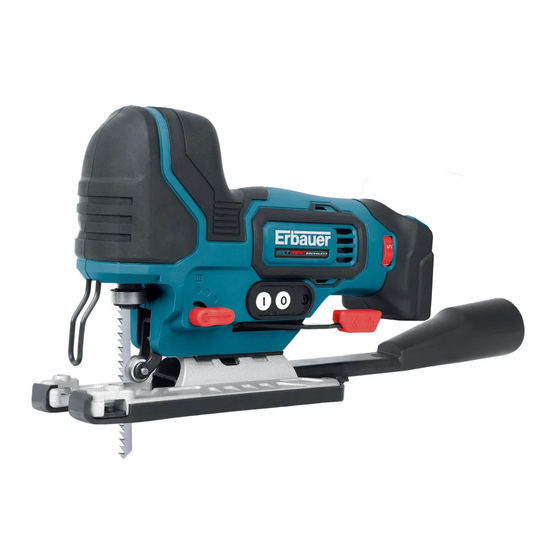

Summary of Contents for Erbauer EJS12-Li

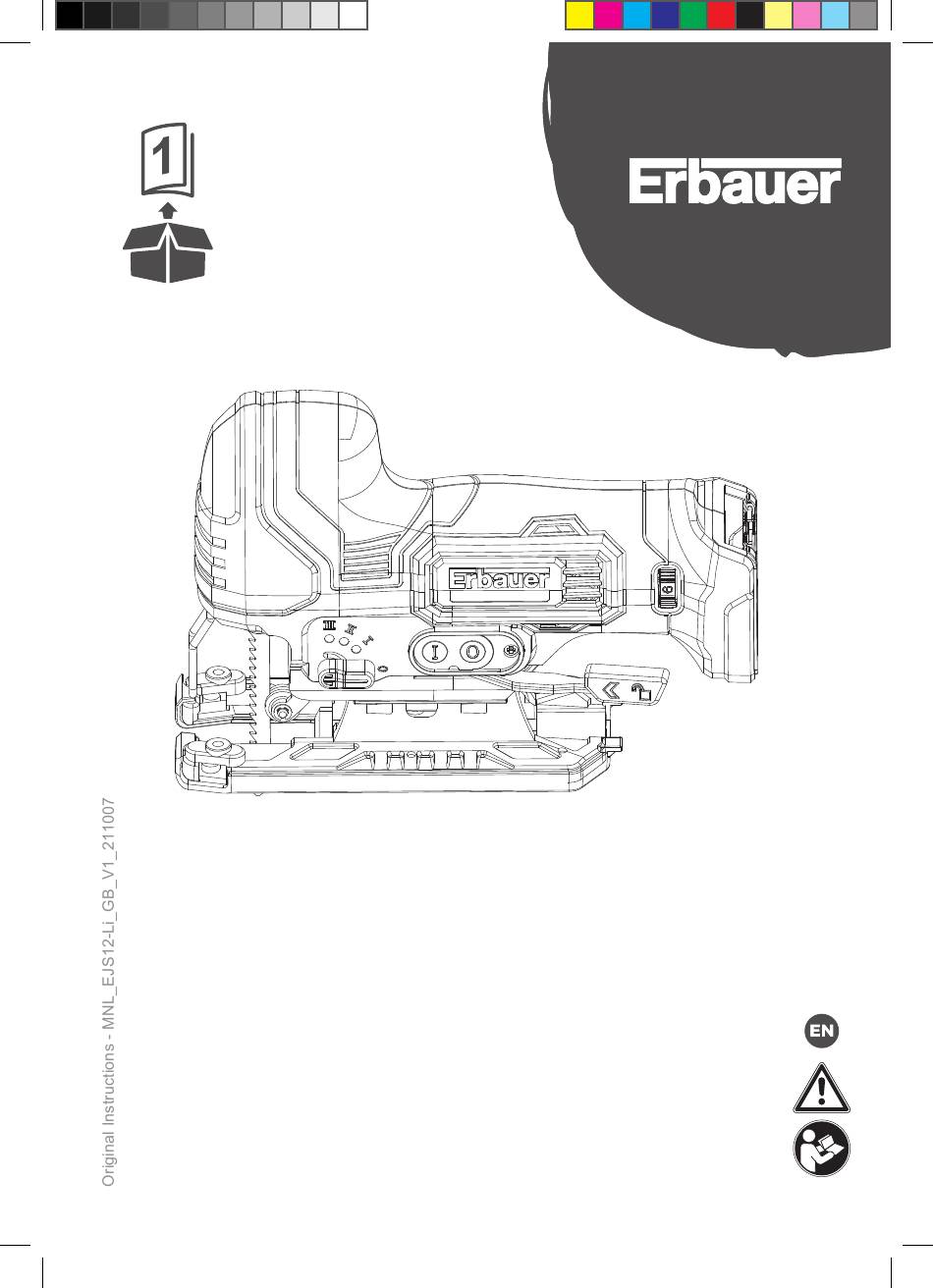

- Page 1 EAN: 5059340010717 EJS12-Li ORIGINAL INSTRUCTIONS V60421 / BX220IM MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V6_210422.indd 1 4/22/21 6:40 PM...
-
Page 2: Table Of Contents
Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V6_210422.indd 2 4/22/21 6:40 PM... - Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V6_210422.indd 3 4/22/21 6:40 PM...
- Page 4 Product description MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V6_210422.indd 4 4/22/21 6:40 PM...
- Page 5 76-100% 51-75% 26-50% 5-25% <5% T type MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V6_210422.indd 5 4/22/21 6:40 PM...
- Page 6 10 10a MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V6_210422.indd 6 4/22/21 6:40 PM...
- Page 7 MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V6_210422.indd 7 4/22/21 6:40 PM...
-
Page 8: Safety Instructions
Safety instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 9 c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
- Page 10 e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
- Page 11 e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 12 e) Do not use battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature.
- Page 13 e) The power tool shall not be wet or applied in wet environment. Keep the handles dry to ensure safe control. f) Grip the product securely with two hands so you have full control at all times. g) Ensure that the air vents are always unobstructed and clear.
- Page 14 p) Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage. ADDITIONAL SAFETY WARNINGS FOR BATTERY PACK a) Observe the plus (+) and minus (-) marks on the battery...
- Page 15 m) Wipe the battery pack terminals with a clean dry cloth if they become dirty. n) Battery pack needs to be charged before use. Always refer to the charger instruction and use the correct charging procedure. o) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
- Page 16 • Chronic Obstructive Pulmonary Disorder/Chronic obstructive pulmonary disease (COPD) And breathing in fine particles of wood dust can lead to the development of Asthma. The risk of lung disease is linked to people who regularly breathe construction dust over a period of time, not on the odd occasion.
- Page 17 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products.
- Page 18 The declared vibration total value has been measured in accordance with EN 62841-1 and EN 62841-2-11 and may be used for compare one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool...
- Page 19 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
- Page 20 b) Ensure that the product is in good condition and well maintained. c) Use correct attachments for the product and ensure they are in good condition. d) Keep tight grip on the handles/grip surface. e) Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
-
Page 21: Product Description
a) Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained. b) Injuries and damage to property due to broken attachments or the sudden impact of hidden objects during use. c) Danger of injury and property damage caused by flying objects or poor power tool accessories. - Page 22 Technical specifications > Rated voltage : 12 V d.c. > Rated no load stroke rate n : 800-3000 /min > Stroke length : 26 mm > Max cutting length > In wood : 90 mm > In aluminium : 20 mm >...
-
Page 23: Assembly
Rating label explanation EJS12-Li = Model number E = Erbauer JS = Jig Saw 12 = 12 V d.c. - Page 24 Note / Remark. Caution / Warning. xxWyy Manufacturing date code; year of manufacturing (20xx) and week of manufacturing (Wyy) Switch the product off and remove battery pack before assembly, cleaning, adjustments, maintenance, storage and transportation. Open flames in the work area, around the product and in the vicinity of flammable materials are prohibited! Do not smoke in the work area, around the product and in the vicinity of flammable materials!
- Page 25 4. Ensure all the accessories and tools needed for assembly and operation are at your disposal, including suitable personal protective equipment. WARNING! The product and the packaging are not children’s toys! Keep plastics bags, sheets and small parts away from children. There is a danger of choking and suffocation! Do not insert the battery pack before the power tool is completely assembled!
- Page 26 SAW BLADE WARNING! Always use saw blades according to the intended use! For example, never use a saw blade intended for working on wood for working on metal or vice versa! Observe the technical specifications of this product and the saw blades when purchasing and using saw blades! Attachments are sharp and hot after use! Handle them with care! Wear safety gloves when handling attachments to avoid injuries like burns...
- Page 27 DUST/CHIP EXTRACTION WARNING! Attach a dust extraction device when using this product to keep the working area clean! Wear a dust mask when operating this product! Dust can be harmful to health! Especially dust and chips of wood that has been treated, e.g. with wood preservative or a stain! Attach a proper dust extraction device, e.g.
-
Page 28: Use
Intended use This power tool is intended for cutting wood and similar material e. g. MDF and chipboard, plastic and metal using appropriate saw blades. The product must be used in an upright position only with the base plate laying flat on the workpiece. - Page 29 NOTE: The required stroke rate is dependent on the material and the work conditions and can be determined using practical tests. It is recommended that you reduce the stroke rate when placing the saw blade on the workpiece and when sawing plastic and aluminium. During prolonged periods of use at a low stroke rate, the power tool may heat up significantly.
- Page 30 NOTE: The adjusting of bevel angle is not applicable for curve cutting. Automatic work light The LED work light (14) will illuminate when pressing the On(I) button (2), and will automatically turn off a short while after pressing the Off(O) button (3) (Fig. N). This provides additional light on the surface of the workpiece for operation in lower light situations.
- Page 31 WARNING! Keep in mind that there are buried objects hidden in every household! Ensure that there are no gas, water or power lines hidden in the working area that may be hit before operation – danger of electrical shock and serious damage to people and property! Use a suitable detector to trace such objects in advance! Cutting WARNING! Danger of kickback! Apply the product to the workpiece only...
-
Page 32: Care & Maintenance
7. Only apply as much forward and vertical pressure as necessary to keep the product flat on the workpiece. Higher pressure will not increase but lower the performance of the product and leads to uneven results. 8. Keep the product moving at all times, do not stop in one position to avoid grooves. 9. - Page 33 Maintenance Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your tool. Transportation 1. Switch the product off and remove the battery pack. 2. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
- Page 34 Problem Possible cause Solution 1. Product does 1.1. Battery pack not properly 1.1. Attach properly not start attached 1.2. Battery pack discharged 1.2. Remove and charge battery pack 1.3. Battery pack damaged 1.3. Check by a specialist electrician 1.4. Other electrical defect to 1.4.
-
Page 35: Guarantee
Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product Jig saw ) has a manufacturer’s guarantee of 3 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost. - Page 36 Batteries and battery chargers are not covered under the Erbauer 3 Year Warranty and will have a guarantee period of 2 years from the date of purchase. If the product is defective, we will, within a reasonable time, repair or replace it.
-
Page 37: Declaration Of Conformity
Declaration of conformity MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V5_210407.indd 37 4/8/21 1:01 PM... - Page 38 EN 62841-1: 2015 EN 62841-2-11:2016 EN 55014-1:2017+A11:2020 EN IEC 55014-1:2021 EN 55014-2:2015 EN IEC 55014-2:2021 07/10/2021 MNL_Erbauer_GB_EID12-Li-2_12V Impact driver_V12.indd 29 3/30/21 7:04 PM...
- Page 39 BS EN 62841-1: 2015 BS EN 62841-2-11:2016 EN 62841-1: 2015 EN 62841-2-11:2016 EN 55014-1:2017+A11:2020 EN IEC 55014-1:2021 EN 55014-2:2015 EN IEC 55014-2:2021 BS EN 55014-1: 2017+A11: 2020 BS EN IEC 55014-1:2021 BS EN 55014-2: 2015 BS EN IEC 55014-2:2021 On:07/10/2021 MNL_Erbauer_GB_EID12-Li-2_12V Impact driver_V12.indd 29 3/30/21 7:04 PM...
- Page 40 EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline: UK 03301248111 erbauer@powertoolservicing.co.uk Eire 0035312479977 erbauer@powertoolservicing.co.uk MNL_Erbauer_GB_EJS12-Li_12V Jig Saw_V5_210407.indd 38 4/8/21 1:01 PM...
