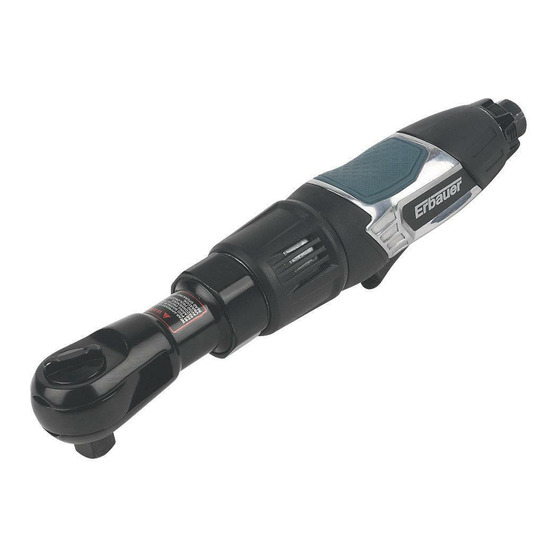

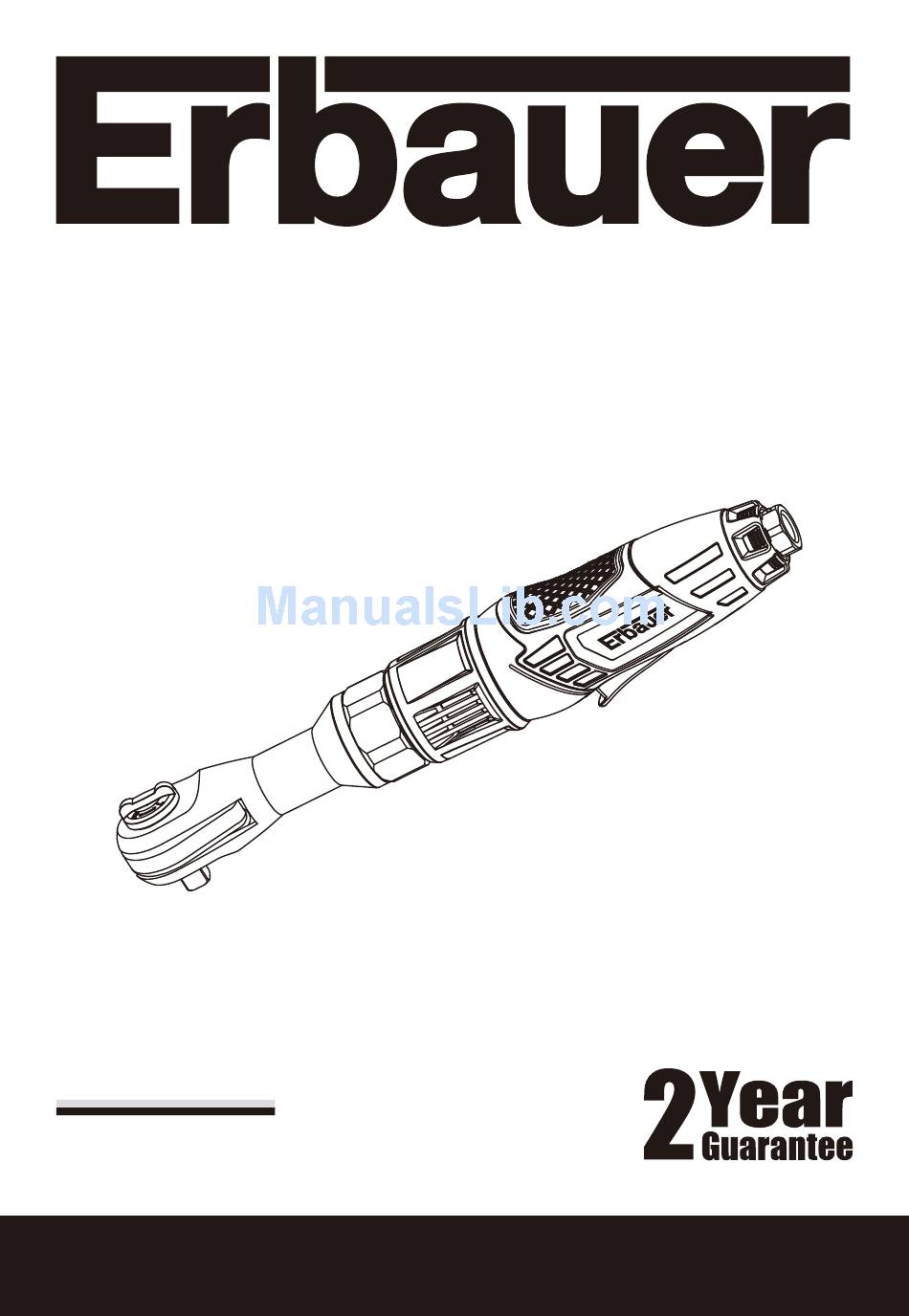

- Page 1 ERN634ATL 1/2" AIR RATCHET WRENCH...
- Page 2 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES WARNING! ● Improper operation or maintenance of this tool could result in personal injury and/or property damage. Read and understand all warnings and operation instructions before using this tool. ● When using this tool, these basic safety precautions should always be followed to reduce the risk of personal injury and/or property damage. - Page 4 14. Never use the tool if it is defective, damaged, or operating abnormally. 15. Check for misalignment or binding of moving parts, breakage of parts and any other condition that affects the tool operation. If damaged, have the tool serviced before using.
-
Page 5: Air Supply
AIR SUPPLY Please refer to the typical air system layout recommended below. WARNING! Compressed air can be dangerous. Ensure that you are familiar with all precautions relating to the use of compres- sors and compressed air supply. 1. Use only clean, dry, regulated compressed air as the power source. 2. - Page 6 SYMBOLS On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Revolution per minute Cubic feet per minute Pound per square inch Manufacturing date code;...
-
Page 7: Product Description
PRODUCT DESCRIPTION PART DESCRIPTION QUANTITY F/R Knob Exhaust Deflector 1/2" Air Ratchet Wrench Steel Ball Air Inlet Air Regulator Trigger Anvil 1/2" AIR RATCHET WRENCH... -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS COMPONENT SPECIFICATIONS Square drive 1/2" Maximum no load speed 160rpm Maximum torque 60Ft-Lb (85Nm) Air inlet 1/4" BSP Air hose (inner diameter) 3/8" Average air consumption 4cfm Working pressure 90psi (6.3bar) NOISE AND VIBRATION DATA Sound pressure level LPA: 87 dB (A) (K=3dB(A)) Sound power level LWA: 98 dB (A) (K=3dB(A)) Vibration level: 4.35m/s (K = 1.5m/s... -
Page 9: Intended Use
INTENDED USE This 1/2" air ratchet wrench ERN634ATL is compact and ergonomic for working in confined spaces. It features 4-speed air regulator and rotatable exhaust deflector. The intended use includes installing/tightening or removing/loosening threaded fasteners and/or small bolts in automotive and garage, and in other workshop applications as well. - Page 10 ASSEMBLY 1. Remove the air inlet protective cap from the air inlet (E). (See Figure 1) 2. Mount the male plug by hand into the air inlet (E). (See Figure 2) NOTE: Use thread sealant tape (not included) on the male plug and tighten it with a wrench for airtight connection.
-
Page 11: Operation
4. Choose the correct impact socket (not provided) as needed and mount it onto the anvil (H). (See Figure 4) WARNING! Only use impact sockets that have a RPM and Torque rating equal to or greater than the tool itself. 5. - Page 12 2. How to remove/loosen threaded fasteners. Turn the F/R knob (A) clockwise to “R” position (R=Reverse or Loosen). Press the trigger (G). The tool anvil (H) runs counterclockwise. (See Figure 7) NOTE: This tool features a power regulator valve. Rotate the air regulator (F) until desired output is achieved.
-
Page 13: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION 1. Grit or gum in tool. 1. Flush the tool with air-tool oil or gum solvent. 2. No oil in tool. 2. Lubricate the tool. 3. Low air pressure. 3. a. Adjust the regulator on the tool to maximum setting. -
Page 14: Exploded Diagram And Parts List
EXPLODED DIAGRAM AND PARTS LIST Description Qty. Description Qty. Part No. Part No. Main housing Bolt Front plate Trigger Bearing Bolt Washer Soft grip Thread ring gear Rear cover Idle gear Valve seat Gear pin Bolt Gear plate Throttle valve Clamp nut Spring Ring gear... -
Page 15: Declaration Of Conformity
Standard and technical specifications referred to: EN ISO 11148-6: 2012 Authorised Signatory and technical file holder Date: 05/05/2015 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 1/2" AIR RATCHET WRENCH... - Page 16 1/2" AIR RATCHET WRENCH...
