Summary of Contents for Erbauer EID18-Li

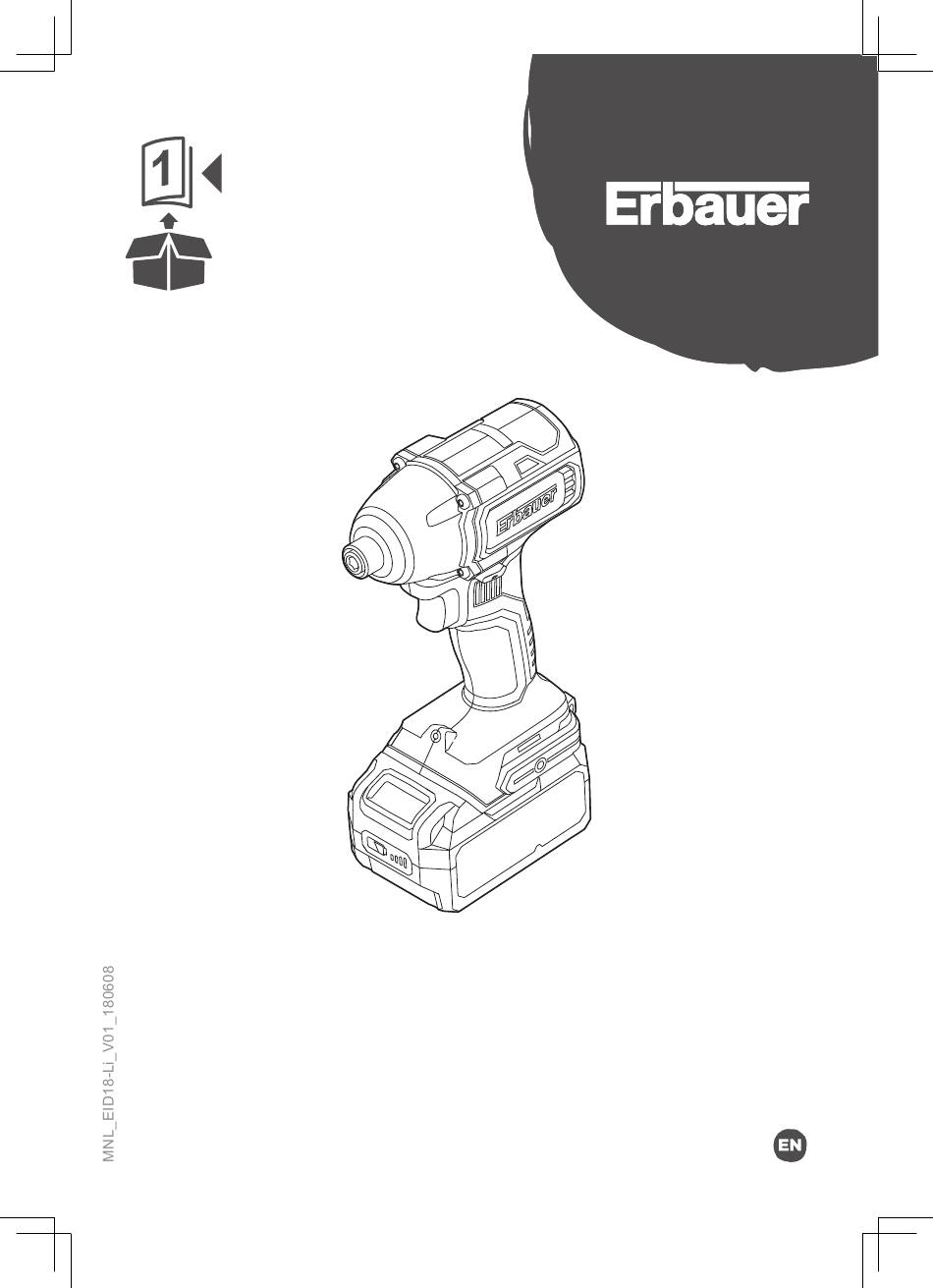

- Page 1 EAN. 3663602798873 / EAN.3663602799030 EID18-Li ORIGINAL INSTRUCTIONS...
- Page 2 Safety instructions WARNING! Please read all safety warnings carefully and be sure Product description that they are fully understood before handling the tool. Assembly Care & maintenance Guarantee Declaration of Conformity (Ø4 x 6mm) (PZ2 x 3)
-
Page 3: Product Description
PRODUCT DESCRIPTION... -
Page 4: General Power Tool Safety Warnings
c. Do n ot expose power tools to rain or wet conditions. Water SAFETY INSTRUCTIONS entering a power tool will increase the risk of electric shock. not abuse the cord. Never use the cord for carrying, d. Do pulling or unplugging the power tool. Keep cord away GENERAL POWER TOOL SAFETY WARNINGS from heat, oil, sharp edges or moving parts. - Page 5 f. Dre ss properly. Do not wear loose clothing or jewellery. Keep f. K eep cutting tools sharp and clean. Properly maintained your hair, clothing away from moving parts. Loose clothes, cutting tools with sharp cutting edges are less likely to bind and jewellery or longhair can be caught in moving parts.
-
Page 6: Residual Risks
f. Do not expose a battery pack or tool to fire or excessive Do not expose battery to water or salt water, or allow the temperature. Exposure to fire or temperature above 130 °C battery to get wet. may cause explosion. Do not disassemble or modify the battery. -
Page 7: Technical Specifications
(taking account of all parts of the operating cycle such as the times when the tool TECHNICAL SPECIFICATIONS is switched off and when it is running idle in addition to the trigger time). RATING LABEL EXPLANATION Driver EID18-Li = MODEL NUMBER E = ERBAUER Rated voltage: 18V d.c. ID = IMPACT DRIVER... -
Page 8: Assembling The Machine
UNPACKING ASSEMBLY Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. Using an SYMBOLS incomplete or damaged product represents a hazard to people and property. •... -
Page 9: Intended Use
BATTERY PACK POWER BAR The Li-Ion battery pack (7) is equipped with a POWER BAR which is used to give an indication of the battery pack’s remaining charge. Press the POWER BAR button (8) to check battery charge as below. The LED will stay lit for approximately 5 seconds. 76-100% Charge INTENDED USE This tool is intended for the fastening and loosening of bolts, nuts and various threaded 51-75% Charge fasteners. - Page 10 AUTOMATIC LED WORK LIGHT (F) OVERLOAD, TEMPERATURE AND CHARGING PROBLEM The LED work light (10) will illuminate when the trigger switch is depressed slightly, and Problem Tool/ Battery Status Possible cause Solution will automatically turn off a short while after the trigger switch is released. This provides Overload Product suddenly Extremely high...
-
Page 11: Care And Maintenance
This guarantee is limited to parts recognised as defective. It does not, in any case, cover authorised service centre or a similarly qualified person to have it checked and repaired. ancillary costs (movement, labour) and direct and indirect damage. STORAGE If the Erbauer power tool is defective during the guarantee period, then we reserve the right, at our discretion, to replace the item with a product of equivalent quality and • Switch the product off and remove the battery pack. -
Page 12: Declaration Of Conformity
Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom Declare that the product: Erbauer 18V cordless impact driver EID18-Li Serial number 00001-99999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made: EN 62841-1:2015... - Page 13 Manufacturer • Fabricant • Producent • Hersteller • Producator • Fabricante: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products DISTRIBUTOR: B&Q plc, Chandlers Ford, Hants, SO53 3LE United Kingdom www.diy.com Screwfix Direct Limited, Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com To view instruction manuals online, visit www.kingfisher.com/products...
