ORIGINAL INSTRUCTIONS
WARNING: Read the instructions before using the product!
V11020 / BX220IM
MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 1
10/22/20 9:36 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHG2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbauer EHG2000

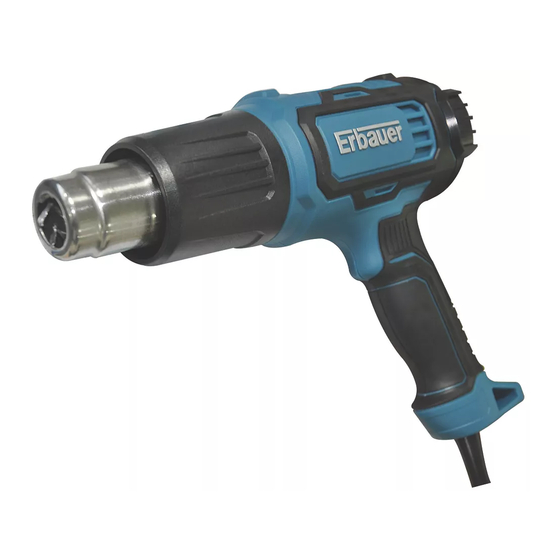

Summary of Contents for Erbauer EHG2000

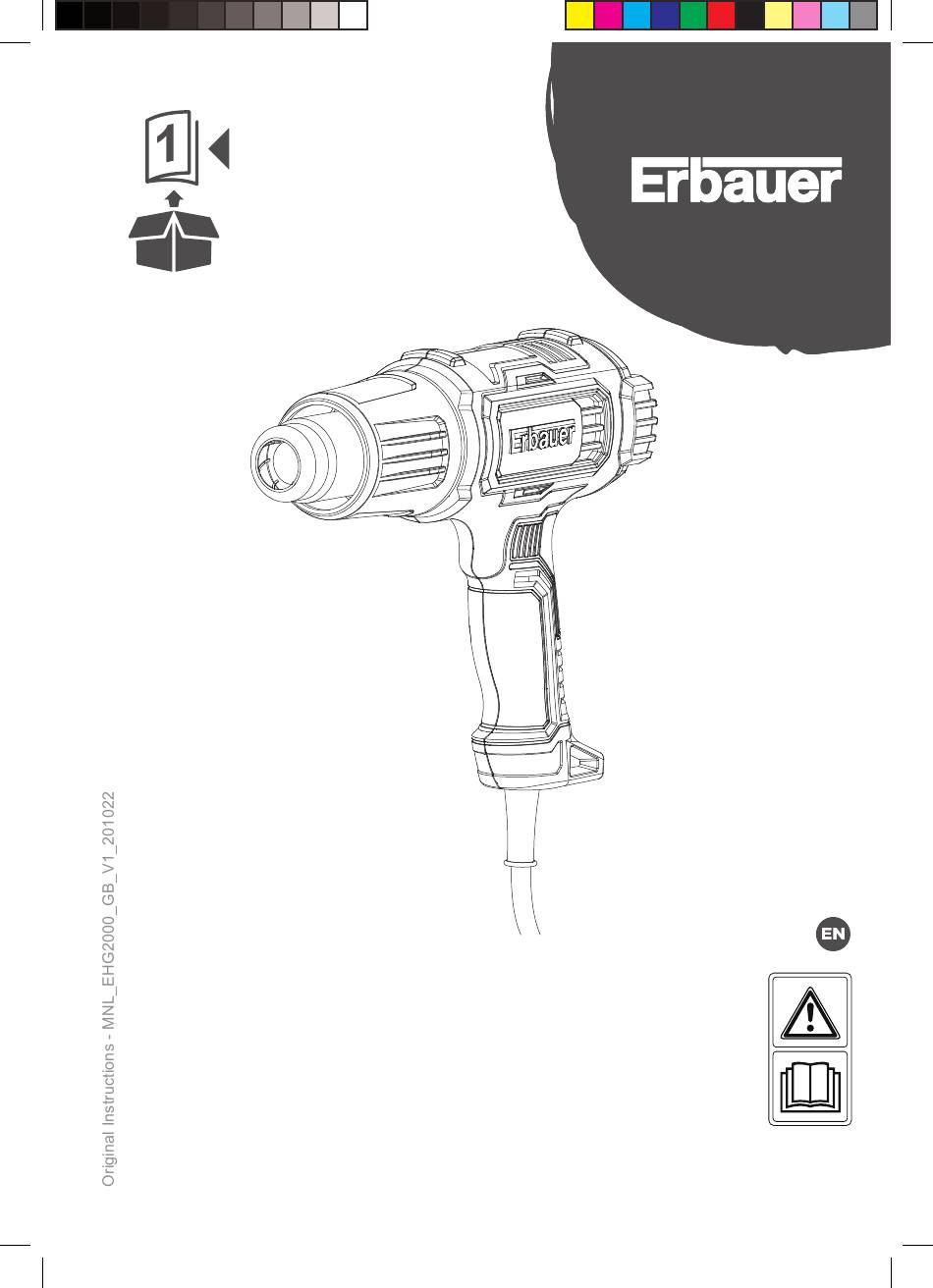

  • Page 1 EHG2000 EAN: 5059340043234 ORIGINAL INSTRUCTIONS WARNING: Read the instructions before using the product! V11020 / BX220IM MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 1 10/22/20 9:36 AM...

  • Page 2: Table Of Contents

    Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of conformity MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 2 10/22/20 9:36 AM...

  • Page 3: Safety Instructions

    Safety instructions SAFETY WARNINGS 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 4 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. 3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. Electrical safety 1.
  • Page 5 Personal safety 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 6 Power tool use and care 1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. 2. Do not use the power tool if the switch does not turn it on and off.
  • Page 7 Safety warnings for heat gun 1. WARNING! The tool must be placed on its stand when not in use. 2. A fire may result if the product is not used with care, therefore ─ be careful when using the product in places where there are combustible materials;...
  • Page 8 5. Clean up all paint scrapings and dust. Do not sweep, dry dust or vacuum to avoid the paint dust will be thrown up into the air where it can be inhaled or contaminate other areas. Wet mop floors. Use a wet cloth to clean all walls, sills and other surfaces where paint and dust have accumulated.
  • Page 9 2. Ideally move the workpiece to an outdoor location. If this is not possible, ensure the work area is well ventilated. 3. Wear an approved dust respirator mask or dual filter mask for dust and fumes. Ensure that the mask fits properly. Disposable paper masks are not adequate.
  • Page 10 To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day. These limits are not a large amount of dust: when compared to a penny it is tiny –...
  • Page 11 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. • Crystalline silica from bricks and cement and other masonry products.
  • Page 12 The declared vibration total value has been measured in accordance with standardised test and may be used for compare one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure. WARNING! The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used:...
  • Page 13 WARNING! Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
  • Page 14 2. Ensure that the product is in good condition and well maintained. 3. Use correct attachments for the product and ensure they are in good condition. 4. Keep tight grip on the handles/grip surface. 5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
  • Page 15 RESIDUAL RISKS Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1. Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
  • Page 16 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 16 10/22/20 9:36 AM...

  • Page 17: Product Description

    Product description MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 17 10/22/20 9:36 AM...
  • Page 18 4a.1 4a.2 4a.3 4a.5 4a.4 MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 18 10/22/20 9:36 AM...
  • Page 19 480°C 480°C 480°C 480°C 600°C MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 19 10/22/20 9:36 AM...
  • Page 20 480°C 600°C MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 20 10/22/20 9:36 AM...
  • Page 21 Part index The index below refers to Fig. 1 on page 10. 1. Hot air outlet Decrease 2. Air intake opening temperature 3. Stand button a) Rear stand g) Pre-set save b) Hanging hook button 4. Control panel 5. On/off switch O/I/II a) LCD display 6.
  • Page 22 : 50 - 650°C / 250 - 500 l/min Protection class : II Degree of protection : IPX0 Weight : 0.97 kg Rating label explanation EHG2000 = Model number E = ERBAUER HG = Heat gun 2000= Rated power input 2000 W MNL_ERBAUER_GB_Heat gun_EHG2000_V1_201022.indd 22 10/22/20 9:36 AM...

  • Page 23: Assembly

    Assembly Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices, if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or damaged do not use the product and contact your dealer.
  • Page 24 Accessories (Fig. A) Different nozzle attachments can be used depending on the work being conducted. The heat protection collar (1a) can be removed for hard-to reach locations. Hold and rotate the collar (1a) anti-clockwise to remove it. WARNING! Always use accessories according to the intended use! Some accessories are very sharp and become hot during use! Handle them carefully! Wear safety gloves when handling accessories in order to avoid...
  • Page 25 Attaching accessories 1. Align the required nozzle (8 - 11) with the hot air outlet (1) and attach it. Ensure it fits properly. Removing/replacing accessories 1. After use, let the nozzle cool down before removing it. 2. Remove the nozzle (8 - 11) from the hot air outlet (1) and attach a new nozzle as required.

  • Page 26: Use

    Intended use This heat gun EHG2000 is designated with a rated input of 2000 Watts. This product is intended for removing paint, forming and bending of plastic tubes, and the warming of heat-shrinkable tubing, using the respective nozzles. The product is also suitable for soldering and tinning, loosening adhesive joints and defrosting water pipes.
  • Page 27 Stand (Fig. B) Always place the product on its stand (3) after operation, when not in use. On/off switch Set the on/off switch (5) to desired position. Position Setting Applications O – Off – Cleaning and storage I – On –...
  • Page 28 Element Function Description Pre-set input The current setting can be stored as pre-set mode. Pre-set mode indication Current pre-set mode number. Temperature indication Current temperature. Air flow indication Current air flow. Flash It will disappear after the temperature reaching setting value. Setting the temperature 1.
  • Page 29 Preset mode input 1. Select one available preset mode. 2. Set the desired temperature and air flow by clicking the relevant buttons (4c, 4d, 4e, 4f). During the process, the preset input symbol keeps flashing. 3. Press the pre-set save button (4g) for 2 seconds until the preset input symbol disappears.
  • Page 30 WARNING! During operation fumes will be generated! Some fumes and dust are highly inflammable and explosive! Do not smoke during operation, keep heat sources and open flames out of the working area! Always wear an approved dust mask to protect yourself against hazards resulting from fumes and fine dust! Removing paint Do not use this product to remove paint containing lead.
  • Page 31 NOTE: The proper amount of heat for each application depends on the temperature range selected, distance between the nozzle and workpiece as well as the length of time heat is applied. Experiment with scrap materials and start with the lowest temperature setting.

  • Page 32: Care & Maintenance

    WARNING! Do not attempt to use the product on gas pipes – Danger of explosion! Before defrosting always ensure that the pipe you are going to defrost is a water pipe! After use 1. Turn the on/off switch to its “I” position and let the product run for a few minutes to reduce the cooling time.
  • Page 33 Clean 1. Clean the product with a slightly damp cloth and mild soap. Use a brush for areas that are hard to reach. 2. In particular clean the air intake opening (2) after every use with a cloth and brush. 3.
  • Page 34 10 AMP fuse Connect approved to Blue to BS 1362 N(Neutral) Brown L(Live) Outer sleeve Cable grip firmly clamped WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved 10 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse.
  • Page 35 3. Store the product and its accessories in a dry, frost-free place. 4. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C. 5. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.
  • Page 36 Recycling and disposal Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or local store for recycling advice. The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is working properly.

  • Page 37: Guarantee

    Guarantee we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. We carry out stringent testing procedures on all our tools and are confident that they can provide regular, sustained daily use during the period covered. That’s why we offer a 3 year guarantee against manufacturing defects on our power tool products.

  • Page 38: Declaration Of Conformity
