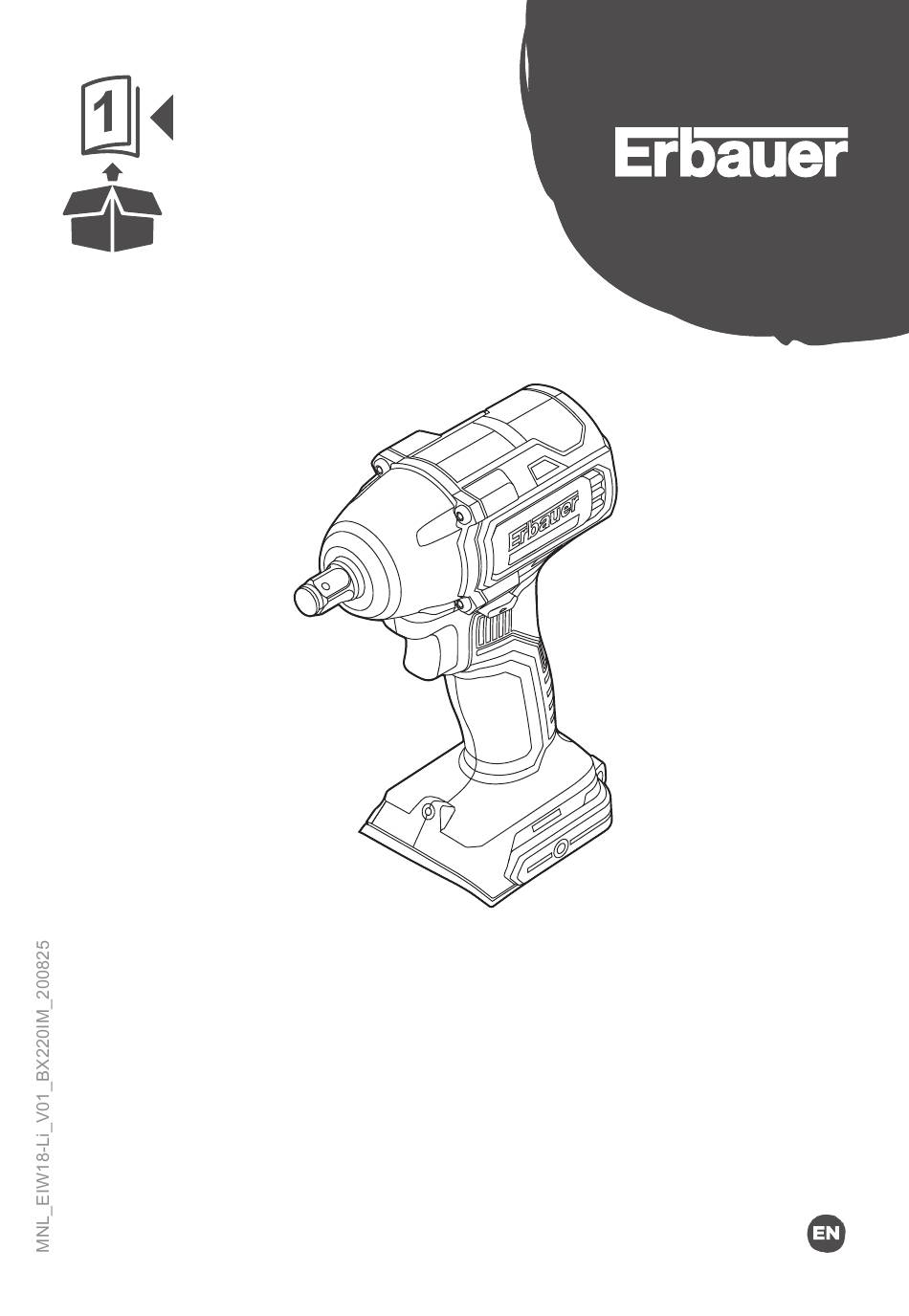

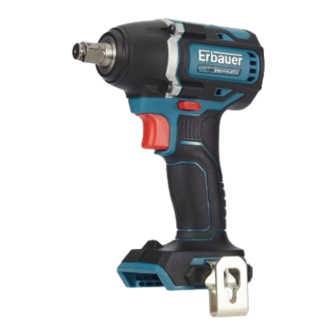

- Page 1 EAN. 5059340046624 EIW18-Li ORIGINAL INSTRUCTIONS...
- Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
- Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. (M4x12)
-
Page 4: Product Description
PRODUCT DESCRIPTION... -
Page 6: Safety Instructions
SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 7: Personal Safety
ot expose power tools to rain or wet conditions. Water c. Do n entering a power tool will increase the risk of electric shock. not abuse the cord. Never use the cord for carrying, d. Do pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts . - Page 8 ss properly. Do not wear loose clothing or jewellery. Keep f. Dre your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. devices are provided for the connection of dust g.
- Page 9 eep cutting tools sharp and clean. Properly maintained f. K cutting tools with sharp cutting edges are less likely to bind and are easier to control e the power tool, accessories and tool bits etc. in g. Us accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 10 not expose a battery pack or tool to fire or excessive f. Do temperature. Exposure to fire or temperature above 130 °C may cause explosion. llow all charging instructions and do not charge the g. Fo battery pack or tool outside the temperature range specified in the instructions.
-
Page 11: Residual Risks
Do not expose battery to water or salt water, or allow the battery to get wet. Do not disassemble or modify the battery. Do not place the battery in or near fire, on stoves or other high temperature locations. Do not place the battery in direct sunlight, or use or store the battery inside cars in hot weather. -
Page 12: Technical Specifications
PRODUCT DESCRIPTION 1. Friction ring 2. Square drive 3. Air vents 4. Forward/reverse rotation and lock control 5. Handle 6. Belt clip fixing hole 7. Battery pack (not included) 8. Power bar button 9. Battery pack release button 10. LED light 11. On/off switch with variable speed control 12. - Page 13 (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time). RATING LABEL EXPLANATION EIW18-Li = MODEL NUMBER E = ERBAUER IW = IMPACT WRENCH 18 = 18 V d.c.
- Page 14 ASSEMBLY SYMBOLS Read the instruction manual Wear eye protection Wear hearing protection. Wear a dust mask. Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire. They will explode and cause injury. Do not expose battery packs to heat in excess of 40°C Brushless motor / BL Keep Cool Battery Technology Manufacturing date code: Year of manufacturing (20yy) and week yyWxx of manufacturing (Wxx)
-
Page 15: Assembling The Machine
UNPACKING Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property. •... - Page 16 BATTERY PACK POWER BAR The Li-Ion battery pack (7) is equipped with a POWER BAR which is used to give an indication of the battery pack’s remaining charge. Press the POWER BAR button (8) to check battery charge as below. The LED will stay lit for approximately 5 seconds . 76-100% Charge 51-75% Charge 26-50% Charge 5-25% Charge under 5% Charge...
-
Page 17: Intended Use
INTENDED USE This tool is intended for the fastening and loosening of bolts, nuts and various threaded fasteners. This tool is not intended for use as a drill. OPERATION ON / OFF SWITCH (D) Depress the on/off switch (11) to start and release it to stop your tool. The on/ off switch is fitted with a brake function which stops the spindle immediately when you quickly release the switch. - Page 18 AUTOMATIC LED WORK LIGHT (F) The LED work light (10) will illuminate when the trigger switch is depressed slightly, and will automatically turn off a short while after the trigger switch is released. This provides additional light on the surface of the workpiece for operation in lower light situations. WARNING! Do not look directly into LED light.
- Page 19 OVERLOAD, TEMPERATURE AND CHARGING PROBLEM Problem Tool/ Battery Status Possible cause Solution Overload Product suddenly Extremely high Relieve the load protection Stops; The LED torque, binding and immediately, reset the work light (if fitted) is stalling situations, tool by switching off and flashing overloading of the back on again.
-
Page 20: Care And Maintenance
CARE & MAINTENANCE MAINTENANCE Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. - Page 21 GUARANTEE At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 2 year trade guarantee against manufacturing defects on our Erbauer power tool products.
-
Page 22: Declaration Of Conformity
Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product: Erbauer 18V cordless impact wrench EIW18-Li Serial number 00001-99999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:... - Page 24 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline (Freephone) UK 0800 324 7818 uk@kingfisherservice.com Eire 1800 932 230 eire@kingfisherservice.com...
