PROAIM Tango P-TNGO-01 Assembly Manual

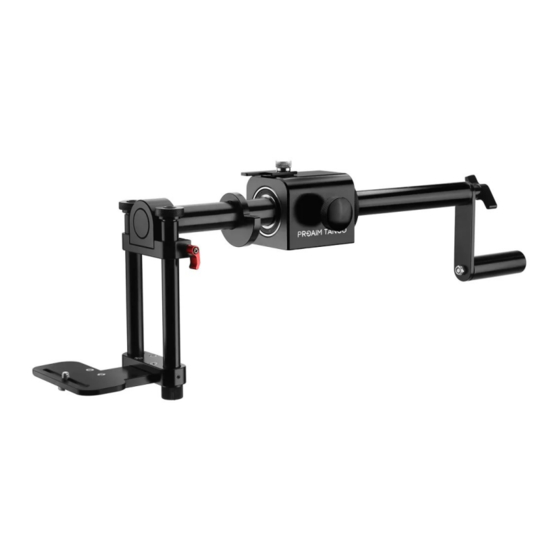

360' camera rotating dutch angle rig
Hide thumbs

Advertisement

Table of Contents

1
Tango 360° Camera Rotating Dutch Angle Rig (
P-TNGO-01)
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Tango 360° Camera Rotating Dutch Angle Rig
1.5mm L
Type Allen Key
Camera Platform
Camera Platform Rods with Stopper
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tango P-TNGO-01 and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM Tango P-TNGO-01

Summary of Contents for PROAIM Tango P-TNGO-01

  • Page 1 Tango 360° Camera Rotating Dutch Angle Rig ( P-TNGO-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Tango 360° Rig Setup  Loosen and remove the stopper of the camera platform rods, as shown in the picture.  Insert the rods into the camera platform and then secure them properly using a 1.5mm Allen key. Follow the same process on the other side as well.
  • Page 3  After inserting it into the rods, secure it properly with the help of the red knob and then secure the rods properly from the top with the help of stoppers.  Rods are properly secured via stopper. Camera Setup ...
  • Page 4  Then mount it on the Ball Head (Not Included) and properly secure it with the help of the knob.  Mount the camera (Not Included) on the camera platform plate. It is provided with a (1/4”-20) Screw, properly secure it with the help of the Allen key.
  • Page 5 (Not Included) and then push the red knob, as shown in the picture.  Now your Setup is ready to use. YOUR PROAIM TANGO 360° CAMERA ROTATING DUTCH ANGLE RIG ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
  • Page 6 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
