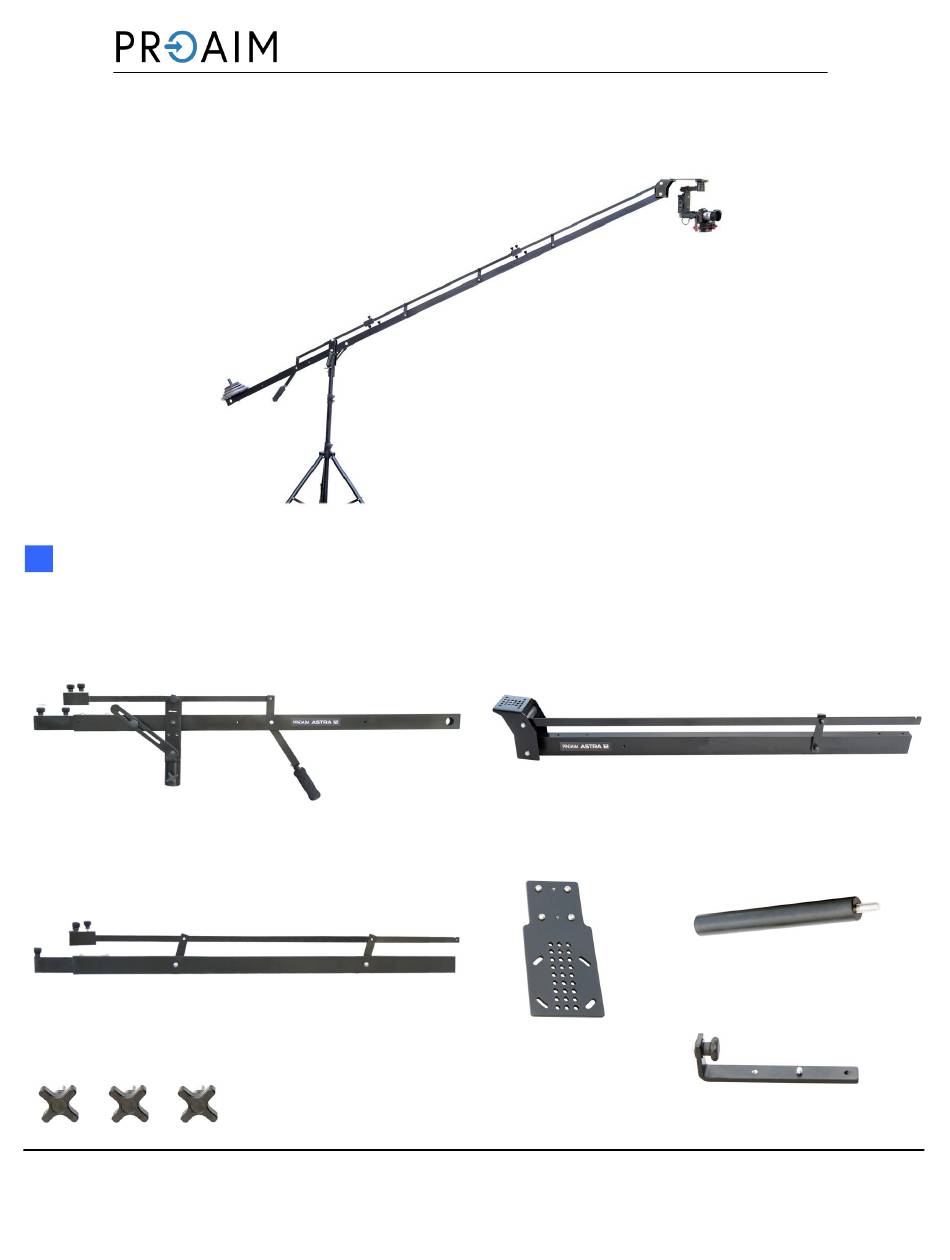

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that
is listed below.
Astra comes with a back section, a front section with your
choice of camera mount, and vertical and horizontal
counterweight bars.
Extension Section - 4ft
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
Astra 8ft & 12ft Camera Jib Crane
A s s e m b l y M a n u a l
Tightening knobs
All rights reserved.
statutes or in writing by the Publisher.
Camera Mount With Over Slung Mount.
Extension Camera Plate
Vertical Counterweight Bar
LCD Mounting Bracket
