Drive Wireless Follow Focus
(FF-WRLS-DR)
I N S T R U C T I O N M A N U A L
All rights reserved
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any
means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by
the applicable copyright statutes or in writing by the Publisher.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PROAIM FF-WRLS-DR
Summary of Contents for PROAIM FF-WRLS-DR

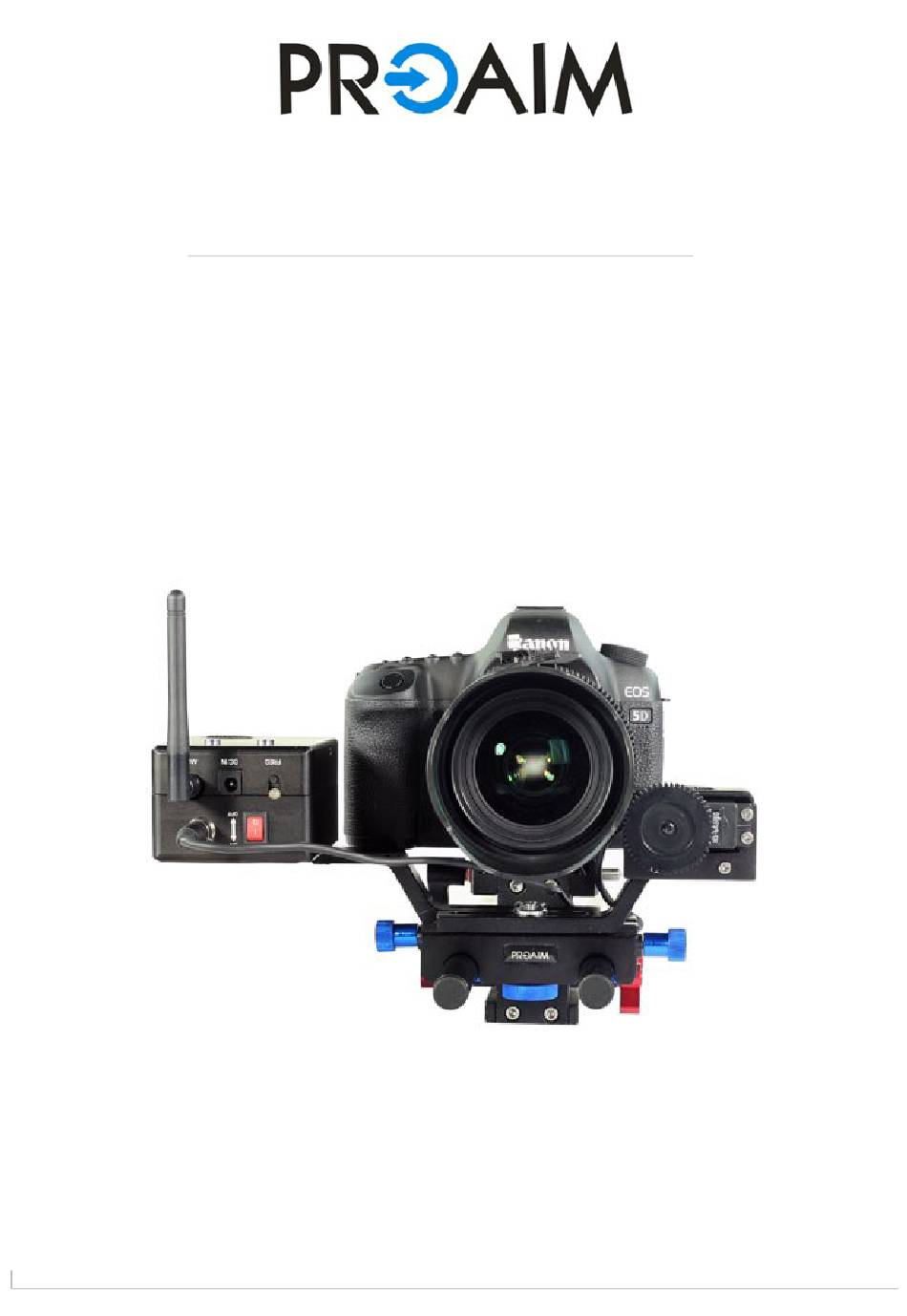

- Page 1 Drive Wireless Follow Focus (FF-WRLS-DR) I N S T R U C T I O N M A N U A L All rights reserved No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
- Page 2 PROAIM DRIVE WIRELESS FOLLOW FOCUS INTRODUCTION Proaim presents its exclusive wireless Follow Focus that allows you to set up a wireless lens control system on your camera equipped with a geared lens and either 15mm or 19mm support rods. It assists the camera operators in adjusting the focus or focal distance (zoom) of the camera shooting remotely.

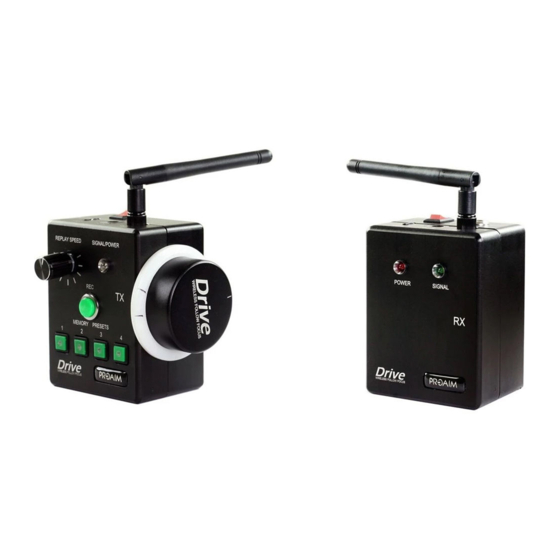

- Page 3 PROAIM DRIVE WIRELESS FOLLOW FOCUS ASSEMBLING OF PROAIM DRIVE WIRELESS FOLLOW FOCUS Insert the Anteena onto the Controller and Receptor. Controller power switch & receiver power switch: Controller power light is on for 2 seconds, then off; red power light and green signal light of the receiver are always on.
- Page 4 PROAIM DRIVE WIRELESS FOLLOW FOCUS The dial function: When adjust the desired focus the focus position can be recorded manually by engraving lines. Playback speed adjustment key : Uses the memory button to switch the focus and adjust speed. Adjusting the...
- Page 5 PROAIM DRIVE WIRELESS FOLLOW FOCUS The receptor and quick lock button installation Attach the quick lock button with receptor with the help of screws and tighten the screws with the help of screw driver. Install receptor and quick lock button : loosen the knob of quick lock button and mount it onto the 15mm rods.
- Page 6 Loosen the bottom knob and adjust the gear to match with the follow focus ring. Insert motor assembly power cord into receiver outlet. YOUR PROAIM DRIVE WIRELESS FOLLOW FOCUS ALL DRESSED UP AND GOOD TO GO (SHOWN WITH OTPIONAL ACCESSORIES)
- Page 7 PROAIM DRIVE WIRELESS FOLLOW FOCUS WARRANTY We offer a one year warranty for our products from the date of purchase. We will repair or replace your product, free of charge, in the event of a defect in materials or craftsmanship obtained during normal use or handling based on the user manual. Please note that we will not cover any shipping costs for returning the product to us.
