1
(JB-FR6T-00)

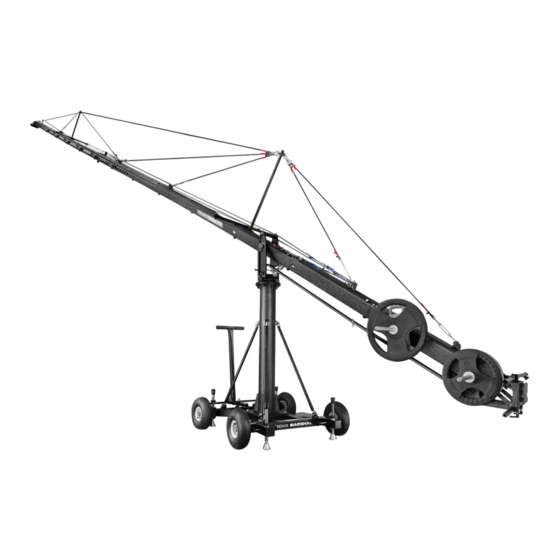

40ft Fraser Crane Starter Package
A s s e m b l y M a n u a l
What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM JB-FR6T-00
Summary of Contents for PROAIM JB-FR6T-00

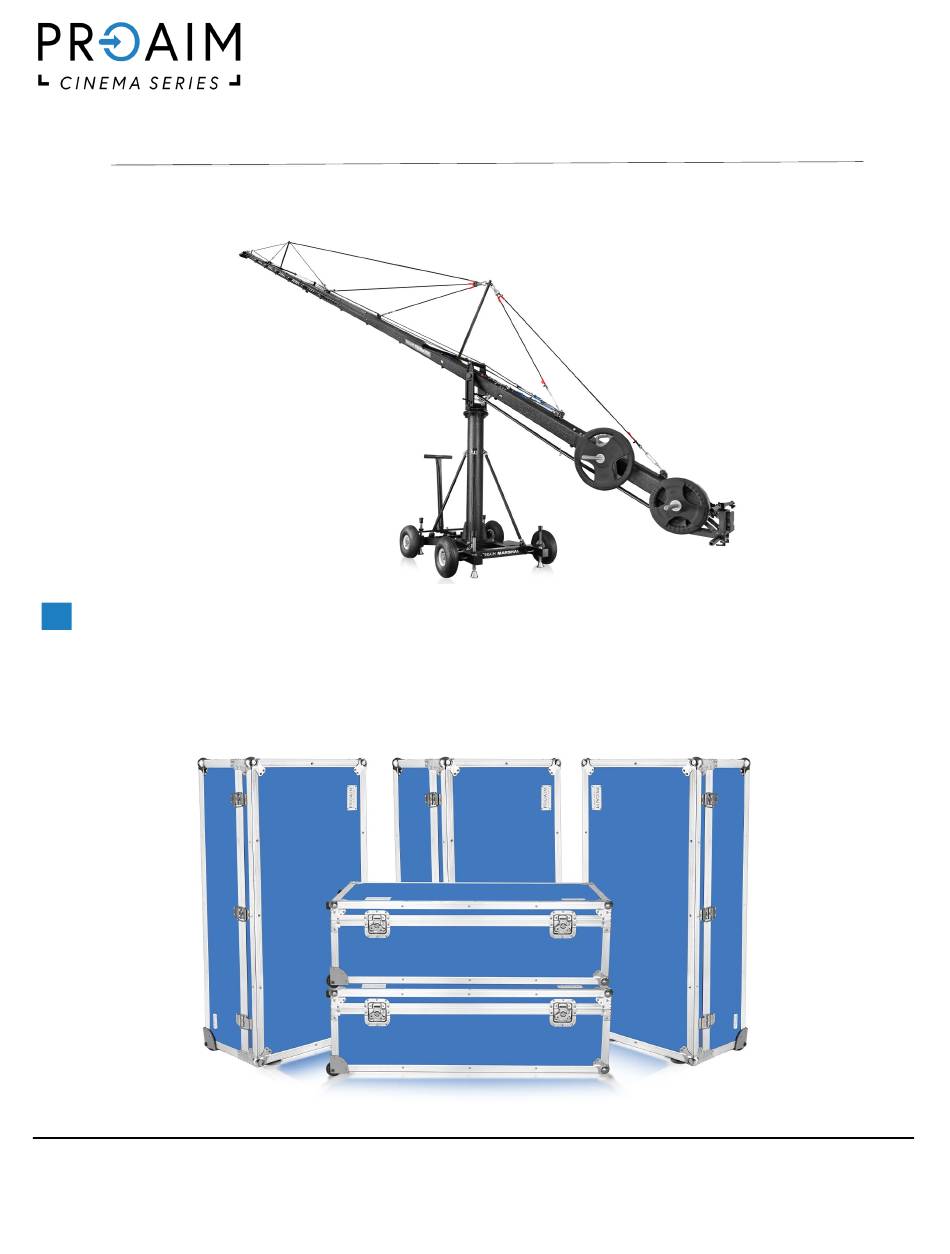

- Page 1 (JB-FR6T-00) 40ft Fraser Crane Starter Package A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 Box—1 Jib Sections 1, 2, 4, 5 & 6 Jib Sections Box—2 Jib Sections Box—3 Jib Sections 12 & 13 Jib Sections with Head Section BOX - 4 Jib Section 3, Accessories & Cables Main controller Box Frame Jib Section-3...
- Page 3 2 x LCD Monitor Arm Wire holder 2 x Weight rods & Weight Closers 1 x Controller Rod 11 x Velcro 1 x Wire Support Rode 3 x Tournbuckles Hook 1 x T-Type Allen key-5/16mm 1 x L-Type Allen key-5/16mm 2 x Spanner - 19 &...
- Page 4 Box—5 Column & Accessories 4 x Column Leveling Support Supporting Rods Rods Centre Column Cable Guide Support Rods Box—6 Carton Box 4 x Wheels 4 x Foots Marshal Dolly 3 x L-Type Allen keys (Sizes: 5/16” , 3/16” & 4mm) Crank Handle...
- Page 5 Safety Hints of Jib Crane ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO EQUIPMENT & OPERATOR! The crane may not be assembled or operated under influence of alcohol, drugs or any other intoxicating substances. Lack of attention while connecting the components together can cause substantial damage to equipment/operator.
- Page 6 Assembling the Dolly NOTE: To avoid unwanted accident while assembling the crane, please assemble the dolly with supporting feet. It also increases the stability. Loosen the bolt of the Marshall dolly using an Allen Key, and connect the wheel to it. ...
- Page 7 Once both the steps mentioned above are completed, you will see the dolly as shown in the image. Attaching the Center Column Place the center column onto the dolly. Tighten the bolts to secure it properly. Now, attach supporting rods to the column. Fix one end to the centre column and the other to the dolly base.
- Page 8 Remove the allen bolts before joining Section-2. Now connect it with Section-3 and tighten the bolts to secure it. NOTE: Repeat this process for rest of the sections. Attach them towards the other end of Section-3. Similarly, connect Section-1 with the other end of Section-2.
- Page 9 Attaching the Blue Stability Cables Connect one 34.2ft cable with side hook on Section-13 & connect it to the clamp on Section-2, while towing it from one side of jib. Repeat the same process with another 34.2ft cable, towing it from the other side of jib. ...
- Page 10 Attaching the Red Stability Cables Connect one end of 3.10ft cable with a hook on Cable Guide Rod on Section-3 and another end to the clamp on Section-2. Adjust the cable with the help of Cable Tensioner. Attach 6.6ft cable to same hook on Cable Guide Rod and another end to the clamp on Section-1.
- Page 11 Connect the other end of this cable with clamp on Section-7 of the jib. Attaching the Yellow Stability Cables NOTE: Join all yellow cables (13’, 5.9’x2, 2.9’ & 2.10’) together, make it as one long cable and attach it to the jib.
- Page 12 Hub Section and the other end with Main Controller Box Frame. Insert Controller Rod into Main Controller Box Frame and tighten the knobs correctly to secure it. YOUR PROAIM 40FT FRASER CRANE STARTER PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 13 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
