PROAIM PT-GOLD Assembly Manual

Gold pan tilt head
Hide thumbs
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual

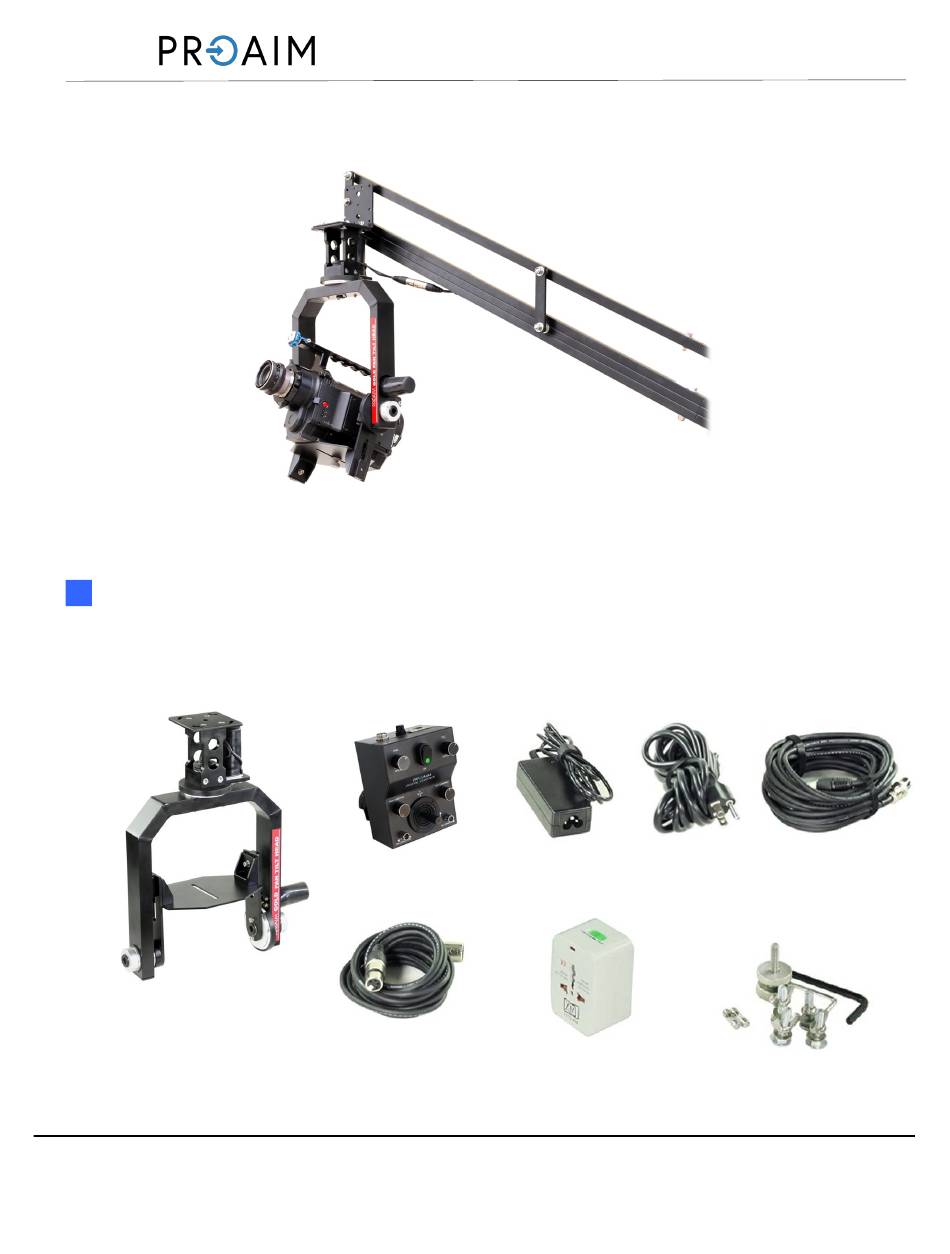

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything
that is listed below.

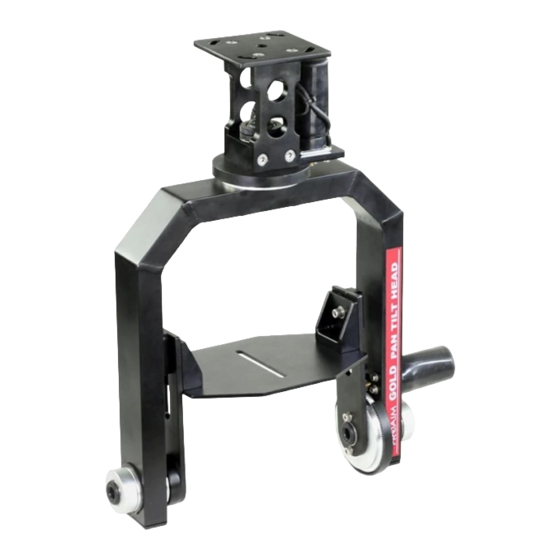

Gold Pan-Tilt Head
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable
Gold Pan Tilt Head
A s s e m b l y M a n u a l
Joystick Controller box
3 meter long 4pin XLR
cable (for using 12VDC
Battery Packs)
All rights reserved.
copyright statutes or in writing by the Publisher.
(PT-GOLD)
12volt AC Adapter
Universal Adapter
1
15meter/49foot
long Control Cable
Accessories

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-GOLD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROAIM PT-GOLD

Summary of Contents for PROAIM PT-GOLD

  • Page 1 Gold Pan Tilt Head (PT-GOLD) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
  • Page 2 Install the 12 volt DC power (4-pin XLR) in rear of Joystick Box. NOTE: Any 12 volt battery may operate the PROAIM GOLD PAN TILT HEAD as long as the connector mates and is #1 pin Negative and #4 pin Positive.
  • Page 3 Mounting Camera Setup  Attach & secure your camera on the camera platform of Head with the help of provided bolt. NOTE: Connect your camera’s video cable, power cable and control cables if applicable. BALANCING Follow these steps to balance the head:- ...
  • Page 4 The PROAIM™ GOLD PAN TILT HEAD circuitry is built entirely into the joystick box. The only other require- ment is the AC power pack (provided) or battery power. The power pack can handle 90-240 volts. Users will need the appropriate plug adapter for local use.
  • Page 5 All joysticks are linear, meaning that each degree of movement of the stick correlates to the output. On the 12 volt PROAIM™ GOLD PAN TILT HEAD half deflection of the joystick means approximately 6 volts sent to the motors. But with the advent of Digital we can now control the taper of the joystick, making in Logarithmic as well.
