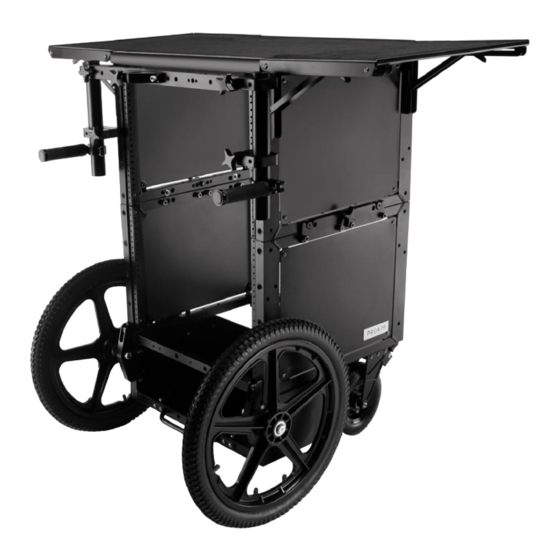

Soundchief Cart | Vertical Workstation (CT-SDCF-01)
A s s e m b l y M a n u a l

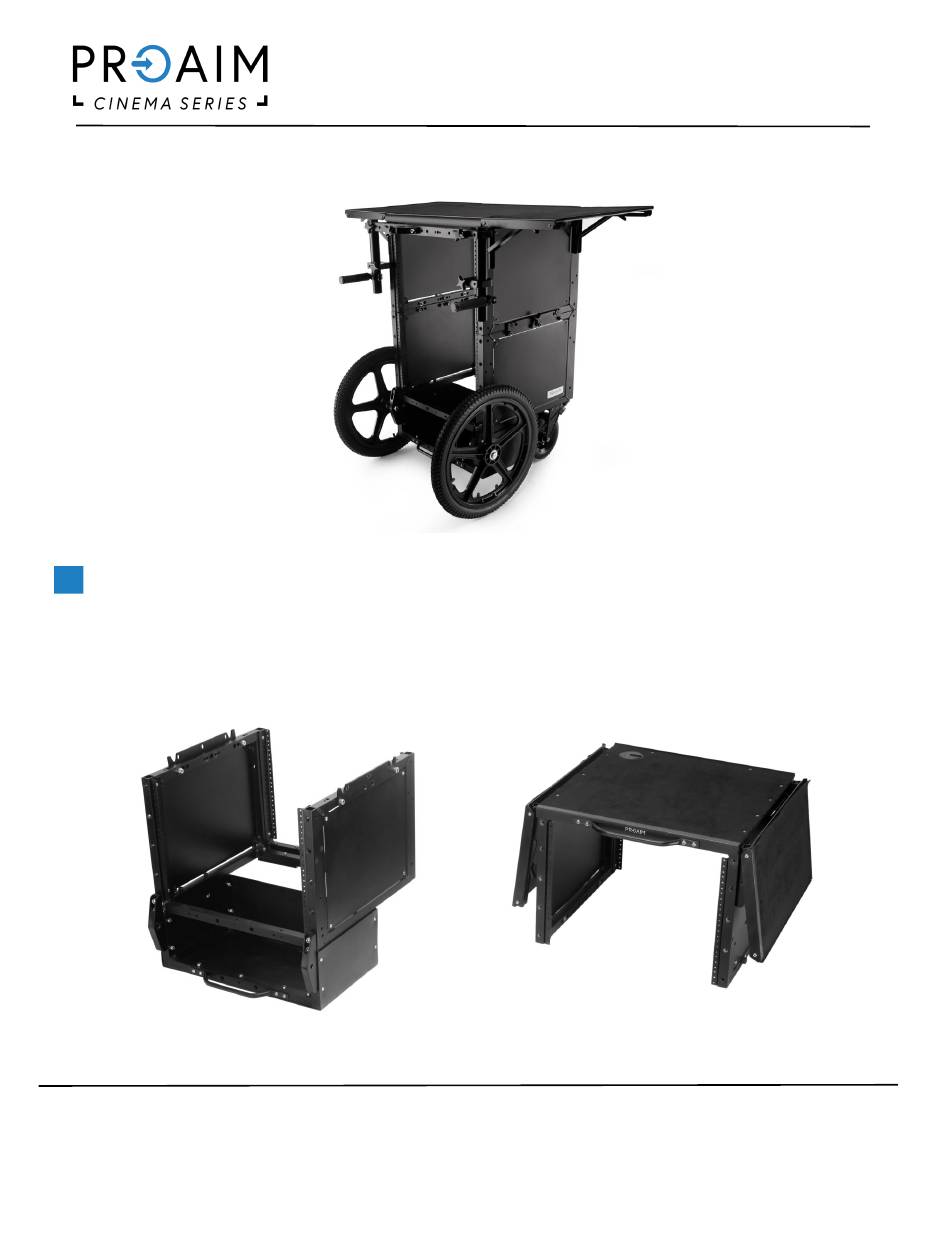

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Top Shelf
Bottom Shelf
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Related Manuals for PROAIM CT-SDCF-01
Summary of Contents for PROAIM CT-SDCF-01
- Page 1 Soundchief Cart | Vertical Workstation (CT-SDCF-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 4 x Speed Rail Clamps 9” Dovetail Wheels 20” Pneumatic Wheels Crossbar Speed Rails 4 x knobs & washers for Speed Rail 2 x Handles 3 x Shelf knobs Soundchief Cart Setup 9” Dovetail Wheels Assembly • Unlock the 9” dovetail wheel’s lever and attach the wheel by sliding into the cart bottom base and securely tighten it.
- Page 3 20” Pneumatic Wheels Assembly • Insert the bolt into the center of the 20" wheel and then insert the bush from the opposite side, as shown in the image. • Attach this wheel to the side of the cart and securely tighten the bolt using a 19mm spanner.
- Page 4 • Slide the Speed Rail Clamp into the crossbar and insert the knob and the washer. NOTE: Ensure that you slide the Speed Rail Clamp from the flat side. • After inserting the knob, securely tighten it. • Repeat the same process to attach the Speed Rail Clamp on the other end of the crossbar.
- Page 5 Speed Rail Mounting • Loosen the knob of both the Top and bottom clamp. • Now, insert the Speed rail into the clamps. • After inserting the Speed rail, tighten both the top and bottom knobs to secure it. • Repeat the same process to insert the second Speed rail.
-
Page 6: Handle Assembly
Rotation of Top Shelf Towards Dovetail wheels • Loosen and remove all the shelf knobs. • Repeat the same process to remove the knobs from the other side of the shelf. • Now, rotate the Top shelf and mount it on the bottom shelf. - Page 8 YOUR PROAIM SOUNDCHIEF CART VERTICAL WORKSTATION ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer a one-year warranty for our products from the date of purchase. Within this period, we will repair it without charge for labor or parts. The warranty doesn’t cover transportation costs, nor does it cover a product subjected to misuse or accidental damage.
