CT-X
Installation Guide
Display
screen
Features
y Find more leaks faster and eliminate false detects with revolutionary new tag
y Enable complete channel lineup flexibility from 130–150 and 250–1220 MHz with full-
band frequency agility
y Provide full spectrum coverage with up to 4 tags in 1RU chassis
y Non-interfering tag technology does not impact services
y Integrated web interface enables remote setup and simplified administration
Preparation for use
When you unpack the unit, do the following:
y Inspect the unit for damage. If damaged, put back in box and contact VIAVI customer
service (see the Technical assistance section).
y If undamaged, save the box and packing materials in case you need to ship the unit in
the future.
WARNING:
Be sure to verify whether the AC line voltage is correct for the
device or damage may occur.
Only use the AC power cable supplied with the product.

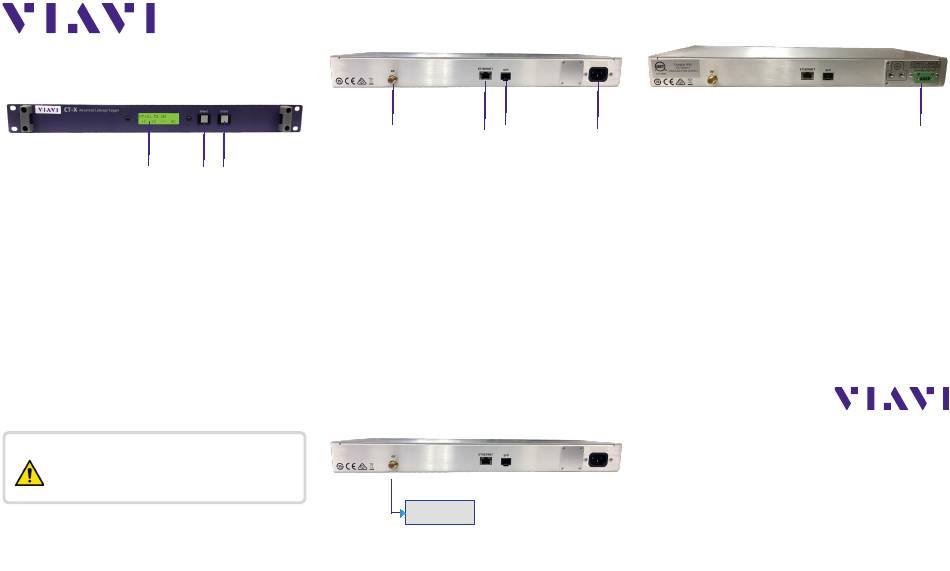

Rear view
AC power model
Select
Enter
button
button
Installation
The CT-X needs to be installed where it can be injected into the system to reach the customer
base at the following frequency ranges:
y Carrier source – Integrated proprietary dual CW, or chirp, source output
y Broadband output – 130–150 and 250–1220 MHz
Typically, a CT-X should be installed at each location that an existing CT-2, 3, or 4 is currently
installed, and in many cases this may require a CT-X to be installed in each hub site and/or
each headend.
1.
Select a suitable rack panel location near the combiner where RF signals reside.
2.
Mount the CT-X in the rack using the mounting holes on the front of the unit and
the four retaining screws.
Be careful handling the unit as it may have sharp edges, and avoid pinching your
fingers while installing into the rack.
3.
Connect the device to AC power or -48 volt power if using the DC model.
4.
Verify the unit is powered and Transmit (TX) is disabled. This is the default setting
and is necessary to avoid impacting service during setup.
5.
Connect the device to the combiner as shown below.
6.
See the CT-X User's Guide to set up the unit.
RF output
Ethernet
SFP
optical
OUT
COMBINER
DC power model
AC power
input
Technical assistance
If you require technical assistance, call 1-844-GO-VIAVI / 1.844.468.4284.
For the latest TAC information, visit
http://www.viavisolutions.com/en/services-and-support/support/technical-assistance
VIAVI Solutions
North America
Latin America
EMEA
APAC
All Other Regions
email
22137814
Nov 2020
English
-48 volt DC
power input
1.844.GO VIAVI / 1.844.468.4284
+52 55 5543 6644
+49 7121 862273
+1 512 201 6534
viavisolutions.com/contacts
Trilithic.support@viavisolutions.com
© 2020 VIAVI Solutions Inc.
Product specifications and descriptions in this
document are subject to change without notice.
