Viavi T-BERD 5800 Testing Manual

Rfc-2544 layer 3 ipv4
Hide thumbs Also See for T-BERD 5800:

Advertisement

Table of Contents

Table of Contents
Scope ................................................................................................................................................................ 2
1.

Hardware Description ............................................................................................................................... 3
2.

T-BERD 5800 Remote Unit setup ............................................................................................................ 4
2.1

Information requirements .................................................................................................................. 4
2.2

Test Setup .......................................................................................................................................... 4
3.

T-BERD 5800 RFC-2544 Test Procedure ................................................................................................ 8
3.1

Information requirements .................................................................................................................. 8
3.2

Test Setup .......................................................................................................................................... 8
3.3

Configuring RFC-2544 Test Settings ............................................................................................. 10
3.4

Running the Test ............................................................................................................................. 12
3.5

Saving Test Results ......................................................................................................................... 14

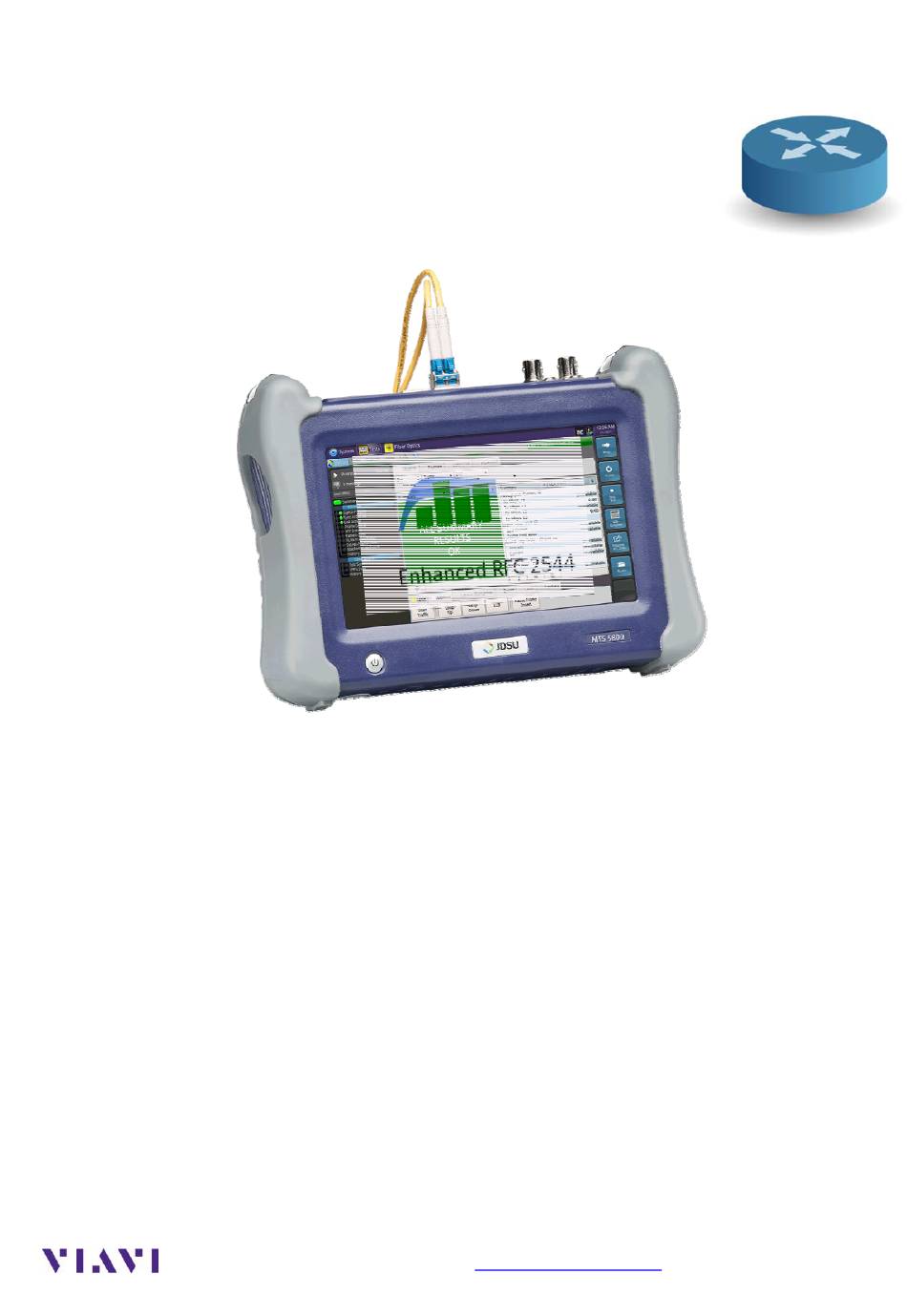

Viavi T-BERD 5800
RFC-2544 Layer 3 IPv4
Testing Guide
Version 25.x
January 15, 2017
Technical Support
tac@viavisolutions.com
Page 1 of 14











1-844-468-4284

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-BERD 5800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viavi T-BERD 5800

Summary of Contents for Viavi T-BERD 5800

  • Page 1: Table Of Contents

    Version 25.x January 15, 2017 Table of Contents Scope ................................2     Hardware Description ..........................3     T-BERD 5800 Remote Unit setup ......................4     Information requirements ........................4     Test Setup ............................4     T-BERD 5800 RFC-2544 Test Procedure ....................8  ...

  • Page 2: Scope

    (KPIs) including Throughput, Delay and Frame Loss. Viavi’s Enhanced RFC 2544 Test Suite also measures Jitter and Committed Burst Size (CBS) to verify conformance to a Service Level Agreement (SLA) or Service Level Objectives. This document is not intended to be a user guide.

  • Page 3: Hardware Description

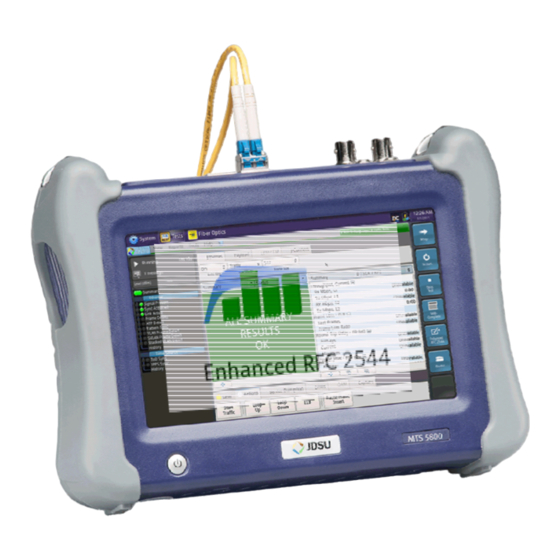

    1. Hardware Description The T-BERD 5800 is a portable test tool for Ethernet testing. The product can also be optioned to support T1, DS3, SONET, OTN, Fiber Channel, CPRI, and OBSAI. Test connections are made from the top of the mainframe.

  • Page 4: T-Berd 5800 Remote Unit Setup

    T-BERD 5800v2, connect the Port 1 10/100/1000 RJ-45 jack to the port under test using CAT 5E or better cable, and proceed to step 5. For optical testing, or for copper testing on the T-BERD 5800-100G, proceed to step 2.
  • Page 5 Page 5 of 14 Load Test If a shortcut for this test is stored on the T-BERD, use the Test List to launch the test and proceed to step 8. All Test If the Select Test menu is hidden, tap to display the menu.
  • Page 6 Page 6 of 14 8. Reset Test to Defaults In the Tools Panel, , select . Press to continue. 9. Setup Press the Setup Soft Key , on the top right side of screen. Select the indicated folders and configure your test as follows. Leave all other values at default, unless specified in the Work Order.
  • Page 7 Page 7 of 14 10. Results Press the Results Soft Key, 11. Turn Laser On For 1GigE, 10GigE, 40GigE, or 100GigE Optical tests, select the Laser tab in the Actions panel, and press . The button will turn yellow and be relabeled 12.

  • Page 8: T-Berd 5800 Rfc-2544 Test Procedure

    T-BERD 5800v2, connect the Port 1 10/100/1000 RJ-45 jack to the port under test using CAT 5E or better cable, and proceed to step 5. For optical testing, or for copper testing on the T-BERD 5800-100G, proceed to step 2.
  • Page 9 Page 9 of 14 Load Test If a shortcut for this test is stored on the T-BERD, use the Test List to launch the test and proceed to Section 3.3. All Test If the Select Test menu is hidden, tap to display the menu.

  • Page 10: Configuring Rfc-2544 Test Settings

    Page 10 of 14 Configuring RFC-2544 Test Settings The RFC-2544 workflow consists of a series of screen that allow the user to configure the test, run the test, and generate a report. Figure 5: RFC-2544 GUI Step Action Details Configure If this is the first time using the RFC2544 test and your unit does not have pre-loaded configuration files, tap the button next to “Start a New...
  • Page 11 (1522 with VLAN), also enter and Packet Length Lengths select the packet length of the MTU.  Deselect (uncheck) all other packet lengths. RFC 2544 Zero-in Process Viavi Enhanced Tests: Measurement Accuracy To within 1 Mbps Throughput Test Procedure RFC 2544 Standard Enter minimum value: ...

  • Page 12: Running The Test

    Page 12 of 14 Save Profile If you wish to save this configuration as a new profile, enter a File name, and , tap , and tap twice. Otherwise, tap and tap Running the Test Step Action Details QuickCheck Ensure that the loopback device has been setup, and tap to run J- QuickCheck to verify local connectivity, loop up the remote loopback device, and check available bandwidth.
  • Page 13 Page 13 of 14 2. Run Tests , and tap . The T-BERD will loop up the loopback device and run all configured tests. At the conclusion of the test, the T-BERD will automatically loop down the loopback device. Pass/Fail status for each test will be indicated by green checkmark, , or red x, .

  • Page 14: Saving Test Results

    Page 14 of 14 Saving Test Results Step Action Details 1. Create Report twice and enter Customer name, Technician ID, Test Location, Work Order Number and Comments/Notes. again and tap 2. View Report View the Report and tap 3. Exit to shut down the RFC 2544 test.
