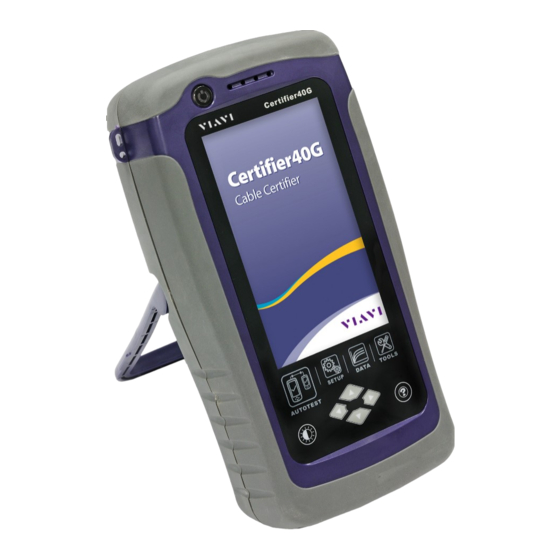

- Page 1 CERTIFIER40G MPO Certification Testing User Manual...
- Page 2 Certifier Series (C40G)
- Page 3 Should Viavi Solutions and the user have a separate written agreement with warranty terms covering the material in this document that conflict with these Terms, the warranty terms in the separate agreement shall control.
- Page 4 General Safety Information WARNING Do not use the device if it is damaged. Before you use the device, inspect the casing. Look for cracks or missing plastic. Do not operate the device around explosive gas, vapor, or dust. Always use the device with the cables provided. Observe all markings on the device before establishing any connection.
- Page 5 DIN EN 55024, Edition:2003-10 (IEC/CISPR 24:1997, modified + A1:2001 + A2:2002); EN 55024:1998 + A1:2001 + A2:2003 DIN EN 55022; VDE 0878-22:2008-05 (IEC/CISPR 22:2005, modified + A1:2005); EN 55022:2006 + A1:2007 Regulatory Markings The CE mark is a registered trademark of the European Community.
- Page 6 Declaration of Conformity Manufacturer‘s Name Psiber Data Pte. Ltd Manufacturer’s Address 3 Science Park Drive #03-08, The Franklin Singapore Science Park 1, Singapore 118223 Declares under sole responsibility that the product as originally delivered Description Cable Certification Tester Kit Equipment Cable Certifier Complies with the essential requirements of the following applicable European Directives and carries the CE marking accordingly:...
-
Page 7: Table Of Contents
Contents Chapter 1: Getting Started ........................8 Unpacking the box ........................8 Chapter 2: Configuring Certifier ......................9 Certifier User Interface ......................9 Touch Screen Layout ........................ 9 The One Touch Access Buttons ....................11 Chapter 3: Setting Reference ......................17 Chapter 4: Configuring an AUTOTEST .................... -
Page 8: Chapter 1: Getting Started
Chapter 1: Getting Started Unpacking the box Power Meter (Local) Type A Tail Cords Adapter Type A Reference Cord Light Source (Remote) Type B Reference Cord Adapter Mating Couplers... -
Page 9: Chapter 2: Configuring Certifier
Chapter 2: Configuring Certifier Certifier User Interface Touch Screen Layout The Graphical User Interface (GUI) in version 7.0’s firmware has been updated with a more responsive system and quick-access menus. Certifier boots up to the SETUP screen. It is categorised into 5 groups: 1. -
Page 11: The One Touch Access Buttons
1. The Status bar displays the current date, talkset and battery level. 2. The Channel Selector provides selection on which channel loss limit will be applied on a 12 core MPO cable during an AUTOTEST. 3. The Test Settings group provides results oriented configurations necessary to perform an AUTOTEST. - Page 12 MPO AUTOTEST results Detailed loss results Detailed polarity results SETUP The “SETUP” button provides setting options necessary to conduct an AUTOTEST and configure the device. These options include – Channel Selector Channel Selector provides selection on which channel(s) loss limit will be applied on during an AUTOTEST.
- Page 13 Test Settings Test Settings provides results oriented configurations necessary to perform an AUTOTEST. Network Limit Choose from 40GBASE-SR4 and 100GBASE-SR10 limit to perform MPO test. SR4 uses a single MPO ribbon with four strands to transmit and four strands to receive. SR10 uses a 24 strand MPO cable with ten strands to transmit and 10 strands to receive.
- Page 14 Cable Select “Generic MMF” cable. Connector Select “Generic” connector. Label Source Refer to User Manual – Certifier Copper Certification or User Guide – List Based Testing for more information. List Based Testing List based testing allows creation of label list in the J-Report software on PC and then bring the list to Certifier.
- Page 15 DATA The “DATA” button provides archive and data management ability to saved sites and test results. Saved test results can be renamed or deleted in this option. Test results for MPO can be found in the “Others” tab. View results Note: Deleting a site will also delete its containing test results.
- Page 16 TOOLS The “TOOLS” button provides advanced options for in-depth troubleshooting and advanced Certifier users. These options include- Requires: Requires: Requires: Local and Remote Local and Remote Local and Remote Set Reference – Establish Power Meter –Measures Fiber Map – Performs test test conditions between the power loss from a to verify mapping and...
-
Page 17: Chapter 3: Setting Reference
Chapter 3: Setting Reference It is necessary perform a set reference measurement when reference cords or adapters are removed and re-attached. If there is a mismatch in firmware versions, Certifier will deny Autotest. Please also check that calibration is not expired before testing. -
Page 19: Chapter 4: Configuring An Autotest
Chapter 4: Configuring an AUTOTEST After configuring the system settings, follow these steps to set up an autotest. 1. Press the SETUP button > Project Settings a. Site – Create or select a Site b. Operator – Create or select an Operator c. -
Page 20: Testing Guide For 12-Core Mpo Testing
Testing Guide for 12-core MPO Testing 1. Replace the reference cord with the trunk cable of the same type to be tested. Please ensure the fiber cables are cleaned using the cleaning kit provided in the kit . Test cord Test cord pinned pinned... -
Page 21: Chapter 5: Performing An Autotest
Chapter 5: Performing an AUTOTEST Press the AUTOTEST button once settings and limits have been selected. Certifier will use the last configuration or factory settings to perform the AUTOTEST if new settings are not configured. Certifier will display summarized result with PASS or FAIL once autotest is completed. Press the “Loss”... - Page 22 Type B MPO cable Type C MPO cable If 40GBase-SR4 or 100GBase-SR10 limits are selected, channels 5, 6, 7, 8 and 1, 12 will be deselected automatically. Click on the parameter to display a more comprehensive individual result. In detailed view, the absolute power and loss values can be displayed in grid or chart format and polarity can be displayed in simplified text or map format.
-
Page 23: Managing Test Result(S)
Managing test result(s) Test results can be manually saved by pressing the “Save” button after an AUTOTEST is completed. When prompted, enter label name and click “OK” to save. The “Save” icon will disappear once saving is completed. To view saved results, 1. -
Page 24: Exporting Test Results Into J-Report Pc Software
Exporting test results into J-Report PC Software Refer to User Manual – Certifier Copper Certification for more information on exporting test results into J-Report PC Software. Refer User Manual – J-Report for more information on how to use the software. - Page 25 Viavi Solutions North America: (Toll Free) 1-844-GO-VIAVI / 1-844-468-4284 All other regions: www.viavisolutions/contacts Email: customer.care@viavisolutions.com...
