4 Auto Multimeter

4.1 Main Menu

Make sure X-431 PAD main unit and the sensorbox are properly connected
(Refer to Chapter 3.1 Connections for details), power on X-431 PAD main unit
and enter the function menu interface, click "Multimeter" to display the test menu.

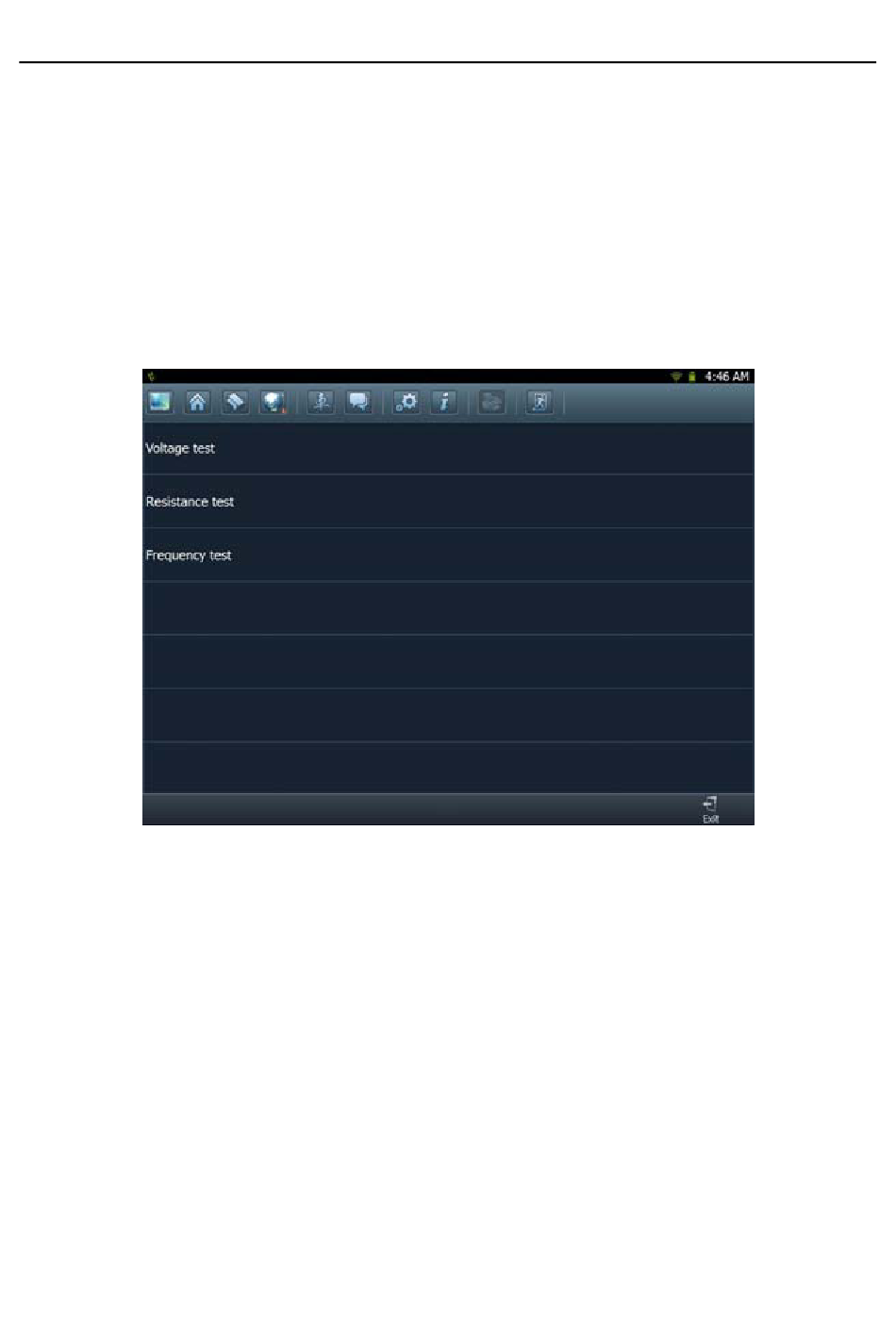

See Fig. 4-1.
Fig.4-1
Click the desired test as shown on Fig.4-1 to perform related test.
The operation method on Resistance test and Frequency test is identical to that
of Voltage test. Here just take Voltage test as an example for demonstration.
Click "Voltage test" to enter Fig. 4-2.
