Launch SmartLink C Dongle Quick Start Manual

Quick Start Guide

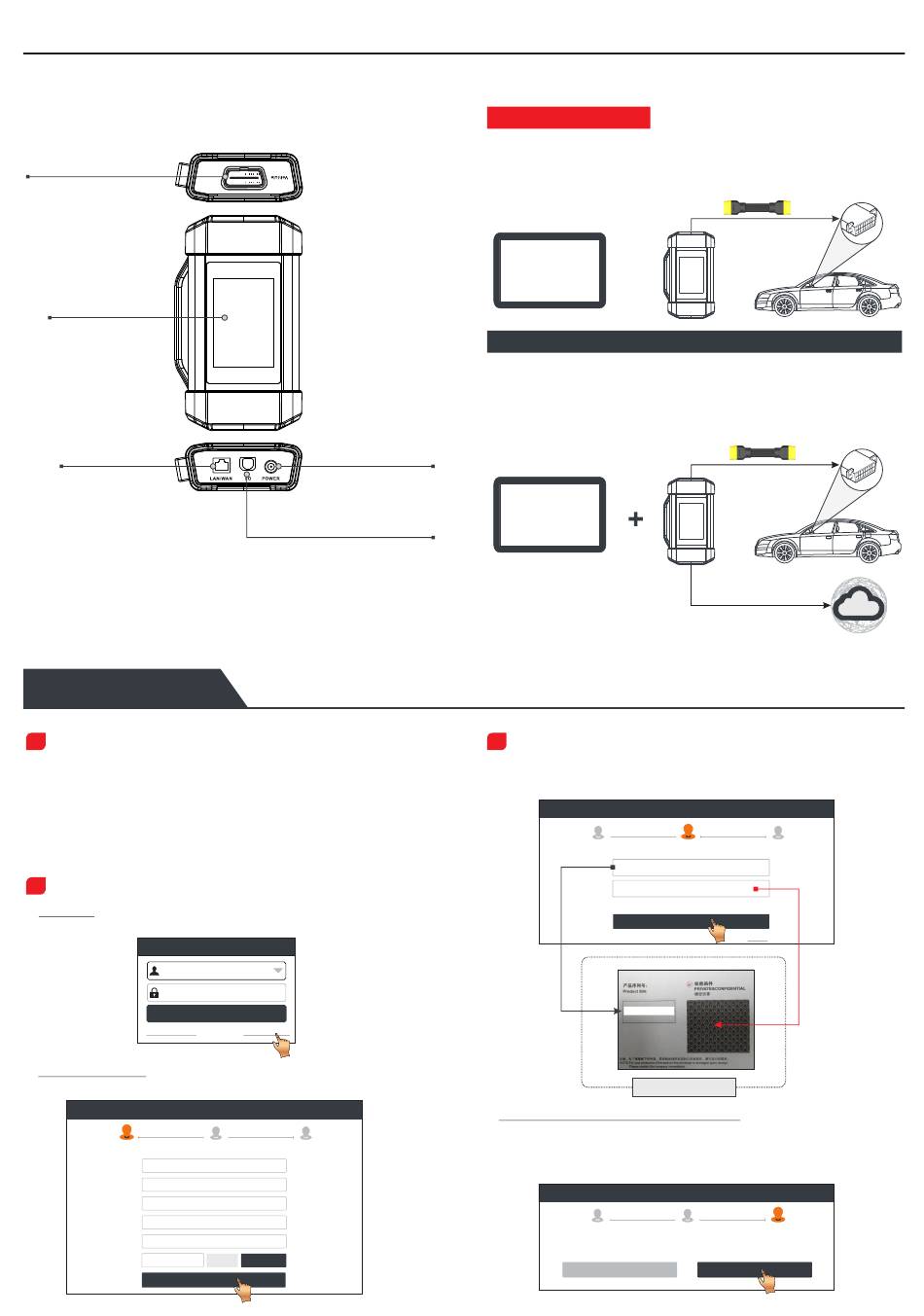

Knowledge of SmartLink C Dongle
The SmartLink C dongle can work as a VCI (Vehicle Communication Interface) device,
together with the LAUNCH-specific diagnostic tool, or as a SmartLink Customer device,
requesting technical assistance from a master technician (SmartLink B).
OBD-16 Diagnostic Connector
3.97 Inch Touch Screen
LAN/WAN Port
(Connects the crossover
cable. Only applied in
the "SmartLink" mode.)
*Warning: The SmartLink C dongle obtains power through the vehicle's DLC, and it is
prohibited to connect to an external DC power supply. No responsibility can be
assumed for any damage or loss caused as a result of not strictly following the above
method.
Initial Use
1 WLAN Setup
The tablet has built-in WLAN module that can be used to get online. Once you're online,
you can register the tool, update diagnostic software & apk, surf the Internet and send
email on your network.
1. Tap on [Settings] on the home screen and then [WLAN] to configure WLAN setting.
2. Select the desired WLAN connection from the list (Password may be required for
secured networks).
3. When "Connected" appears, it indicates that it is properly connected to the network.
2
Register Update
&
1. Launch App: tap on the application icon on the home screen, and then tap on "Login"
on the upper right corner of the screen. Tap "New Registration" to go to Step 2.
Username
Password
Retrieve password
2. Create an App Account: Input the information (items with * must be filled) and then tap
on "Register."
Register
1
Create an Account
Username
*
Password
*
Confirm Password
*
Email
*
Select Country
*
* CAPTCHA
DC-IN Port
(Currently disabled and
for manufacturer use only.
See "* Warning".)
Data I/O Port
(Connects the data cable.)
Login
Login
New Registration
2 3
Activate VCI Finish Registration
CAPTCHA
Register
The SmartLink C dongle can be applied in the following situations(*For other application
scenario, see User Manual):
1. W orks as a VCI device
In this mode, it needs to work in conjunction with the Diagnose module of the diagnostic
tool, which is used to obtain vehicle data, and then send it to the diagnostic tool for
analysis via WiFi / BT / USB communication (*The available communication method depends
on the hardware of the diagnostic tool).
Diagnostic Tool
WiFi/BT /
(Using " Diagnose "
USB
function)
2. W ork as a SmartLink C(Customer) dongle (In the case of SmartLink Diag.)
It can be used if users need remote technical assistance from master technicians. In this
mode, it does not communicate with the diagnostic tool, but it needs to work together with
the SmartLink module of the diagnostic tool
remote diagnostic requests, and the SmartLink C dongle is networked to receive and
execute commands from the remote SmartLink B (Business).
Diagnostic Tool
(Using " SmartLink "
function)
*Remarks: During the SmartLink diagnosis,
especially during remote online programming,
it is recommended that the vehicle battery is
connected to a charging power source. Doing so
can prevent the vehicle from running out of
power and failing to start due to long diagnosis
time.
2
Register Update (Continued)
&
3. Activate VCI (SmartLink C):
Input the Product S/N and Activation Code (can be
obtained from the included Password Envelope), and then tap on "Activate".
Register
1
Create an Account
Serial Number
Activation Code
98********00
Password Envelope
4. Finish Registration & Download Diagnostic Software: Tap on "Yes" to enter the vehicle
software download screen. Tap on "Update" on the update page to start downloading.
Once downloading finished, the software packages will be installed automatically.
*Note: All software is updated periodically. It is recommended to check regularly for updates
and install the latest software version for the best service and functions.
Register
1
Create an Account
Congratulations! You have successfully completed your registration. Do you want to download
the diagnostic software now?
No
LAUNCH
OBD II Extension Cable
Vehicle's DLC
. The diagnostic tool is mainly used to issue
OBD II Extension Cable
Vehicle's DLC
2
3
Activate VCI Finish Registration
Where is my activation code?
Activate
>> Skip
3
2
Activate VCI Finish Registration
Yes
Internet
