Predefined Waveform Simulation - Launch Sensorbox User Manual

LAUNCH
X-431 PAD Sensorbox User's Manual
[Return]: returns to the previous interface.
After setting, click [Start] to perform the test.

3.2.3 Predefined waveform simulation

X-431 PAD provides some common sensor waveforms which have been
predefined to facilitate users to simulate sensor signals. As long as you call out
the predefined waveform, then click "Start" to start simulating output of
corresponding sensor waveform and no more parameter settings of simulation
waveform are required.
In Fig. 3-1, click "Predefined waveform simulation" to enter the screen shown as
Fig.3-4.

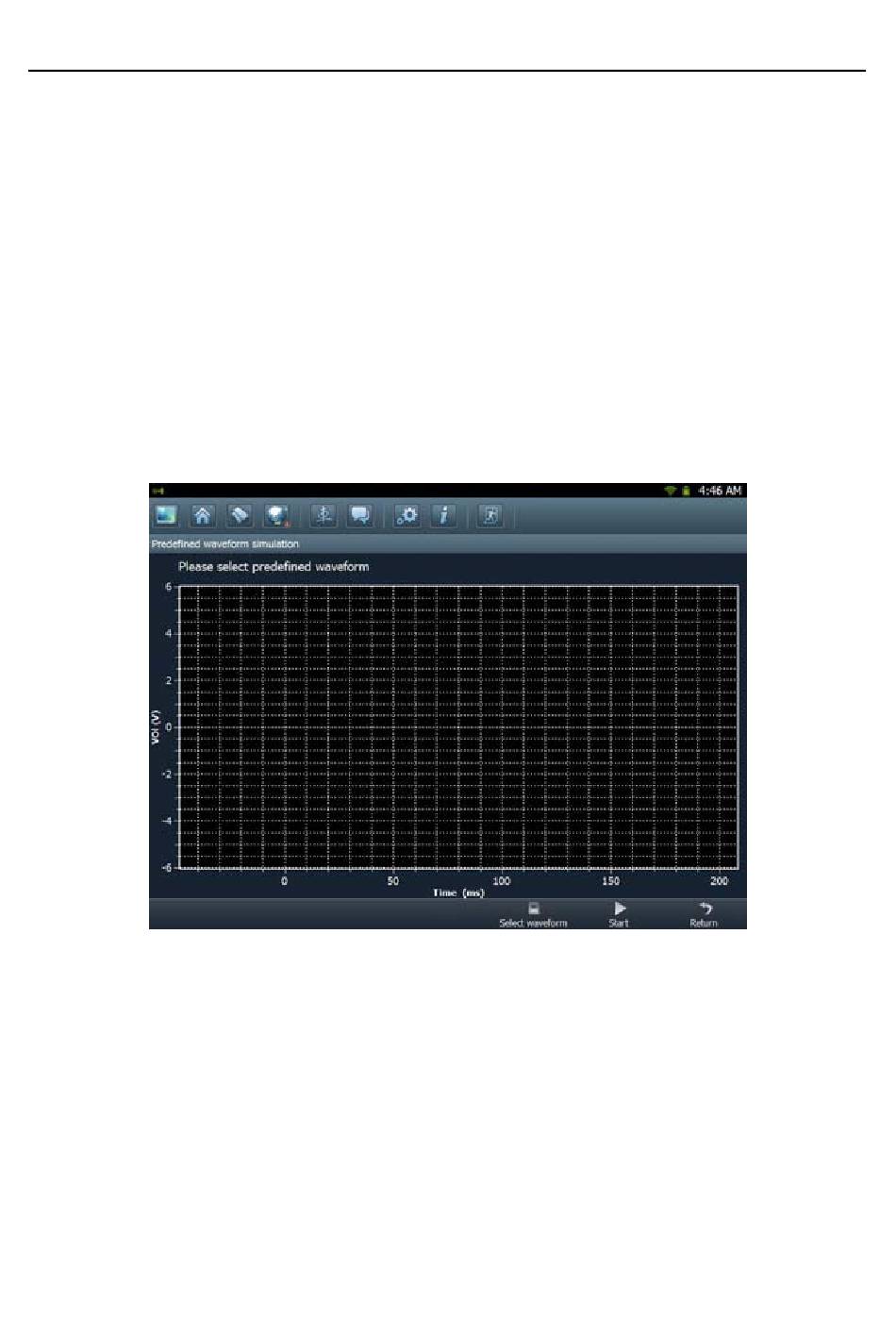

Fig.3-4
Here, click [Select waveform] button, a screen similar to Fig. 3-5 will appear.
