X-431 PAD Sensorbox User's Manual

3.2.4 Hand-painted waveform simulation

This option offers great convenience for users to simulate special waveform or
fault wave. Users only draw the shape of waveform which needs to be simulated
in left drawing area, and then configure some parameters on the bottom, namely
high level, low level, and cycle of waveform, then click [Start], X-431 PAD will
output a waveform as desired.
Warning: Just draw a complete periodic waveform (when it is outputted, the
system will regard the waveform in the drawing area as a periodic one). Users
should draw an as large as wave in drawing zone so that the system can sample
more points to reduce tolerance. While drawing, just pay attention to the shape
of waveform, high level, low level and period can be ignored, which can be set in
the Configure option.

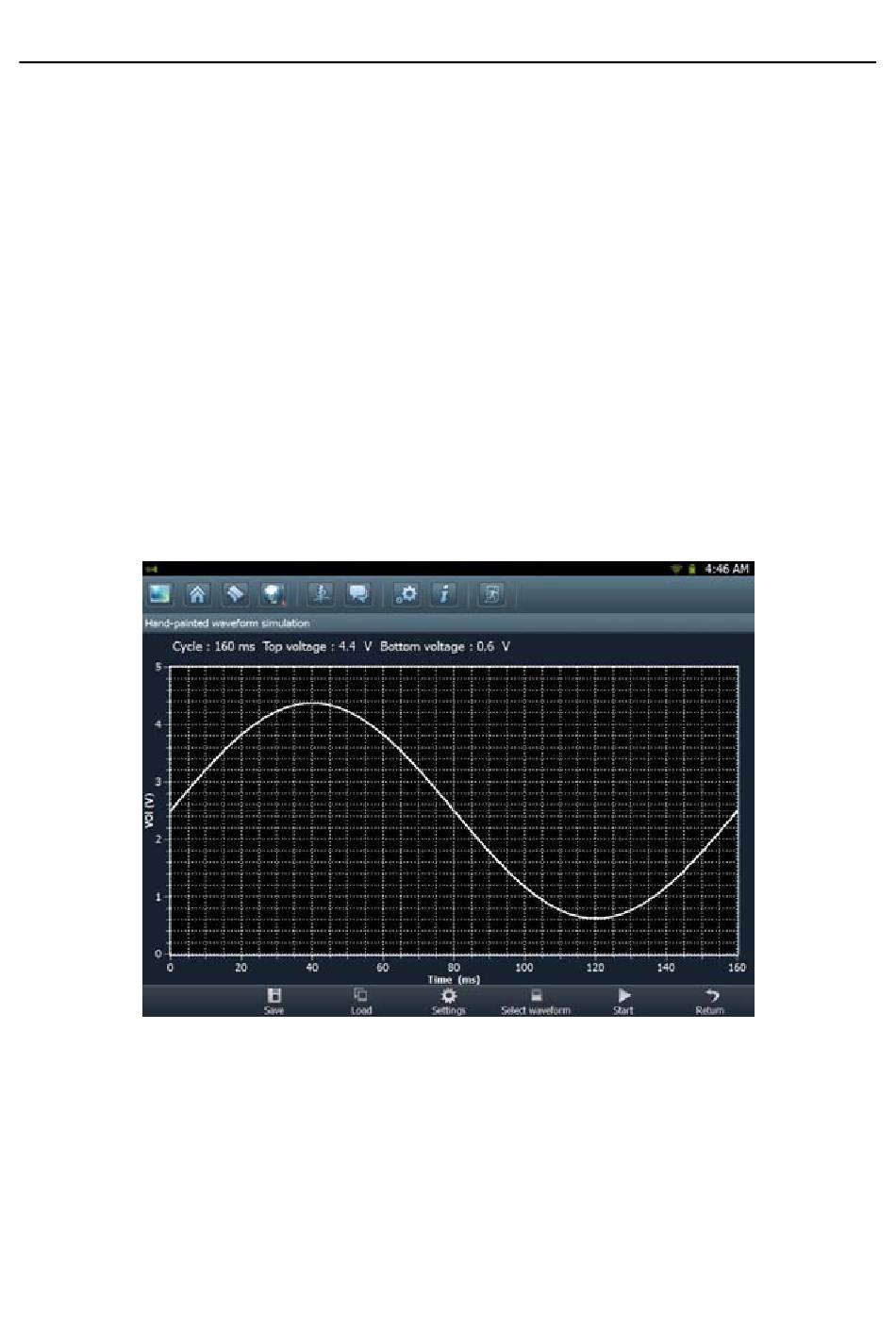

In Fig. 3-1, click "Hand-painted waveform simulation", a screen similar to Fig.
3-8 will appear.
Fig.3-8
Button descriptions:
[Save]: save the current waveform.
[Load]: loads the previously saved hand-drawn waveform.
[Settings]: sets the parameters of cycle, high level and low level.
[Select waveform]: click to call out the predefined waveform for reference.
[Start]: continues the following operation.
